Paper Lunch Box Making Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Machinery & Hardware
Packaging Type	Cartons, Film	Packaging Material	Paper, Other, Paper, hard paper, grey paper board
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V	Power	11KW
Place of Origin	China	Brand Name	YINGHE
Model Number	YH-1320/YH-1500	Weight	14.5T / 16T
Dimension(LWH)	4200x2300x2250mm	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Easy and safe to operate, low cost, high speed, thick paper board die-cutting, grey paper board die cutting and creasing machine

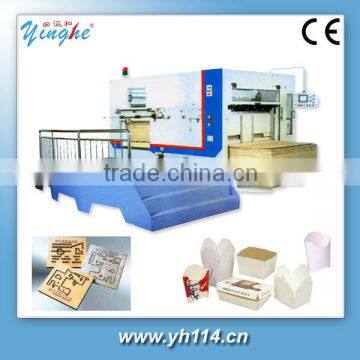

YH-1320/1500 Semi-automatic Die-Cutting and Creasing Machine

Structure features
(1)YH series semi-automatic die-cutting and creasing machine is special equipment applying to die-cutting of advanced colored boxes made of paper.
(2)The machine combines several advantages over many other die-cutters both at domestic and oversea. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.
(3)Frontal, back and side registration machanism ensures great precision of die-cutting.
(4)Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.
(5)The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting.
(6)Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors and safe-ensuring devices to guarantee the safety to operator and of environment.
(7)Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by hand. It can also realize die cutting without clipper margin.
Technical parameters
Product model	YH-1320	YH-1500
Max paper size	1320×1030mm	1500×1600mm
Min paper size	550×500mm	550×500mm
Max die-cutting size	1300×1000mm	1495×1045mm
Max die-cutting pressure	300N/cm2
Paper processed(corrugated paper)	8mm(max.thickness)
Paper processed(paper board)	200-2000g/m2
Max die-cutting speed	4000 sheets/hour
Max feeding pile height	1400mm(above the level)
Max delivery pile height	1200mm(above the level)
Total power	13.5kw
Weight	14.5T	16T
Dimensions	4000×2250×2250mm	4200×2300×2250mm
