Luoyang Square Riveting Molybdenum Boat Price for Vacuum Thermal Evaporation Air

FOB Price

US$ 10 - 35 / Piece

1 Piece(Min. Order)

Port Tianjin/Qingdao/ (negotiable)
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	BLESS
Model Number	Mo1 Mo2		Dimensions	Customizable

Product Description

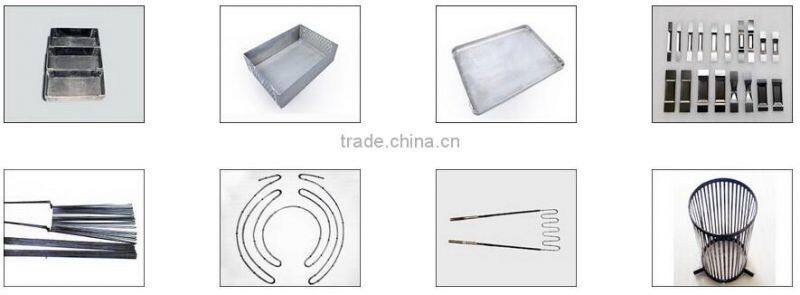

Main Products

Top Grade Tungsten Iridium Spout

Top Grade Tungsten Sputtering Rotary Target

Top Grade Tungsten/ Molybdenum Boat

Top Grade Tungsten/ Molybdenum Crucible

Top Grade Tungsten/ Molybdenum Boat

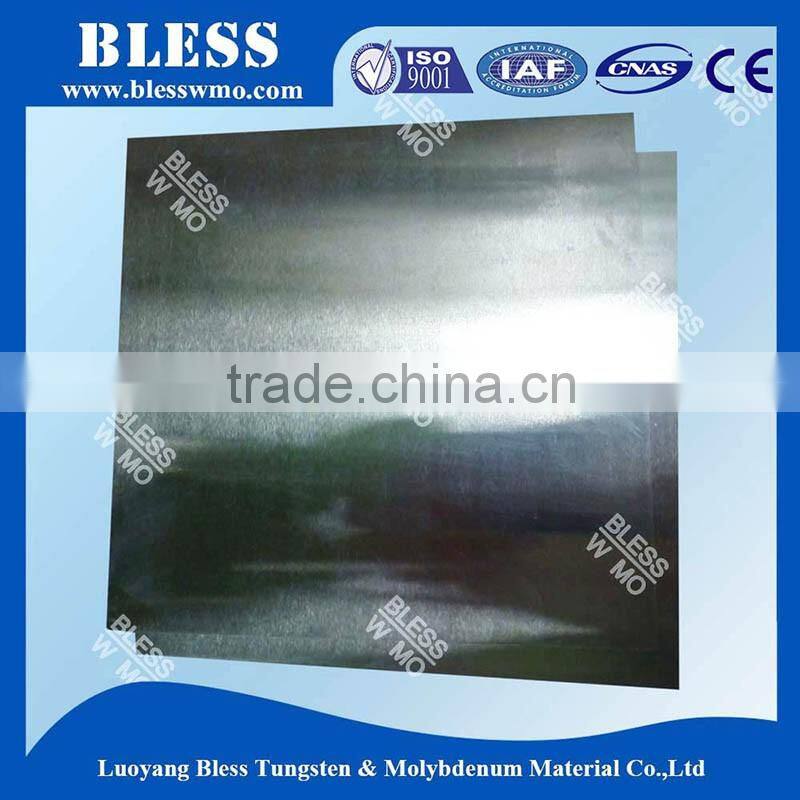

Top Grade Tungsten/Molybdenum Sheet

Top Grade Tungsten Rotary Target

Top Grade Sapphire Growth

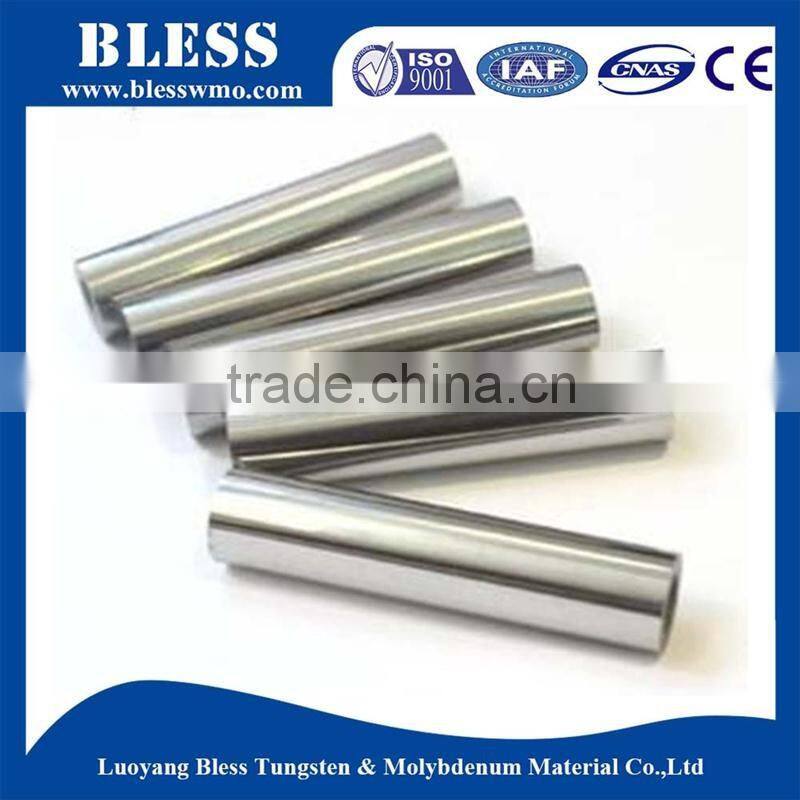

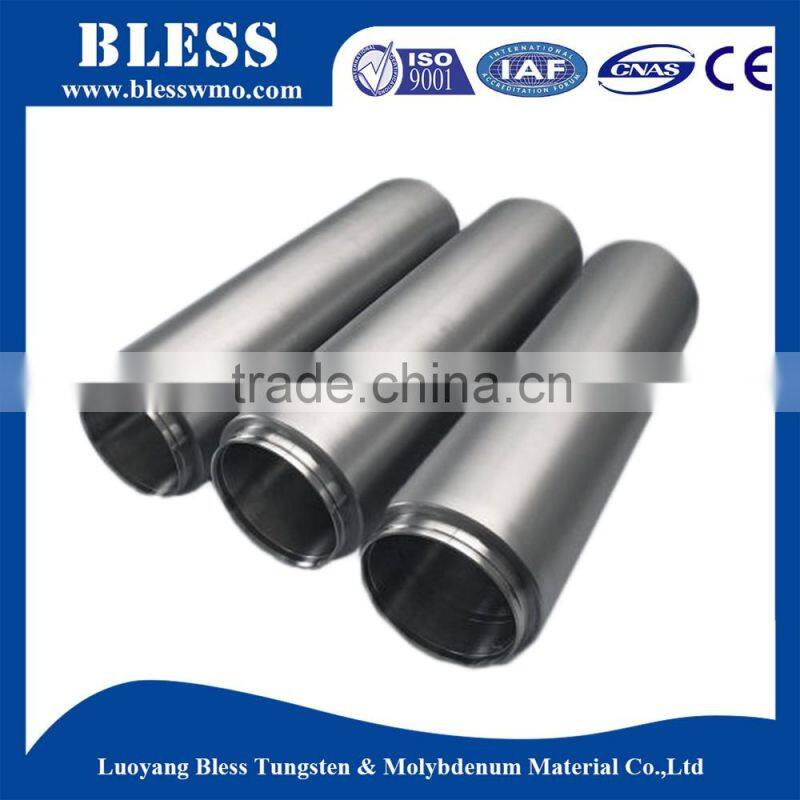

Top Grade Tungsten/Molybdenum Tube/ Pipe

Product Introduction

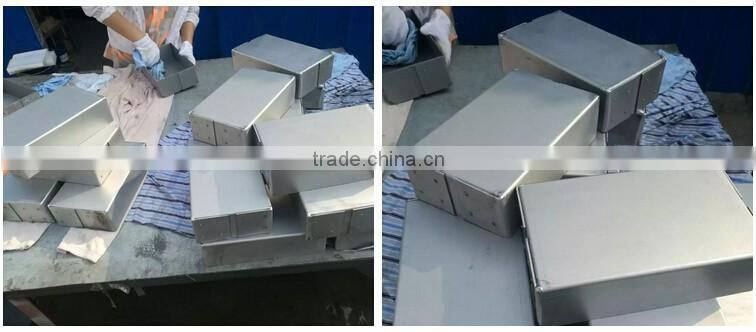

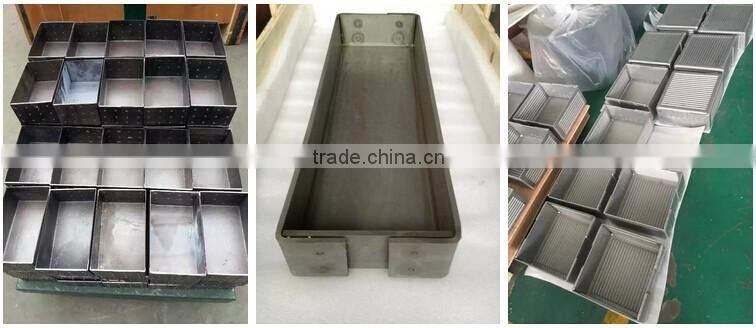

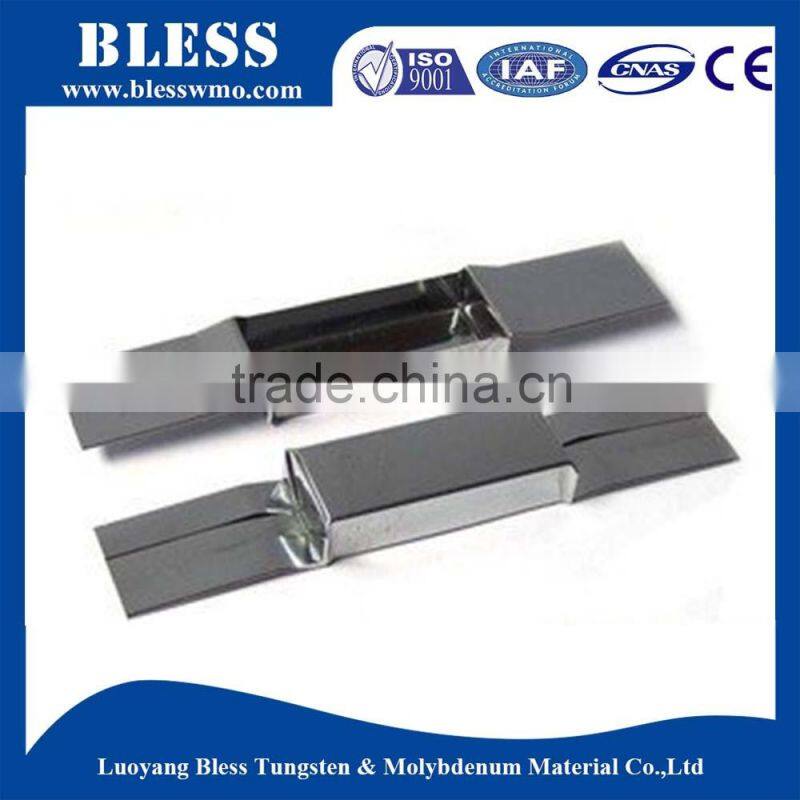

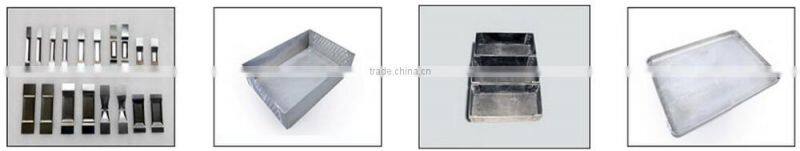

Molybdenum Boat

Introduction:

Molybdenum boats are made after processing molybdenum plates with cutting, folding, riveting and welding. The boat shapes can be molded according to customers' requirements, including round, rectangular, square, and trapezoidal and so on. Molybdenum boats own properties of source material – pure molybdenum, or molybdenum alloy.

Molybdenum boats are widely used in the vacuum thermal evaporation air, the capacitor's sinter, the nuclear fuel's sinter, rare earth industry, and so on. During sintering of other elements, molybdenum boats will not be dissolved, because the melting point of molybdenum boats is much higher than other chemical elements. Molybdenum boats are also used as carrying boats and related parts of high-temperature furnace of machines.

Application

1)Metallizing, Electron-beam Spraying ,sinteting annealing in reducing atmosphere in electronics.

2)Military and light industries

3)Evaporate small lengths of wire or to evaporate materials.

3)Molybdenum boat is ideal for use in small evaporation systems.

4)Molybdenum boats sources are used for the vacuum evaporation of materials.

Process:

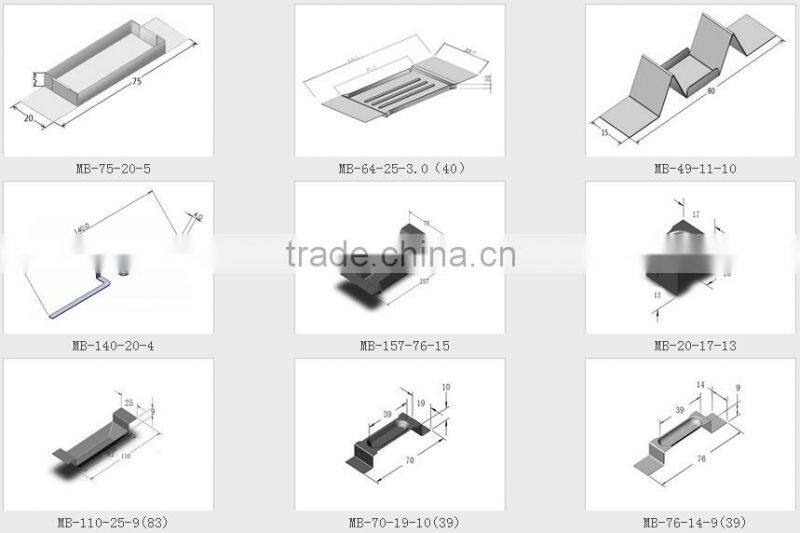

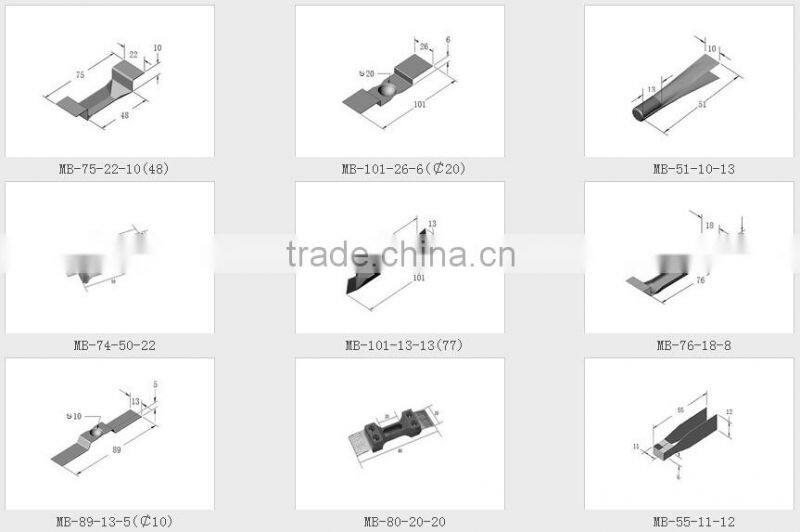

Type

Atomic number	42
CAS number	7439-98-7
Atomic mass	95.94
Melting point	2 620 °C
Boiling point	5 560 °C
Atomic volume	0.0153 [nm3]
Density at 20 °C	10.22 [g/cm3]
Crystal structure	body-centered cubic
Lattice constant	0.3147 [nm]
Abundance in the Earth's crust	1.2 [g/t]

Grade		Mo-1	Mo-2	Mo-3
Mo(%)≥		99.95	99.95	99.92
Other Element Cont (%)≤	Pb			0.001
	Bi			0.001
	Sn			0.001
	Sd			0.001
	Cd			0.001
	Fe	0.005	0.006	0.030
	Ni	0.002	0.001	0.005
	Al	0.002	0.002	0.005
	Si	0.003	0.001	0.010
	Ca	0.002	0.002	0.004
	Mg	0.001	0.001	0.003
	P	0.001	0.001	0.002
	C	0.005	0.003	0.010
	O	0.003	0.005	0.008
	N	0.001	0.001
Use for example		Drawing Molybdenum wire	Spraying Molybdenum wires	High Temperature Components

Our Company

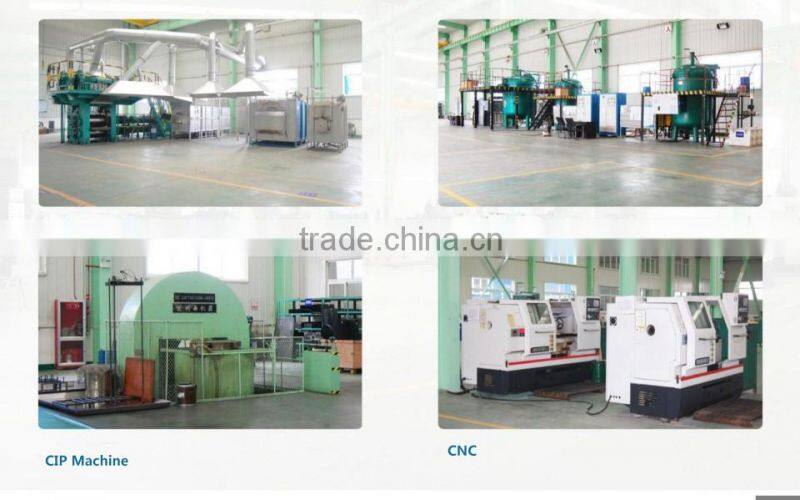

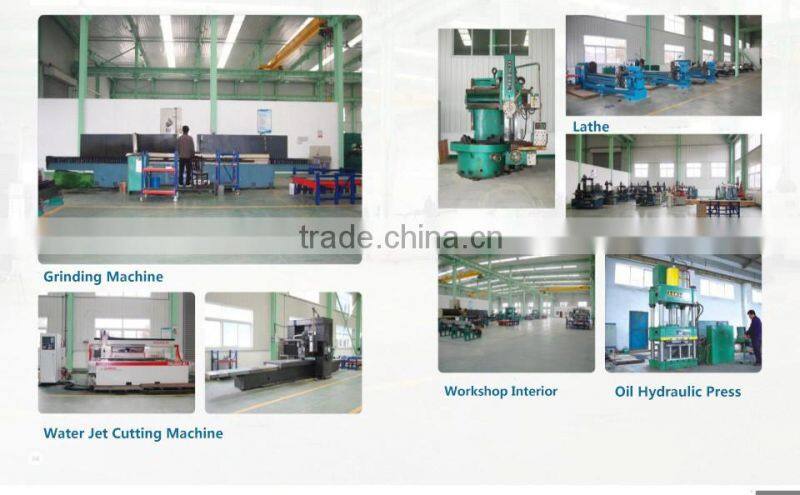

WORKSHOP

Why Choose Us

Quality Control

1. Quality control and inspection is our Bless strict and indispensable part on the production. Quality is our culture!

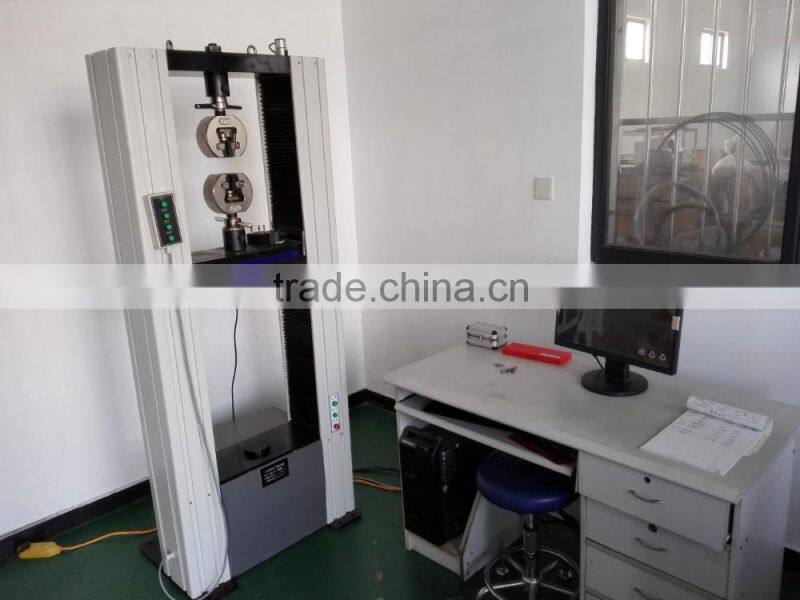

Equipment & technology

2. Bless Advantage--Logistice Service

We have a logistics company partner for many years, so offering best service with competitive price is what we pursue.

Service

3. Our Bless every workers are responsible for the product worked well on production line and we offered conscientious and thoughtful after-sale service

Product Packing

Certifications

CQC

ISO9001-2008

SGS

FAQ

1) Q: Do you accpect customized products?

A: Yes, we can provide customized products according to your drawing and requirement.

2) Q: What's your advantage or differences from others?

A: We have confidence in saving much shipping cost for customers, since we go in with a logistics company for many years.

3) Q: Do you inspect the finishing products?

A: Yes, each product will be inspected by our QC before shipping.

4) Q: Do you have discount for the price?

A: The larger your order, you will get more preferential price.

5) Q: Do you have QC process?

A: Yes, we have a quality control department.

6) Q: Can I have a free sample before placing order?

A: If the standard items, with in stock, No problem, we can send 3 ~ 5 pcs for your testing approval;

if a special request of item, supposed a new mould, we will charge a certain deposit and it can be refundable.
