Agricultural machinery PV hydraulic pump for sale
- 1000 Set / Sets per Month
- Qingdao
You May Like
-
Factory price wheel loader PV hydraulic pump
-
Short delivery time hand operated hydraulic pumps
-
Highland PV22 hydraulic pump for cane harvester
-
Highland PV23 hydraulic pump for corn harvester
-
Highland PV hydraulic pump for agricultural machinery
-
Factory manufacturer agricultural machinery PV hydraulic pump
Product Details
| Place of Origin | Shandong, China | Brand Name | Highland hydraulic pump | |
| Model Number | PV21 hydraulic pump | Theory | Rotary Pump | |
| Structure | Piston Pump | Usage | Oil | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Other, Oil | Pressure | High Pressure | |
| Application | Other, Hydraulic pump, Hydaulic pump |
Wooden case for hydraulic pump
Product Description

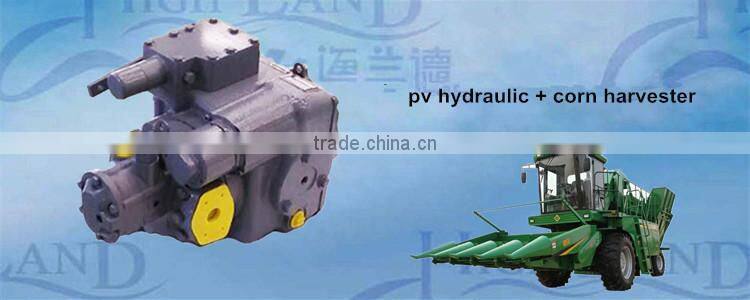

Agricultural machinery PV hydraulic pump for sale
Agricultural machinery PV hydraulic pump for sale
This product is 20 series hydraulic transmission system introduced form American company. It is closed hydraulic system made
up of axial hydraulic pump and motor. The pump is variable pump with charge pump and motor is fixed-displacement or
variable- displacement motor with valve assy. The control way of changing displacement includes MDC, HDC, and EDC which
can efficiently control discharge, direction and power of the output oil. The hydraulic transmission system made up of this series
of pump and motor has features of wide work range, reliable working state, easy operation and can be widely used on the
hydraulic apparatus of engineering machine, agricultural machine, mine machine, aviation and transport machine.
Technical Parameters
Model | Max. Displacement(ml/r) | Torque at 10Mpa(N.m) | Out power(at 10Mpa 1500r/min)(kw) | Charge Pump Displacement(ml/r) | Max. Speed(r/min) |
21 | 51.6 | 84.1 | 12.7 | 12.3 | 3000 |
22 | 69.8 | 114.2 | 17.2 | ||
23 | 89.0 | 144.3 | 21.9 | 2800 |
Components Weight Chart
| Model | Variable Pump | Variable Displacement Motor | Fixed Displacement Motor |
21 | 53.52 | 58.51 | 34.47 |
22 | 61.24 | 66.23 | 39.92 |
23 | 78.47 | 83.46 | 47.17 |
Packaging:
Wooden cases package in container, suitable for long distance transportation;
According to costomers' requirements.
Shipping:
By sea;
By air;
According to your request.
We could produce 20 series pump and motor with lower price and highly quality .
Delivery time : within 10 days after payment.
Warranty : one year .
If you have specific requests we can meet your requests , because we can design and produce
Hydraulic Comprehensive Testing Table .
Product Catalog:
American:PV21/21/22/23 series,PV90 series
Germany:A4VSO,A4VG,A4VTG,A6VM,A7VO,A8V,A10VSO,A11V series
Japan:K3V series
Excavator series:PC60/200
HPV series
If any products interest you,please don't hesitate to send us your inquiry,we will give you our best and favourable reply!
Any question,please feel free to contact me.
