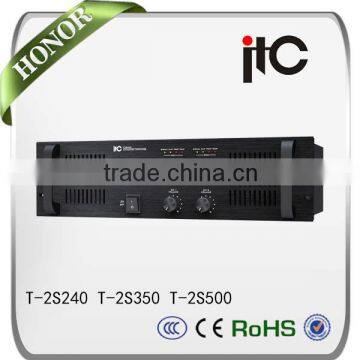

ITC T-2S240 Series 240W 350W 500W 2 Channel Mono Audio Power Amplifier

FOB Price

US$ 360 - 620 / Unit

20 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

ITC T-2S240 Series 240W 350W 500W 2 Channel Mono Audio Power Amplifier

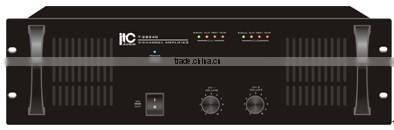

Appearance

ITC T-2S240 Series 240W 350W 500W 2 Channel Mono Audio Power Amplifier

Application

ITC T-2S240 Series 240W 350W 500W 2 Channel Mono Audio Power Amplifier

1) 2 Channel Small Power Post-class amplifier

2) To do sound reinforce for PA system; Suitable for PA system which needs multiple post-class amplifiers

Feature

ITC T-2S240 Series 240W 350W 500W 2 Channel Mono Audio Power Amplifier

1) Rack mount design in 3U

2) 2 unbalanced Line input in type of TRS, and 2 unbalanced Line output in type of TRS

3) 2 balanced Line input in type of XLR, and 2 balanced Line input in type of XLR

4) 2 channel has individual volume control

5) With switcher for ground wire suspension; When multiple devices are connected, the switcher help to avoid noise from ground loop

6) With complete protection circuit for short, overload, over-heat, etc

7) 2 modes of power output: constant voltage output at 100V or 70V; constant impedance output at 4 to 16 ohm

8) Power supply at DC 24V is also allowed

Specification

ITC T-2S240 Series 240W 350W 500W 2 Channel Mono Audio Power Amplifier

Model	T-2S240	T-2S350	T-2S500
Rated Power Output	2x240W	2x350W	2x500W
Speaker Outputs	70V, 100V & 4~16 ohm
Input Sensitivity & Impedance	±385mV/20KΩ, Balanced XLR Input 775mv/10KΩ, Unbalanced TRS Input
Output Sensitivity & Impedance	±385mvV/470Ω, Balanced XLR output 775mv/470Ω, Unbalanced TRS output
Electric Potential of Overload	>15dB
Frequency Response	50Hz~16KHz (+1dB, -3dB)
S/N Ratio	>90dB
THD	Less than 0.1% at 1KHz, 1/3 rated power
Crosstalk	<50dB
Cooling	Temp. ≥55℃, the Fan Starts Auto.
Protection	Short, over-heat, overload, etc
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	720W	1000W	1500W
Weight	16.58 Kg	19.50Kg	22.82Kg
Dimensions	484x359x88mm
Material	Panel: Aluminum Alloy, black Case: Stainless Steel, black
