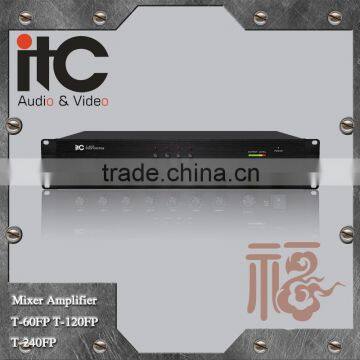

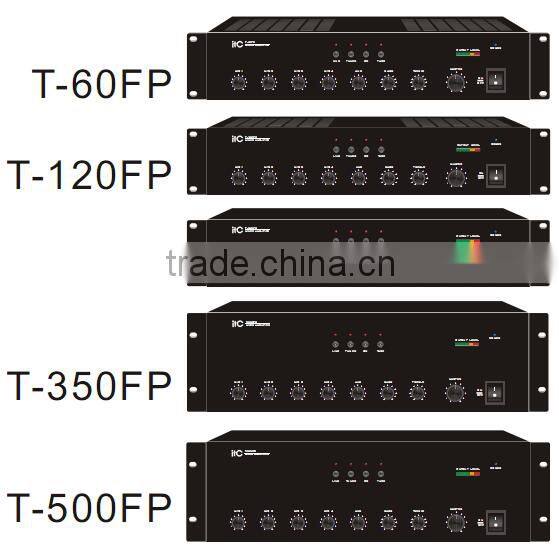

This series is mixer public address amplifier. The rated power is 60W, 120W and 240W so that it could meet the demand of small to medium scale public address system. The priority of Mic 1/2/3/4 input is higher than other audio input. It’s with 2 kinds of speaker output: 1 constant voltage output at 50V, 70V or 100V; 2 constant impedance output at 4 to 16 ohm. Therefore, it could work with constant voltage speaker and constant impedance speaker. What’s more, each input has independent volume control, and total volume control is available. At the mean time, input signal indicator of 6 level is available. Last but not the least, it’s with complete protection function, including over-heat, over-load, short, etc. And it’s with excellent fan to ensure high efficient cooling and quiet working state.

ITC FP Series Having Priority Function Audio Public Address Amplifier

1) Rated Power: 60W, 120W, 240W, 350W and 500W;
2) Power supply of both AC 110V/230V and DC 24V are available;
3) Each input has independent volume control and treble/bass control; total volume control is available;
4) With 4 AUX input and locking button is provided to avoid mixing;
5) 4 Mic input is in type of balanced XLR; priority switcher and phantom power are provided;
6) With electronic level indicator for output;

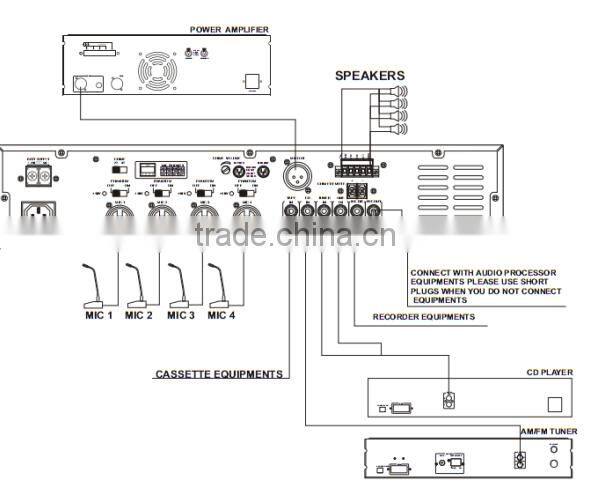

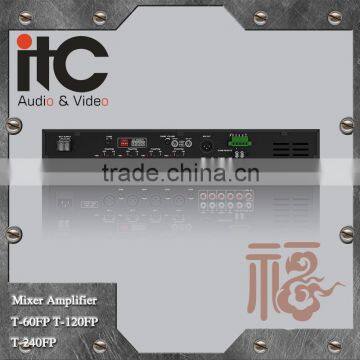

7) With XLR balanced Line output for external power amplifier; with REC output for recorder; with Pre-Output and Amp-Output for external audio signal processor;
8) With 2 kinds of speaker output: 1 constant voltage output at 70V or 100V; 2 constant impedance output at 4 to 16 ohm;
9) Built-in chime of 2 or 4 tone;
10) With complete protection function, including over-heat, short, over-load, peak clipping, etc.

ITC FP Series Having Priority Function Audio Public Address Amplifier

1) DC 24V;
2) The handle could be removed, according to the demand of clients;
3) Detection module which could output short signal to activate backup amplifier.
