Home > Products > HDMI Switch > HDMI Switch 3x1 With Manual Switch for Hotel Use

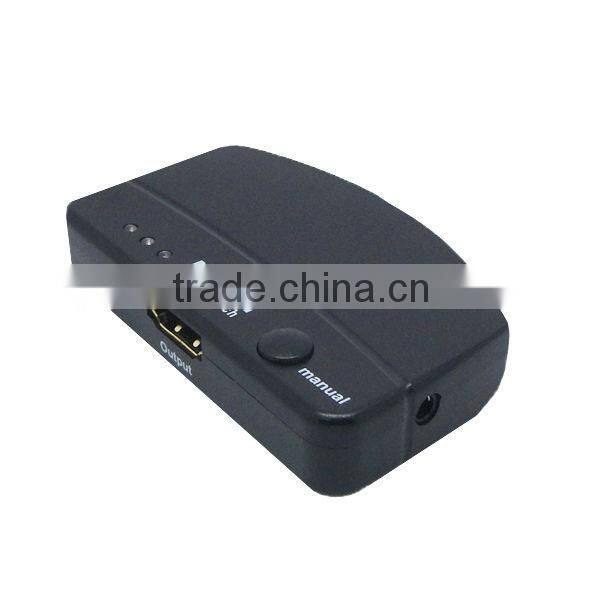

HDMI Switch 3x1 With Manual Switch for Hotel Use
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | OEM | Model Number | HY-3301-V0-D | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
HDMI switch 3x1 with manual switch for hotel use1. 3 in put 1 out put
2. HDCP
3. 1080P 3D support
4. OEM service availabl
HDMI switch 3x1 with manual switch for hotel use
The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink. The Switcher allows three HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Three HDMI input signals switched to a single HDMI sink devices
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length

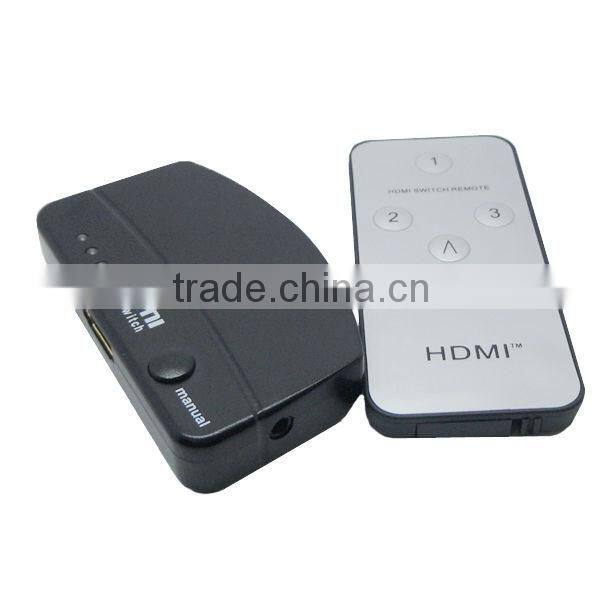

Inputs can be switched with the IR remote control,also can be controlled by button.
It can smartly jump over those input sources which are not connected.
No loss of quality
Installs in minutes
Signal Inputs/Output
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920X1200, 1080P
Output Video: HDMI 1.3b + HDCP 1.0/1.1
Video format supported:DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance: HDMI 1.3b
Operating Frequency
Video Amplifier Bandwidth: 2.5Gpbs/250MHz
Vertical Frequency Range: 50/60Hz
Resolutions(HDTV)
Interlaced(50&60Hz): 480i,576i,1080i
Progressive(50&60Hz): 480p,576p,720p,1080p
Warranty
Limited Warranty: 1 Year Parts and Labor
Environmental
Operating Temperature: 0 °C to +70°C
Operating Humidity: 10% to 85 % RH (no condensation)
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply: No power needed
Regulatory Approvals
Converter Unit: FCC,CE,UL
Power Supply: UL,CE,FCC
Accessories Adapter
AC Power Adapter: US standard, UK standard and so on
User Manual
