CNC automatic rebar cutting and bending machine

Condition	New		Place of Origin	Jiangsu, China
Brand Name	Hongfan		Model Number	DW38CNC
Machine Type	Pipe and Tube Bending Machine		Raw Material	Steel Bar
Material / Metal Processed	Stainless Steel		Power	Cnc
Automation	Automatic		Extra Services	Machining
Certification	Other, CE, CE and ISO9001		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

CNC rebar bending machine
1) Japan Yuken system
2) Japan Mitsubishi servo motor
3) Touch screen
4) CE,ISO9001

    CNC automatic rebar cutting and bending machine



Our company:

     We are speciallzed in pipe bending machine,pipe ending forming machine, pipe rolling machine,pipe cutting machine and pipe chamfering machine. Our products are wildly used for automative industry, shipbuilding industry, the boiler industry,fitness equipment ,bicycles ,electric cars,motorcycles ,furniture industry and so on.



Main parameter:









Specification/Model		1.DW38CNCX2A-1S 2.DW38CNCX3A-1S
Max bending capability		Φ38mm×2mm
Max bending radius (1)		R180mm
Min bending radius (2)		According to diameter
Max bending angle		190°
Max feeding length (3)		2500mm
Feeding method		Direct feeding
		Clamping feeding
Working speed	Bending speed	Max 150°/s
	Rotary speed	Max 200°/s
	Feeding speed	Max 1000mm/s
Working accuracy	Bending accuary	±0.1°
	Rotary accuary	±0.1°
	Feeding accuary	±0.1mm
Information input method		1.Coordinate(X . Y. Z) ing value(Y. B. C)
Bending method		1.Servo bending:5kw(more than 3 axis) 2. Hydraulic bending
Rotary sereo motor power		750w
Feeding sereo motor power		1kw
Max bending groups		1. 16(PLC) 2. 33( Industry Computer)
Max storable sections		1. 1000(PLC) 2. 2 million(Induetry Computer)
Motor power		4kw
Oil pressure		12Mpa
Machine size		3860 x 720 x 1230mm
Machine weight		1500kg



Features:

CNC rebar bending machine



1.Electric control system: adopts famous controller in Japan, for example, the servo driver,servo motor, location mould group, CPU ad so on . From Mitsubishi Clubs or Yasukawa, which is of high capability and excellent steadiness.



2.Extra large CPU of Mitsubishi can store 400 groups of file editions. When the storage space is inadequate, transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely.



3.WINDOWS operating system is installed in the industrial computer to match with Mitsubishi servo motor system. Therefore , apart from advantage of Mitsubishi servo driver, it owns the convenience of file management of WINDOWS operating system. It can also store the files in hadrware or disk to indefinitely expand edition groups(optional).



4.Function of automatically detecting error and fault, which is displayed on the screen for operators to cancel the fault easily.



5.All the process document are inputted by touch control screen.



6.Each bending tube can set compensation value, speed and gap between stripping according to the variety of  different material.



7.Every bending of the tube can set separately compiles 5 move orders, 10 speed matched for operators' use. It will improve working efficiency and decrease interfere points of tube pieces.



8.Touch control screen can transform between Chinese and English. Display of other language.



9.Material feeding way can be selected in straight  or clip feed according to different needs.



10.XYZ coordinate can be automatically changed into YBC process value.



11.Document are protected by key to prevent them from being amended by random.



12.Electric system is matched with heat exchanger for automatic cooling. You can also select numerical control air conditioner to maintain the use life of electric system.



13.It is equipment with automatic  adding oil system to decrease friction between bending tubes, prolong use life of mandrel and guarantee the quality of bending tubes(optional).



14.The document displayed on the screen  can be printed by connecting a printer.



15.On the machine stage can be added with communications interface and data machine, it is connected to Hongfan Cooperation by telephone lines for remote control of engineer to Real-time, monitoring , software updating , troubleshooting  and so on(optional).



16.The position of material entrance, safety, input mould interfere and conduct module interfere of material  feed trolley can be set by hand and automatically memorized to cancel man measurement error and lose of machine collision.



17.Material feed axis will automatically detect itself before its operation to avoid the clash with machine.



18.Decomposition action can be collected at the time of actual bending so as to observe interfere points, amend movement and improve efficiency.



Inquiries are welcome at any time.

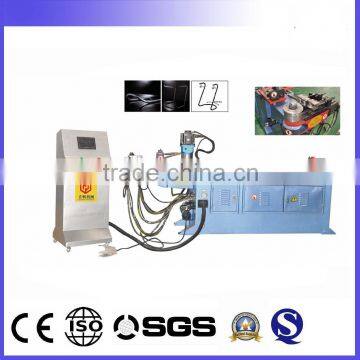

Photots of machine:
