Home > Products > CNC Machining Center > VMC7032A Cnc Vertical Machine Center
VMC7032A Cnc Vertical Machine Center
- Qingdao for VMC7032A cnc vertical machine center
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Shandong, China | Brand Name | llinuo | |
| Model Number | VMC7032A | Voltage | 380V | |
| Power(W) | 5.5kw | Dimension(L*W*H) | 2250*1750*2350mm | |
| Weight | 2350kg | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VMC7032A cnc vertical machine center
Product Description for VMC7032A cnc vertical machine center
The machine advantage:
1. SIEMENS CNC system
2. Taiwan BT40 spindle unit with pressurized cylinder
3. Taiwan umbrella-type tool magazine with 12 tools
4. High-precision ball screw
5. Automatic intermittent lubrication system
6. Totally enclosed work space ensures maximum safety and flexibility
Technical parameters
Type | VMC7032A |
Table size | 800X320mm |
(X/Y/Z) Axis travel | 610X320X400mm |
Max table load | 400kg |
T-slot size | 3*14*24mm |
T-slot Distance | 100mm |
Spindle taper | BT40 |
Spindle to guide | 376mm |
Distance of spindle head to table | 130-550mm |
Spindle speed | 80-8000rpm |
Power of main motor | 3.7/5.5kw |
Spindle driver | Belt transmision |
Positioning accuracy | 0.02mm |
Repeatability | 0.01mm |
Power XYZ | X:1.2 Y/Z:1.6 KW |
Rapid feed of X/Y/Z | 10000mm/min |
Cutting feed of X/Y/Z | 6000mm/min |
X/Y/Z Unit | 0.001mm |
ATC type | Hat 12T |
Air pressure | 6kg/cm ² |
Net weight | 2350kg |
Overall dimensions | 2250×1750×2350mm |
Power | 15kva |

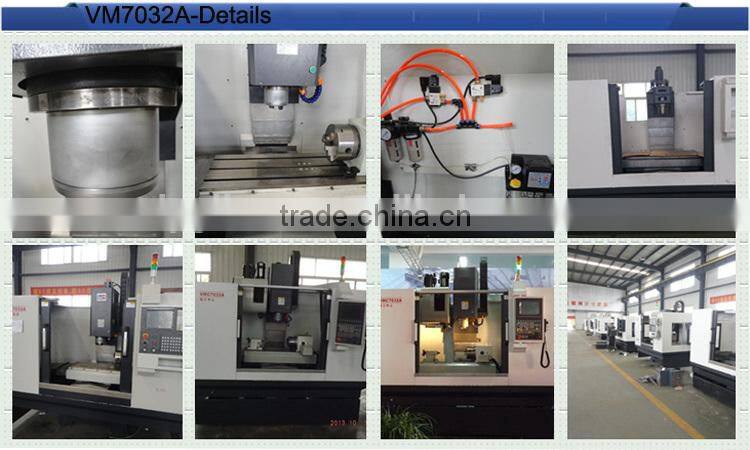

Production&Workshop for VMC7032A cnc vertical machine center
Customer&Expo for VMC7032A cnc vertical machine center
Companny information for VMC7032A cnc vertical machine center
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for VMC7032A cnc vertical machine center
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
