Home > Products > CNC Lathe Machine > CK6125A Small Cnc Lathe Machine
CK6125A Small Cnc Lathe Machine
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 250mm | Place of Origin | Jiangsu, China | |
| Brand Name | linuo | Model Number | CK6125A | |
| Voltage | 380V | Power(W) | 3kw | |
| Dimension(L*W*H) | 1480*800*1600mm | Weight | 1000kg | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CK6125A small cnc lathe machine
Product Description for CK6125A small cnc lathe machine
Item | Unit | Specifications | |
CK6125A | CK6130A | ||
Max. rotation diameter over bed | mm | Φ300 | |
Max. rotation diameter over pallet | mm | Φ100 | |
Max. workpiece length | mm | Collet 320/Chuck240 |
Collet 400/Chuck320 |
Spindle head form |
| A2-5 | |
Spindle bore | mm | Φ48 | |
Trombone hole diameter | mm | Φ40 | |
X/Z repeat positioning accuracy | mm | 0.012/0.013 | |
X/Z maximum stroke | mm | 280/350 | 280/400 |
X/Zfast-moving feed | mm/min | 5000/10000 | |
Spindle speed range | r/min | 150-2200 | |
Tailstock quill taper |
| MT4 | |
Tailstock quill stroke | mm | 90 | 100 |
Main motor power | kw | 3 | |
Overall dimensions (L*W*H) | mm | 1650×1150×1500 | 1770×1200×1600 |
Net weight | kg | 1000 | 1220 |

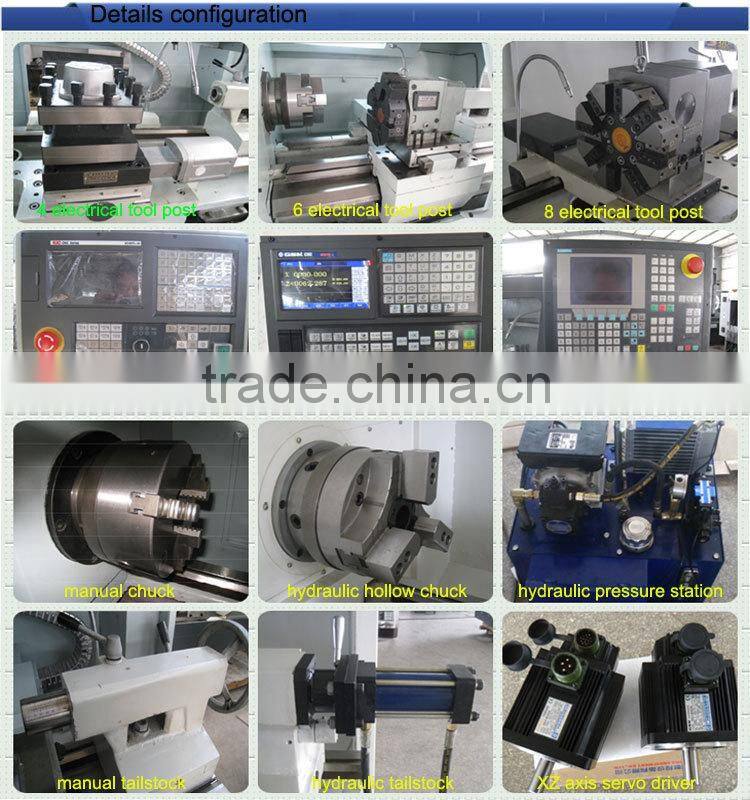

Standard Accessories | Optional Accessories |
GSK system | Siemens/Fanuc/GSK/KND etc |
Pneumatic spring Clip | Manual chuck Pneumatic chuck or Hydraulic chuck |
gang-type tool carrier(2pieces) | 4-station turret |
Lubrication pump(automatic) | Pneumatic tailstock, Hydraulic tailstock |
Work light Tool box | |
Voltage:3 phase 380v 50HZ if need to change, contact with me ahead of time. | Automatic feeding |
User’s manual operational manual | Other as requirements |

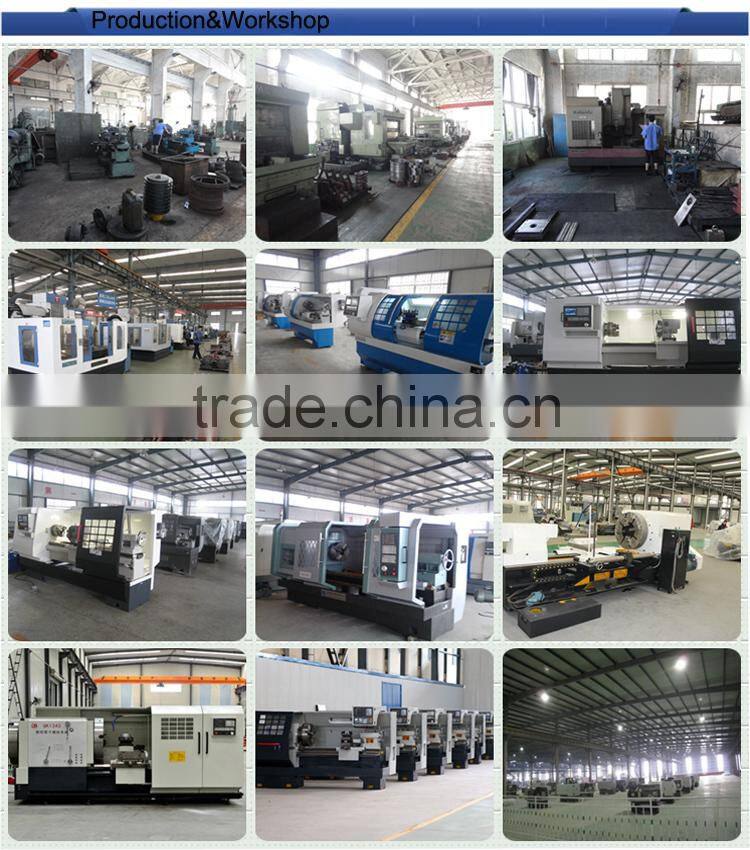

Production&Workshop for CK6125A small cnc lathe machine

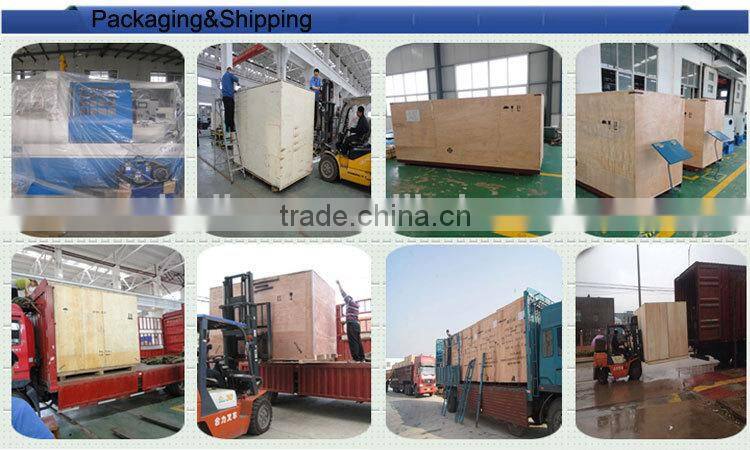

Packaging&Shipping for CK6125A small cnc lathe machine
Customer&Expo for CK6125A small cnc lathe machine
Our services for CK6125A small cnc lathe machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
