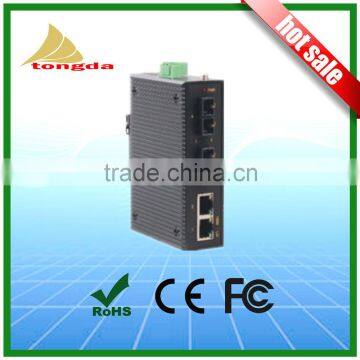

4 Port Din-mount 100Base Hardened Unmanaged Industrial network switch

4 Port Din-rail 10/100Base Unmanaged Industrial Ethernet Switch

ATIEN2204

Models

ATIEN2204-2S/M-2T

2×100Base-FX

+2×10/100Base-TX

Physical Ports

10/100Base TX Port

10/100Base-TX Ethernet RJ45

100Base FX Port

Multi mode/Single mode

ST/SC/FC

Communication Distance

Twisted-pair

100m

Fiber optic line

Multi mode: 1310nm, 5Km (100Base)

Single mode: 1310nm, 20Km/40Km (100Base)

             1550nm, 60Km/80Km(100Base)

Power

Power Supply

DC9~36V, DC48V, AC85~265V/DC110~370V

Power consumption

<5W

Overload current protection

Present

Reverse polarity protection

Present

Technology

MAC Table

1K MAC addresses

Ethernet Standard

IEEE802.3,IEEE802.3u,IEEE802.3x

Environmental

Operating temperature

-40°C~85°C

Storage temperature

-45°C~85°C

Operating Humidity

5%~95% non-condensing

LED Indicators

Power indicator

PWR

Port indicator

Link/ACT, Speed (TX)

Link/ACT ( FX)

Physical Characteristics

Enclosure

IP40 protection, Metal case

Size

114mm×33mm×80mm

Weight

0.3kg

Installation

Din-rail/Wall-mounted

Regulatory Approvals

EMI

EN55022 Class A

EMS

EN61000-4-2

Anti-static; ±8KV Contact discharge; ±15KV Air discharge

EN61000-4-3

Electromagnetic field 10V/m (80~1000MHz)

EN61000-4-4

EFT, Power Line: ±4KV ; Date Line: ±2KV

EN61000-4-5

Surge Voltage, Power Line: ±2KV/DM, ±4KV/CM ; Date Line: ±2KV

EN61000-4-6

Antistatic conductive 3V (10KHz~150KHz), 10V (150KHz~80MHz)

IEC68-2-6

Vibration

IEC68-2-27

Shock

IEC68-2-32

Free Fall

Accessories

MDR40-24

Industrial Power Adapter (40W/24V)

MDR20-12

Industrial Power Adapter (20W/12V)

PWRX10-24

Power Adapter (10w/24v)

MW-BGAZ-01

Wall-mounted installation panel

MW-FCZ-RJ45-01

RJ Dust cover
