Mountain Bike Electric Folding Bike XY-EB005F

FOB Price

US$ 350 - 550 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

electric mountain bike electric folding bike
1:36v 10ah lithium battery
2:26" foldable model
3:SHIMANO 6 speeds
4:OEM

XY-EB005F electric mountain bike electric folding bike

Electric system		Main Components
Motor	250W brushless motor	Frame	6061 Aluminum Alloy Foldable
Battery	36V,10Ah Lithium battery	Tyres	26" X 1.75 /1.95 KENDA/CST brand
Charger	AC 100V -230V smart charger	Rim	Al alloy double wall and CNC side wall
PAS	1:1 intelligent pedal assistant system	Front fork	Al alloy suspension fork Topgun brand
Throttle	Twist intelligent speed throttle(optional)	Front brake	Disc brake ZOOM brand
Controller	Intelligent controller (Overload Protect, low voltage protection)	Rear brake	V brake Tektro brand
LED display	Function: Batter power display, PAS1-3 lever, 6KM/H button	Speed gears	SHIMANO 6 speed
Performance		Rear derailleur	SHIMANO TOURNEY 6 speed
Max speed	25km/h	Handlebar	Al alloy
Driving distance	60km-70km with PAS(36v 10ah)	Stem	Al alloy
Recharging time	4-6h	Brake lever	Al alloy with power off switch
Max load	95kg	Chain	Rust resistant chain KMC brand
G.W./N.W.	30KG/26KG	Saddle	Sports saddle
Dimension	148X25X78cm	Seat post	Al alloy
Container capacity	108pcs/20GP,216pcs/40GP	Pedal	Al alloy with reflector
Certification	CE/EN15194 Certification	Lights	LED lights

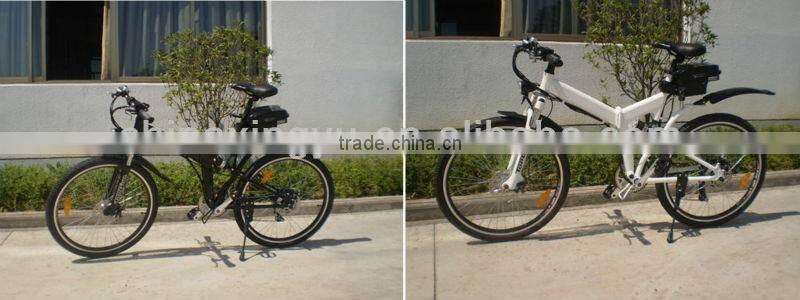

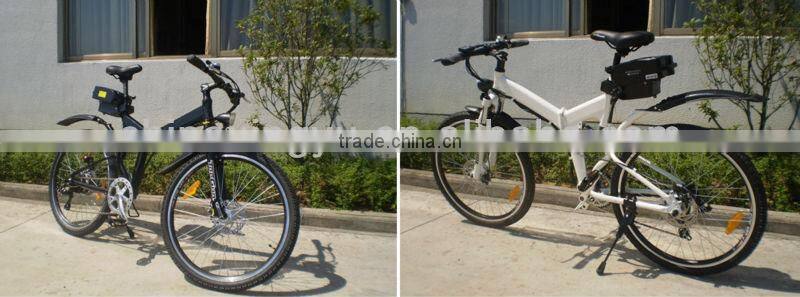

XY-EB005F with 36v 10ah lithium battery and 250w motor in white and black color

XY-EB005F with LED display ( Function: Batter power display, PAS1-3 lever, 6KM/H button )

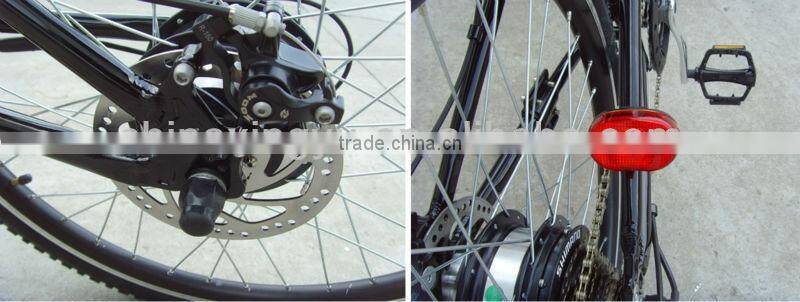

ZOOM disc brake and reflector

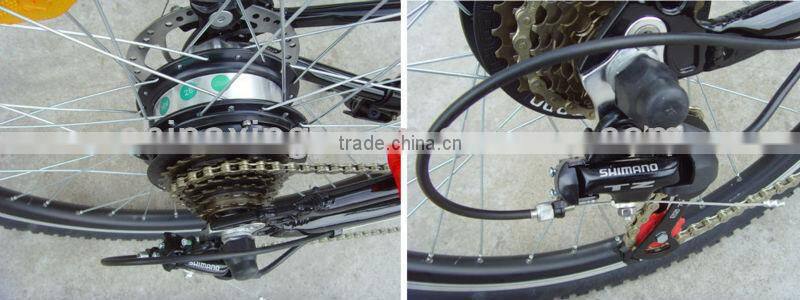

250W rear Motor and SHIMANO 6 speed and derailleur

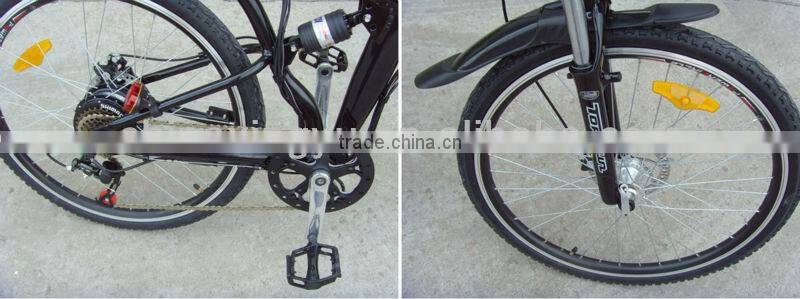

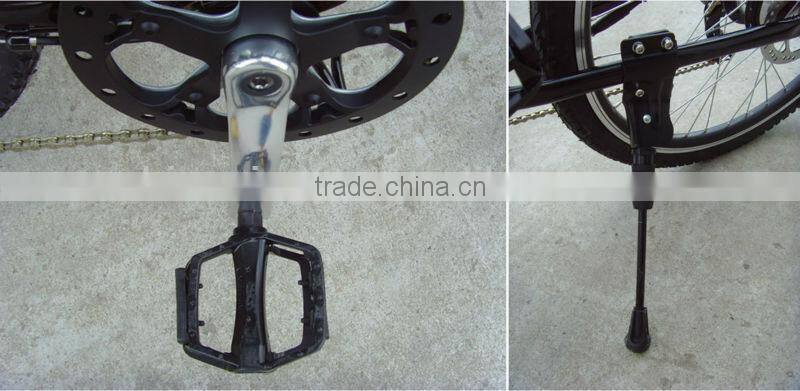

Al alloy pedal and Kickstand

Reflector on tyre, Mudguard and TOPGUN front fork

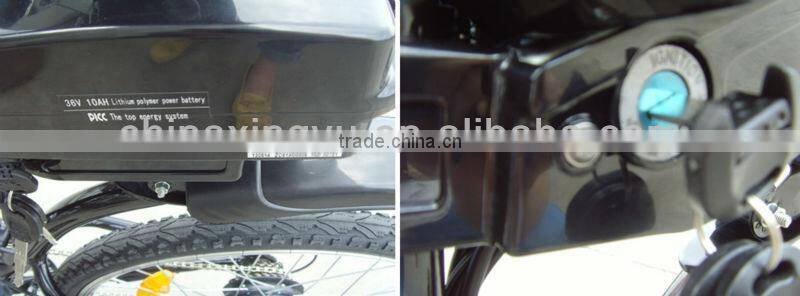

36V 10AH frog lithium battery behind the saddle

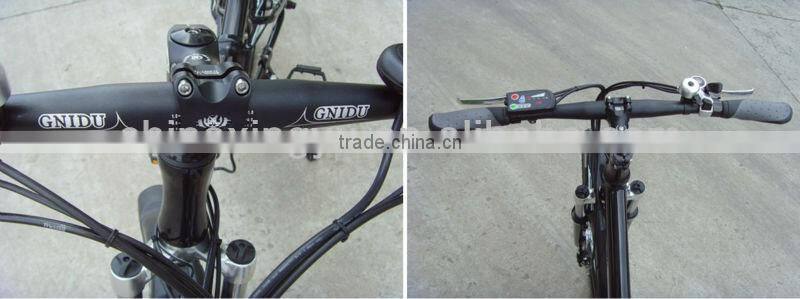

Al allou handlebar ZOOM brand

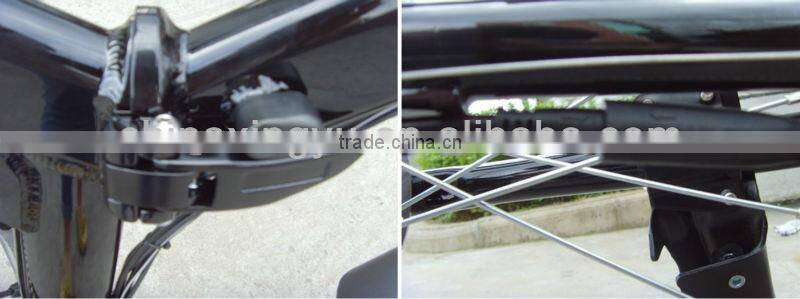

Folding button and quick connect wire

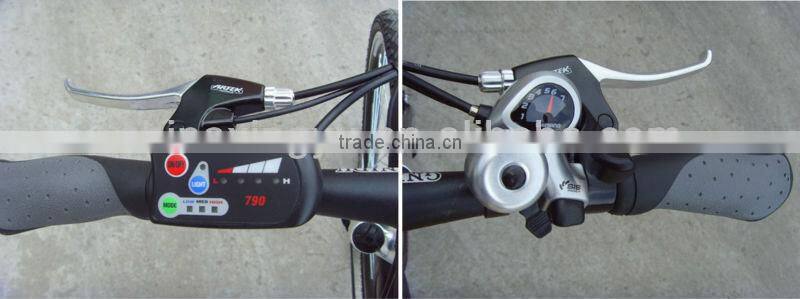

LED display and SHIMANO shifter

Technical testing for our electric bike

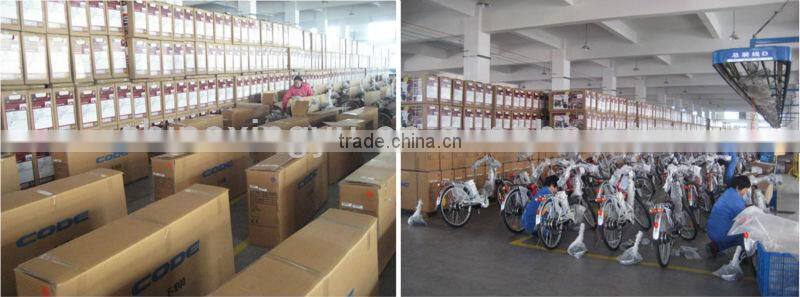

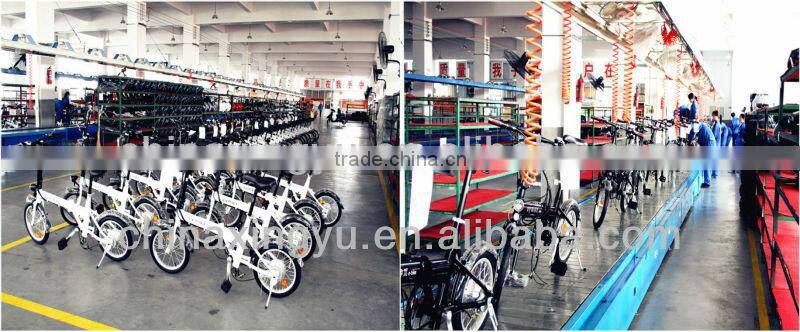

Our production line

Packing line

EN15194/CE Certification
