vacuum glass lifter pneumatic glass transfer arm

FOB Price

US$ 7,000 - 11,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Elevation Speed	as requirement
Vertical Travel(mm)	5 meters	Horizonal Travel(mm)	as requirement
Application	Load	Place of Origin	Shandong, China
Brand Name	fangding	Model Number	FDX-350
Weight	650kg	Power(W)	1.5-3kw
Certification	ce certificate	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. ce approved
2. manual opneumatic operation
3. sand column
4.10-12mm thickness steel
5.100-400kg carring ability

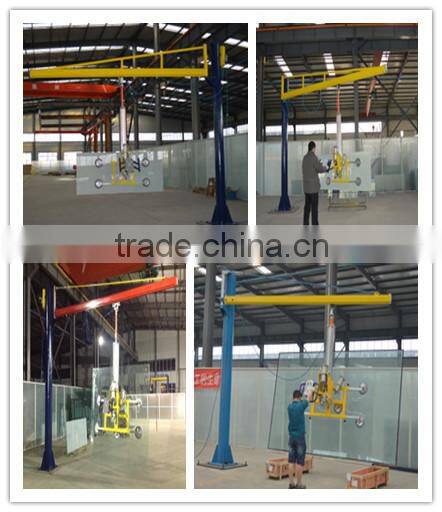

vacuum glass lifter pneumatic glass transfer arm

Performance

1. Fangding pneumatic glass arm is used to load and unload heavy and hot glass easily. It is easy to carry and very safe and save many labor cost.

2. The max carring ability is 350-400KG.

3. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

4. Special safety appliance to aviod the electric break. If the electric is turn off suddenly, the glass will not fall down and damage the people.

5. The sucker is high temperature resistent with high quality and can add according to your request.

6. all the switches/alarm is equipped on the operaing plate and very easy to check the questions

The spare parts' parameters

Sequence No:	Name	Parameter
1	Column crane material	32# Joist steel, Plug weld reinforced
2	The column steel size	300mm
3	The steel thickness	10-12mm
4	The Max lifting height	1000mm
5	The Max transfer length	6000mm
6	The electric block	1000kgs/6M
7	The electric spare parts	ZHENGTAI or SIMENS
8	The column crane height	5200mm
9	The Max angle of rotation:	360degrees
10	The Max lifting weight	350 KGS
11	The Column gross weight:	650KGS

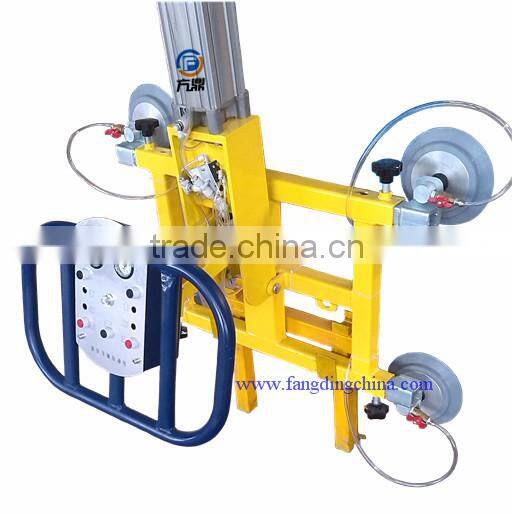

Technical parameter of Vacuum sucker:

Name	Glass sucker
Model	GFX-C
Outside dimension	786280mm
Max glass size	80*35mm
Function	Forward, roll over
Weight limit	400kg

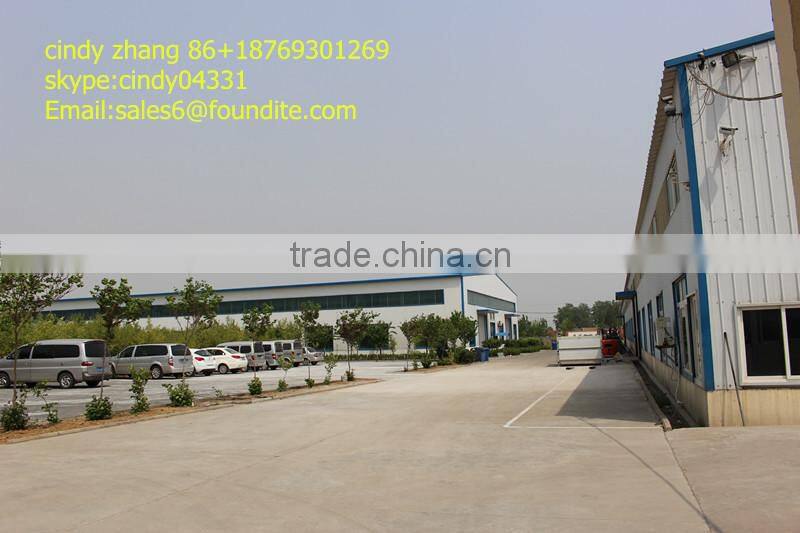

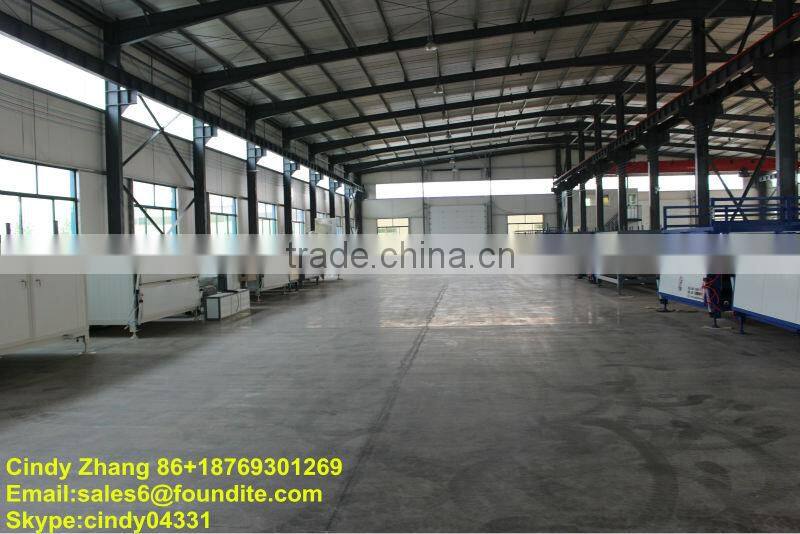

Our factory
