2hp 1.5kw, Shrimp Farming Equipment

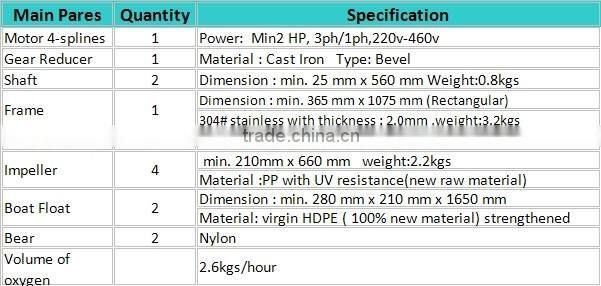

Specifications

Characteristics

1.Arcuate-bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.

2. The arcuate-bevel gear is made of chromium-manganese-titanium with carbon-nitride surface treatment. Ensuring long usage life spans and high rigidty.

3. Mechanical seal is available to prevent oil leakage

4. Inside protectors are avaible to avoid the motor being accidentally burnt out.

5..High effciency oxygen transferring ability with 2.6kgs O2/h

6.Have good water current circulation as the making of large aera water wave

7. Easy assetment,Operation and mainteinance

8. Durable service life

 Packaging & Shipping

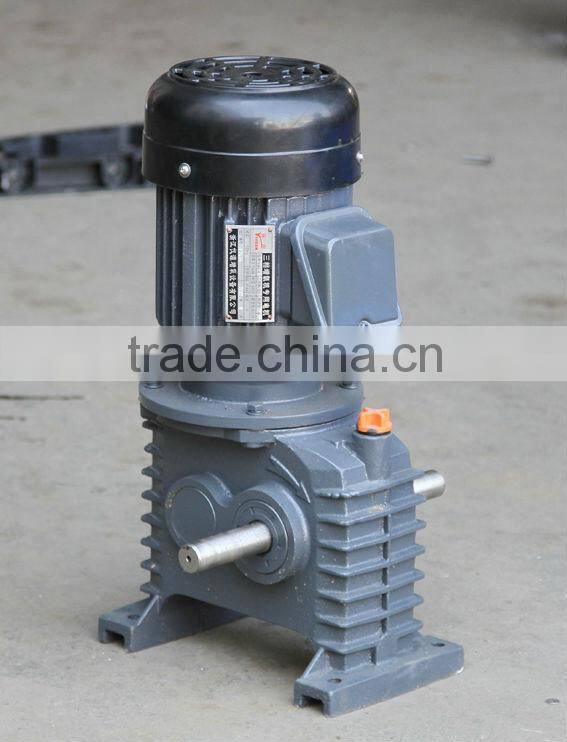

High Quality Motor

1. Expertise design for aquaculture industry.

2. The unique aerator motor made under “ISO9001”and “ISO 14001” system.

3. Top quality and above CNS standard.

4. Strict Q.C. to ensure best quality and performance.

Low Friction coefficient reducer

1. Updated high quality alloy componets.

2. Strong and durable gear wheel and input shaft.

3. Smooth rotation with low resistance to decrease energy lossess.

4. “Double Bearing” on each side of output shaft, wide gear wheel used to provide better torque output and durability.

Higher Performance PP impeller with brass parts

1. Replaceable paddle, lower maintenance cost.

2. Toughness against corrosion and sunburn resistance.

3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.

4. The “Support or Anchor Part” of the blade on the rim is more strengthened and unique designed.

# 304 Stainless steel frame

1. Made of #304 stainless steel material.

2. Sturdy and without deformation.

3. High durability.

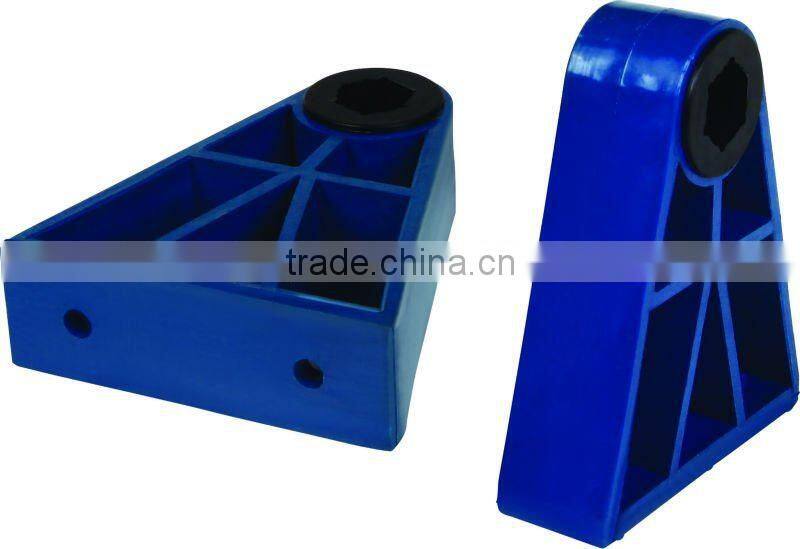

Mold Bearing

1. Made from 100% mew raw material.

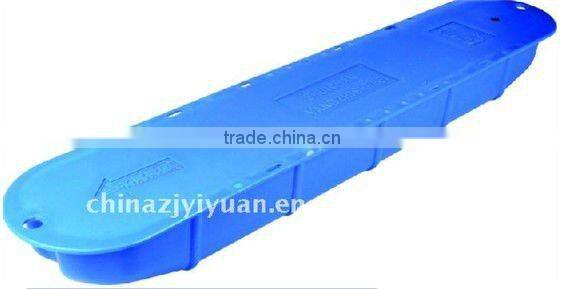

HDPE Float

1. Made of 100% new HDPE material to optimize full ductility.

2. Resist impact, acid-alkalinity and sun exposure.

3. One-piece blow molded with absolutely no seeping.

HDPE Motor Cover

Movable joint/ stainless steel movable joint

CE Certification

Working Principle

High-speed-working impellers splash the water into the air- these splashing water mix the oxygen in the air and be brought into the water--and dissolved oxygen in the water increase.

The woking impellers produce waves and currents-- make the saturated ammounia, CO2, methance, sulfuredted hydrogen,etc. go out of the water--the water quality improved.

Function

Shrimp,eel,fish and other qaua animals can grow up quickly and the healthly and can be avoided to die because of lack of enough disssolved oxygen in the water,meantime, can be farmed in high density with steady output.
