Home > Products > LED Strip Light > 5050 SMD Rigid LED Strip Light under cabinet

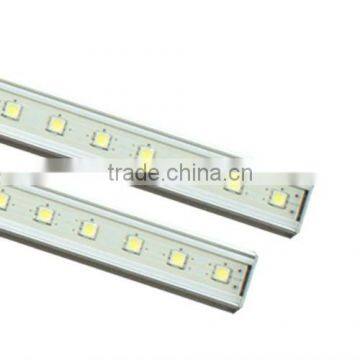

5050 SMD Rigid LED Strip Light under cabinet
- shenzhen
- T/T L/C Credit Card
You May Like
Product Details
| LED Light Source | 5050 SMD LED | Type | LED Bar Lights | |
| Input Voltage(V) | 12 | Lamp Power | 7.5 | |
| Lamp Luminous Flux(lm) | 350 | Color Temperature(CCT) | Warm White/Cool White/Red/Green/Blue/Yellow/RGB | |
| Working Temperature(℃) | -40, 50 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | QUALITYLED | |
| Model Number | QS-AL |
Product Description
Specifications
Rigid LED strip lightAluminum
Waterproof IP65
5050 SMD LEDs
UL&CE&RoHS approvals
Low power consumption
Low working temperature
High brightness
IP65, suitable for indoor and outdoor usage
Photometric Characteristics
Three-in-one 5060 SMD LED
Colors available: cool white(6000-6500K), warm white(2800-3300K), red, blue, green, RGB
Beam angle: 120°
Electrical Characteristics
Input 12VDC
Compatible with DMX and PWM control system
At most 5 meters can be connected in series.
Mechanical Characteristics
Material: aluminum back and waterproof glue on the surface of pcb
Surface finish: anodized and honed
Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40~50 degrees Celsius
Dimension: 250/500/1000x24x10mm (other length can be nominated by customer)
Waterproof IP65, suitable for indoor and outdoor usage
Method of Installation
1. Fix the two clips with screws
2. Put the strip into the clips
Applications:
1. Cabinet lighting
2. Shelf lighting
3. Display lighting
4. Decorative lighting
5. Cove lighting
6. Walkway
7. Household, hotel, restaurant, entertainment places, etc.
