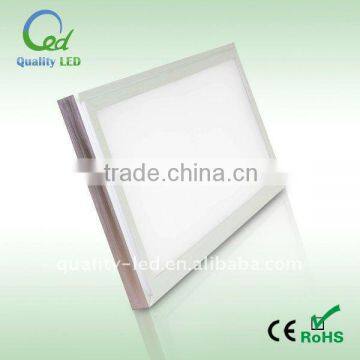

high quality ultra thin 9mm or 12mm led panel light

high quality ultra thin led panel light

Specification of  high quality ultra thin led panel light

CE&ROHS approved
Ultra-thin, 9mm or 12mm only

300×300mm,600×600mm,1200×300mm,1200×600mm,620×620mm

Recessed&Suspended&surface mounted
CRI>80, 3 years warranty

Features of  high quality ultra thin led panel light

1. Input Voltage: AC85V~AC265V available
2. Light source: low power SMD LEDs (placed in the edge of the plate)
3. Uniformity of light color: ≥ 90%
4. Color Rendering Index (Ra): > 85
5. Lifespan: ≥ 50000h (8 years using validity)
6. Beam angle: 120 degree
7. Edge-lit methods, with advanced light guide technology.
8. Low heat, and more enviornment protection.
9. No stroboscopic, no pollution, long lifespan, low luminous decay.

Mechanical Characteristics of high quality ultra thin led panel light

1. High quality lumisheet acrylic plate (PMMA).Aluminum PCB
2. Aluminum frame
3. Ambient temperature: -40 degrees Celsius ~ 60 degrees Celsius
4. Working temperature: 55 degrees Celsius at room temperature 33 degrees Celcius

Package of

high quality ultra thin led panel light

Applications of high quality ultra thin led panel light

1. Office
2. Commercial place
3. Railway station
4. Hospital
5. School

Aging test

Quality Control
