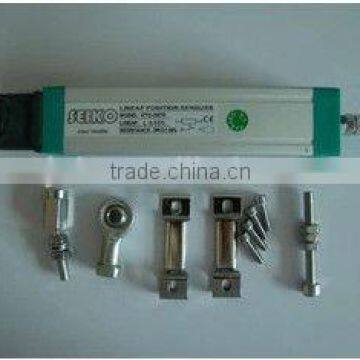

Linear potentiometer sensor position transducer KTC-325MM

FOB Price

US$ 1 - 999 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Model Number	KTC
Usage	Other, Position Sensor, Position Sensor		Output	Other, Voltage

Llinear potentiometer sensor position transducer KTC
Effective stroke 75 mm to 1250 mm
0.05% ~ 0.04% FS
DIN430650 standard pl

Llinear potentiometer sensor position transducer

Parameters	Specifications

OUTPUT
Stroke length(mm)	75 ~ 425
Mechanic Stroke length	Stroke length + 7mm
Non-linearity	±0.08%full stroke, ±0.05%full stroke
Resolution	Infinite
Repeatability	0.01mm
Max operating speed	10m/s
Output type	0~100% of operating voltage(vary with position)
Dimension A	Stroke length + 80mm
ENVIRONMENTAL
Operating temperature	−60°C~+150°C
Temperature coefficient	<1.5PPM/°C
Shock rating	50g(single hit) / IEC68-2-29:1968
Vibration rating	20g / IEC68-2-6:1982
Protection rating	IP67
ELECTRONICS
Max operating voltage	DC36V
Operating current	≤10mA
Resistence ±10%	5.0KΩ
OUTPUT
Stroke length(mm)	450 ~1250
Mechanic Stroke length	Stroke length + 7mm
Non-linearity	±0.05%full stroke , ±0.04%full stroke
Resolution	Infinite
Repeatability	0.01mm
Max operating speed	10m/s
Output type	0~100% of operating voltage(vary with position)
Dimension A	Stroke length + 80mm
ENVIRONMENTAL
Operating temperature	−60°C~+150°C
Temperature coefficient	<1.5PPM/°C
Shock rating	50g(single hit) / IEC68-2-29:1968
Vibration rating	20g / IEC68-2-6:1982
ELECTRONICS
Max operating voltage	DC36V
Operating current	≤10mA
Resistence ±10%	5.0KΩ, 10.0KΩ, 20.0KΩ

Installation size chart :
