Porcheson PS960AM controller for plastic molding machine

Specifications

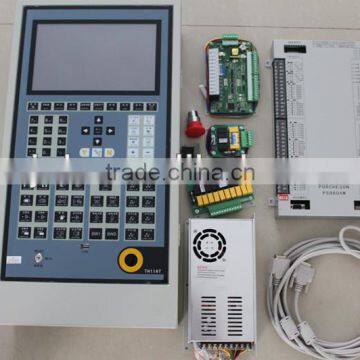

System configuration:

Host computer( I/O board), Keyboard( operation panel) , Power supply, Motor Electic-heating board,Message cable, user manual

PS960AM            48/48+7+4line electronic ruler+4line pressure detection

Keyboard : TH118        800*480TFT   10.2”inch LED  I nstallation size:280*510mm

                     TF118       800*480TFT    10.2”inch LED    Installation size:300*510mm

                     TG118     1024*768TFT     12.1”inch LED    Installation size:335*550mm

                      (optional one)

Power supply: PW450              450W

Cable: DB-15F                   1-8meter optional

User manual:                     one set with system

Guarantee Period: 1year

PS860AM  main function:

1. Up to 6 layer of password setting to enhance data storage safety

2. Multi-stroke control , position switch/3-path 16bit A/D electronic ruler input

3. 3 path with 16 bit A/D pressure feedback inspect input, current 4-20 mA

4. Multi-language selected, display dynamically in real time with 999 group SPC track record

5. PID (Proportion Integration Differentiation) self-learning temperature control, 7sections of temperature

6. Injection mouth temperature controlled by open-loop & closed loop

7. 999 groups mould data storage, mold description input can adopt Chinese/English with real-time operational help

8. Real time dynamically observation on output values of pressure, speed and current, no need extra ammeters

9. Multi security programs protected and internal security circuit controlled

10. Failure of self-detection, alarm display and voice prompt function

11. 3 path standard 16bit D/A ratio output with max current 3000 mA

12. 2 path standard ratio output 0 ~ 10V D/A

13. DC24V input 27 point /output 28 point, relay output 10 point

14. With long-distance communication functions which enable to programmed and replace different software versions

15. 512 working machines can be managed by one host computer which can count each computer's production status accurately and convenient to manage (optional)

16. Could configure various universal keyboards or touch screen:7.0, 8.0, 10.2 inch TFT(optional)

Operate environment:

Operate temperature: -10°C ~50°C

Storage temperature: -20°C~60°C

Relative humidity: 10%~95% (non condensation state)

Certificate: CE CCC
