XY-TQ-1575 Semi Automatic Toilet Paper Rolling Machine Quality Choice
- Xiamen
- T/T Credit Card
You May Like
-
XY-TQ-A Full Automatic Kitchen Towel Machine
-
XY-TQ-B Full Automatic Both Core and Coreless Toilet Paper Roll Making Machine
-
XY-TQ-C Full Automatic Color Embossing Toilet Paper Machine
-
XY-OQ-7000A Full Automatic Paper Napkin Machine Price
-
XY-OQ-7000K Double Decks Paper Napkin Folding Machine Price
-
XY-TQ-A-F Full Automatic Rewinding and Cuting Toilet Paper Production Line
Product Details
| Condition | New | Product Type | Toilet Tissue | |
| Processing Type | Winding Machine | Place of Origin | Fujian, China | |
| Brand Name | Xinyun | Model Number | XY-TQ-1575 | |
| Voltage | 380V 50HZ 3Phase | Power(W) | 4.5 KW | |
| Dimension(L*W*H) | 4450x2850x1500 mm | Weight | 3 Tons | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Semi Automatic Toilet Paper Rolling MachineRewinding embossing and perforating function
Easy to operate
Guarantee for 2 year

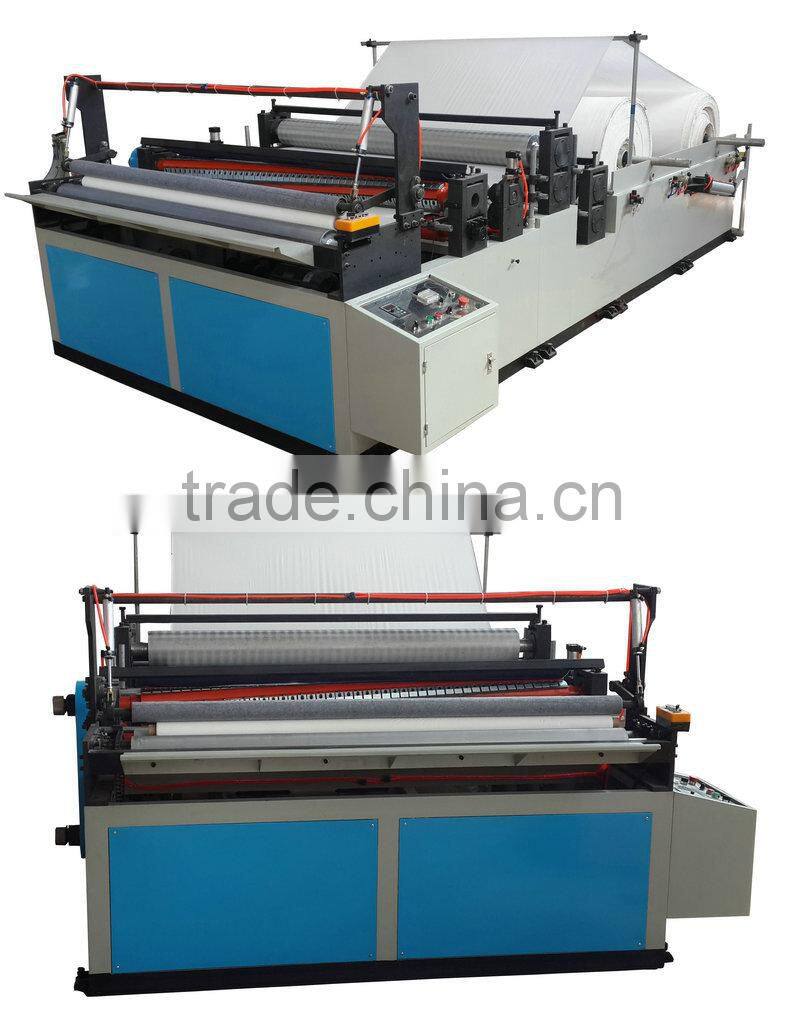

XY-TQ-1575 Semi Automatic Toilet Paper Rolling Machine
XY-TQ-1575 This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 0——100m/min. This model is the ideal equipment for new paper making factory and paper processing factory.

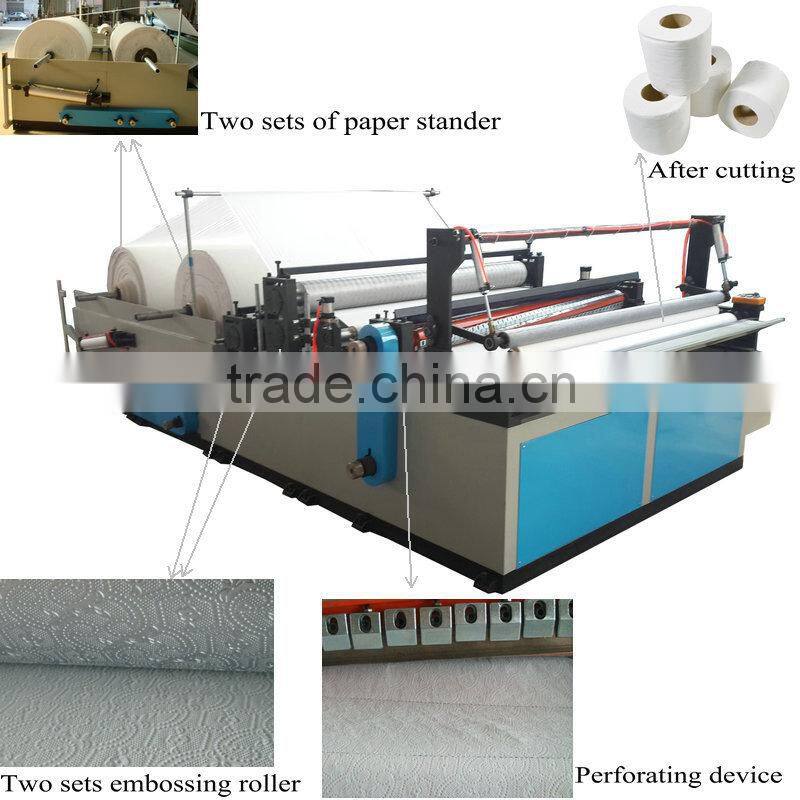

The production process is : unreeling —→ embossing —→perforating—→rewinding
Main technical data:
Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
Width of jumbo roll (mm) | 1200 | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 |
Finished Products Diameter | Φ80~110mm (Tightness can be adjustable) | ||||||
Finished Products Inner Diameter | Φ40~60 mm | ||||||
Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) | ||||||
Jumbo Roll Inner Diameter | 76.2 mm (other sizes please point out) | ||||||
Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
Production speed | 100 m/minute | ||||||
Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) | ||||||
Power | 4kw-10kw (380V 50Hz) | ||||||
Overall size (L×W×H) | 6200X2750X1800 mm | ||||||
Weight of equipment | About 3T | ||||||
Chosen items (Should be ordered separately) | |||||||
Embossment | Single embossment, Double embossment, Edge embossment | ||||||
Embossment down roller | Paper roller, rubber roller | ||||||
Jumbo roll stander | 1-3 plies | ||||||
Other special request for machine is welcome | |||||||
Video link: /watch?v=hPMvdQn44AI
All kinds of embossing pattern for toilet paper machine.
Why needs embossing? (Pattern selected by the customer)
Embossing enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.
Both two-Ply bath tissue rolls are embossed for higher absorbency and comfort.
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
If you need more information about these machine,please feel free to contact me!
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of: 1)Toilet Paper Machine 2)Facial Tissue Machine
3)Napkin Paper machine 4)Hand Towel Paper Machine 5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
