Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Bags | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 50Hz | Power | 4.7kw | |
| Place of Origin | Fujian, China | Brand Name | Xinyun | |
| Model Number | XY-BT-268 | Dimension(L*W*H) | 3600 mm*2700 mm*1900 mm | |
| Weight | 1600kg | Certification | CE Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

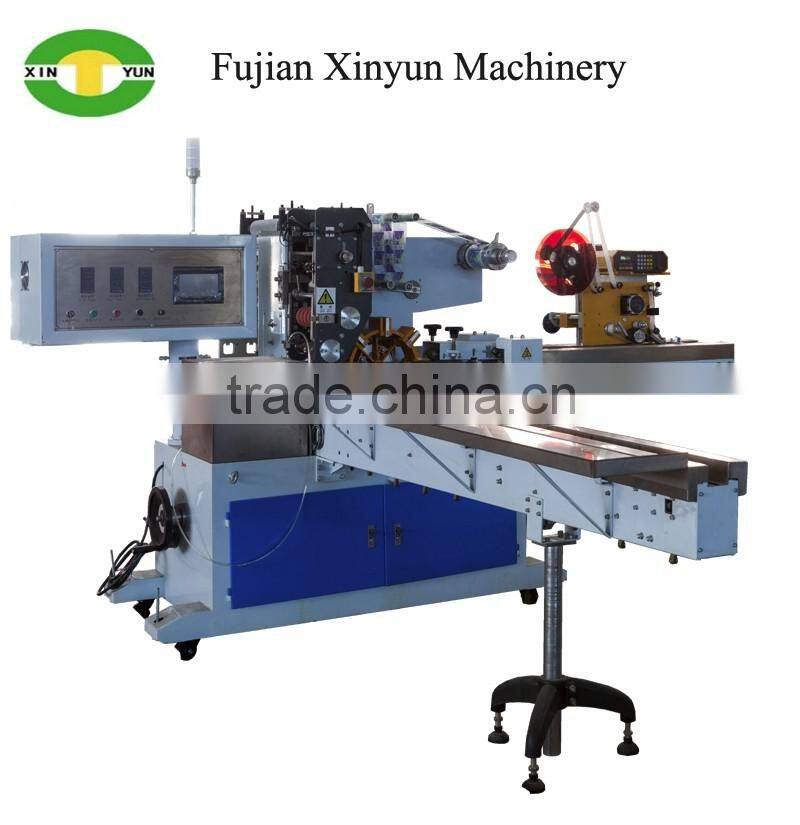

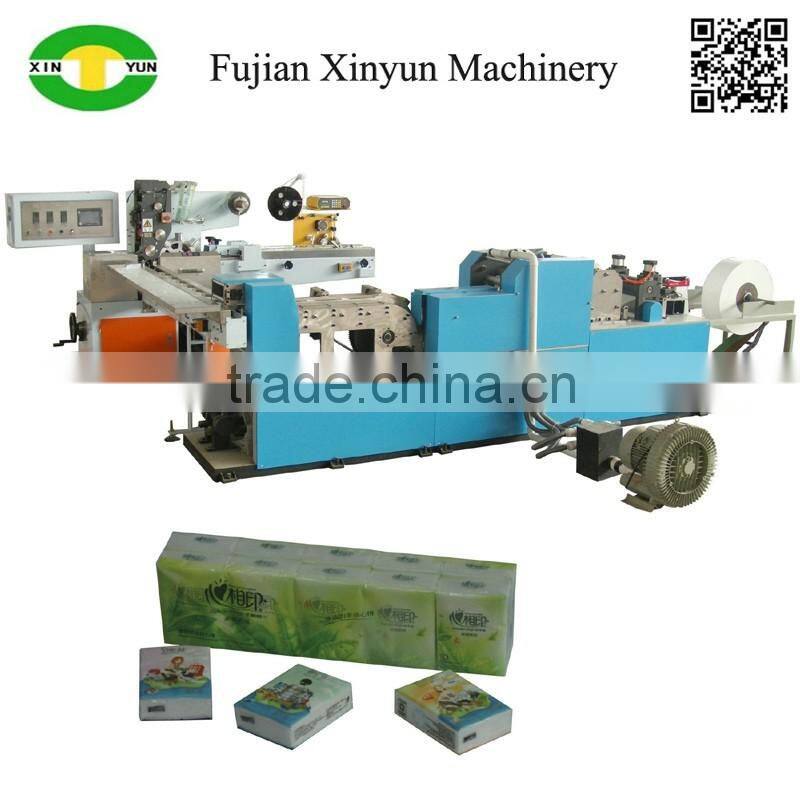

High performance pocket tissue bags packaging machine
XY-BT-268
Main performance structure and function characteristic:
1,High Speed, performance is stabilized, simple operation.
2,Assembled machine is run by Mitsubishi programmed controller(PLC),large screen touching screen with servo electrical machinery centralized control.
3, Mix the auto tracking out of order and warning system , and show in real time through the touch-sensitive screen, can find out the trouble reason and trouble position rapidly, deal with failure in time.
4, High-accuracy Omron follows the system photoelectrically track.
5, Transmission adopt advanced frequency conversion controller, make orientation by close Graduation case, and every working location cooperate by the accurate cam group graduation
6, Adopt the circulation lubricating system of automatic fuel-injection, lengthen parts service life greatly .
7, Adopt import get rid of the static device, it is more steady to enable packing performance.
8, Adopt import the intelligent temperature-controlled form , make temperature control freely.
9, Paper packing membrane tear mouth is punching automatically and able to equip and install all kinds of appearance tear of punching device automatically.
10,The content of date of production, production lot number ,etc. can be realized autotyping, and can regulate characters and type position to the best position.
11, Outside pack membrane tear mouthfuls of glue can stick synchronous automatically, reduce more cost of labor.
Technical specification:
1.The size of packing of product:
Standard paper handkerchief 106mm *53mm *26mm number : 10 sheets
Mini type paper handkerchief 72 mm*53mm*26mm 10 sheets
2.Specification of packing film :
Standard paper handkerchief 150mm
Mini paper handkerchief 116 mm
3.Packing speed (package /minute): 30-80
4..Air pressure: 0. 3~0. 4mpa
5.Power: 4.7kw 380V 50HZ
6.Over size: 3600 mm*2700 mm*1900 mm
7.Weight: 1600Kg
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

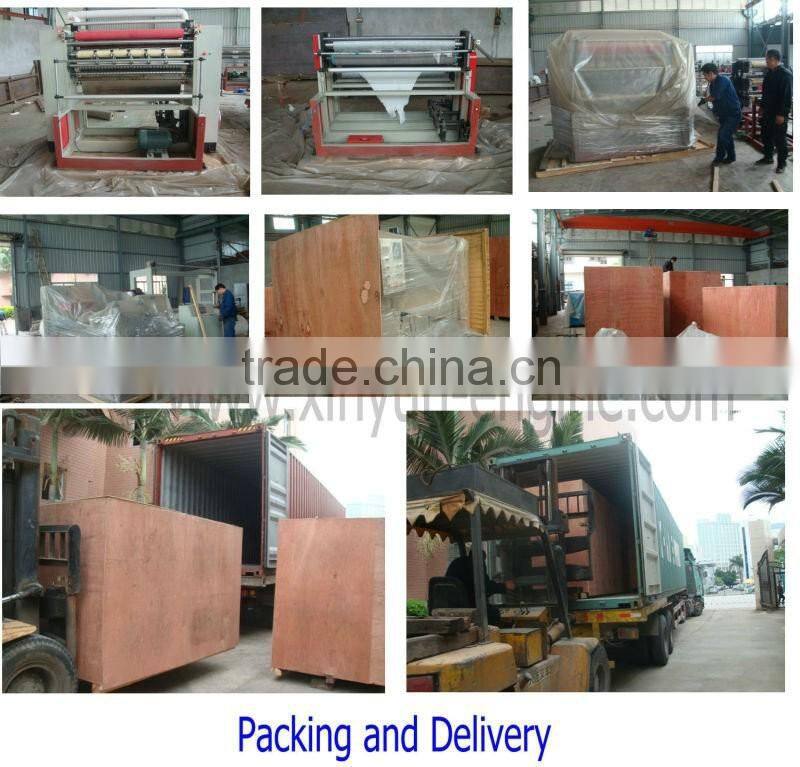

Packing Details : Packing, standard export wooden case
Delivery Details : 30-90 days after order
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.

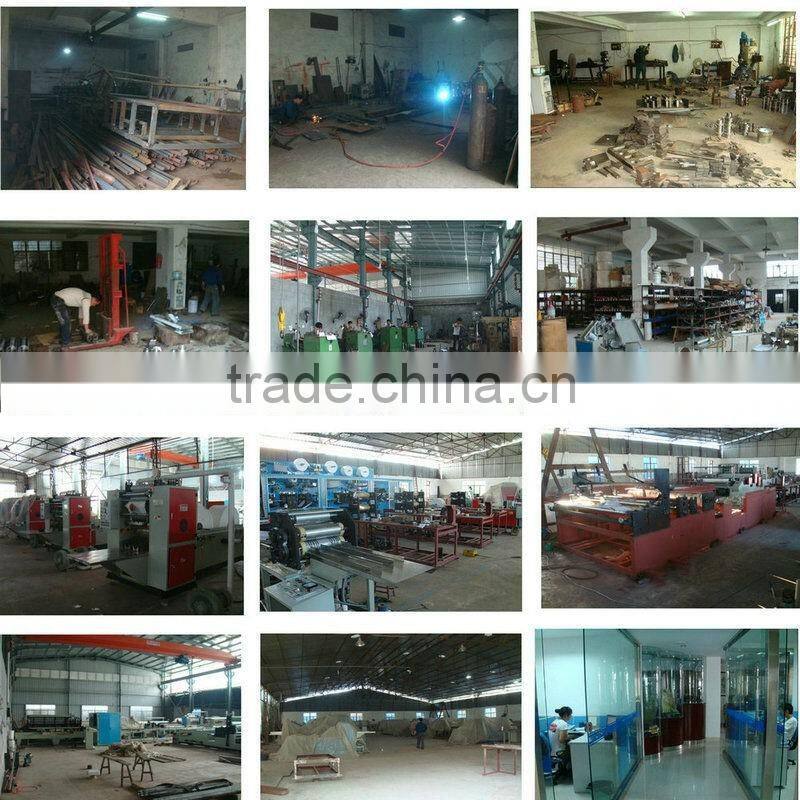

Our Factory
Our Certifications
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information,please feel free contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
