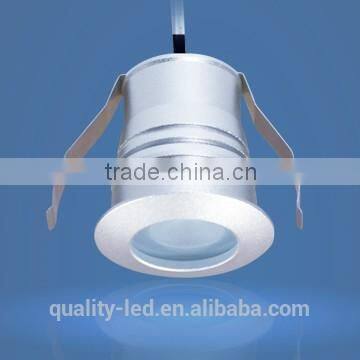

cylinder shape aluminum mini led light
- shenzhen
- Credit Card
You May Like
-
surface wall mount latest wholesale mini led light
-
europe cabinet lighting high quality LED
-
china factory new design cheap prices quare fitting ceiling broom
-
surface mount white painting led mini light
-
factory supply mini LED downlight
-
china factory vintage wall lamp cheap prices fancy lights for home
Product Details
LED Light Source | Sharp | Shade Type | Clear Glass | |
Style | Modern | Input Voltage(V) | 12 | |
Lamp Power(W) | 3 | Lamp Luminous Flux(lm) | 240 | |
Lamp Luminous Efficiency(lm/w) | 100 | Working Temperature(℃) | -50, 50 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
Certification | CE, SAA | Place of Origin | China | |
Brand Name | quality led | Model Number | QS-106 |
Product Description
Features:
1. Material: high-quality aluminum body,good heat sink
2. Driver: isolated constant current LED driver
3. Input voltage: 12V/350mA DC
4. Light Source: super bright sharp LED
5. Ra: >83
6. Beam angle: 30°,45°,60°
7. CCT: 2800-3300K, 4000-4500K, 6000-6500K
Advantage
CE,RoHS approval
More than 50000 hrs lifetime
3 years warranty
New design
High-quality LumiSheet acrylic plate (PMMA)
Surface finish available: white painting, aluminum silver
Light is bright but friendly to eyes
Recessed mounted or surface mounted.
Low working temperature long working lifetime
No stroboflash, eco-friendly
Electrical Characteristics
1. Input voltage: 12V/350mA DC
2. Power consumption: 1W/3W
Photometric Characteristics
1. Light source: ultra-bright low power Sharp LED
2. Colors available: white(6000-6500K), commercial white(4000-4500K), warm
white(2800-3300K)
3. Edge-lit methods, with advanced light guide technology.
4. Lumen output: 100-240lux
5. Lux at 1.5 meters: 180-210 lux
6. Beam angle: 30°,45°,60°
7. Uniformity of light color: ≥ 90%
8. Color Rendering ndex (Ra): > 83
Mechanical Characteristics
1. High quality lumisheet acrylic plate (PMMA).
2. Aluminum PCB
3. Aluminum frame
4. Ambient temperature: 40 degrees Celsius ~ 50 degrees Celsius
5. Working temperature: 55 degrees Celsius at room temperature 33 degrees Celsius
6. Dimension: ∅51.5*30.5mm
7. Cutout size: ∅42mm
Item | Specification |
Product Number | QS-106 |
Light Source | 1W/3W Sharp LED |
Power | 1W/3W |
Luminous Flux | 100-240lm |
Input | 12V/350mA |
Color Temperture | 3000K-6500K |
Dimming | YES |
Working Temperature | 45 degrees Celsius at room temperature |
Color Rendering Index | CRI > 83 |
Beam Angle | 30,45,60° |
Dimension | ∅51.5*30.5mm |
Cutout Size | ∅42mm |
Material | Aluminum Alloy |
Surface Finish | Silver or White painting |
Package | stardard packing box |
Certification | CE,ROHS |
Warranty | 3 years |
Install Method
Recessed mounted
Cut a hole ∅42mm in the ceiling,straighten the springs of the lights, put the light in the hole, and release the springs. The light will be fixed by the springs.
Application
under cabinet
art lighting
accent lighting
shelf lighting
display lighting
decorative lighting
wood lighting
Certificate
Trade Terms
- Payment: T/T, L/C,Paypal,Western Union
- Production lead time for 100-500pcs: 10 days, 500-10000pcs: 15 days
- Sample can be delivered in 3 days
- Shipping freight are quoted under your requests
- Shipping port: Shenzhen, Mainland China
- MOQ: 100pcs
Our Service
- Your inquiry related to our products or prices will be replied in 24hrs
- Well trained and experienced staffs to answe all your enquires in fluent English
- OEM&ODM, any your customized lightings we can help you to design and put into product
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private information.
Application
Company profile:
Established in 2007, Quality LED is an ISO 9000:2008- certified high-tech enterprise, which integrates developing, production and sales of LED lighting solutions. At Quality LED, We offer one-stop purchasing solutions for all of your LED lighting needs– whether it’s for home or commercial applications. Carrying CE and RoHs marks, our products are well-received in Europe, North America, Australia and the Middle East. We also provide the following advantages:
Stable quality to ensure the level of quality your market demands, we only source PCBs which made of MRK board from Taiwan, as well as use Edison and Cree LEDs.
A suite of QC equipment we utilize spectrometers, integrating spheres, power meters and vibration meters to evaluate our products’ performance. In addition to conducting 48-hour aging tests, we run full inspections on our items prior to delivery for your peace of mind.
Large monthly capacity equipped with high-speed placement machines and thermostatic reflow soldering machines, our 5,000m² factory produces up to 500,000 units monthly.
OEM/ODM ability Our R&D team, led by an engineer with over 10 years experience, can work on your customization requirements, completing samples in just 5 days
For more information on the advantages of working with us, contact us now.
