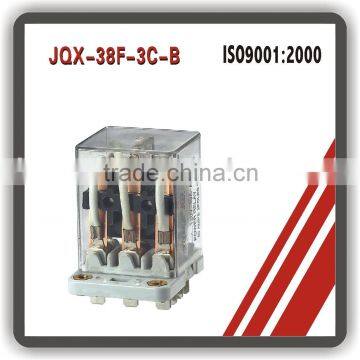

30A 2Z/3Z relay/power relay/JQX-38F-3C-B

FOB Price

USD $0.05 - $20 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. 30A 2Z, 2H, 3Z, 3H relay ISO9001, ISO14001
2. power relay IEC-255
3. JQX-38F-3C-B
4. electric relay

1. 30A 2Z, 2H, 3Z, 3H relay ISO9001, ISO14001
2. electromagnetic relay IEC-255
3. JQX-38F-3C-B

4. miniature relay

IEC- 255

Type: JQX-38F-3C-B

Size: 42.2*37.6*55.3mm

Terminal layout: 2Z, 2H, 3Z, 3H

Contact capacity: 30A 220V AC/ 30A 28V DC

Contact resistance: ≤50mΩ

Insulation resistance: ≥100mΩ

Dielectric strength: BOC 1000VAC BCC 1500VAC

Coil nominal voltage: 6 - 220V DC/6-380V AC

Coil nominal power: DC≤2.5 AC≤4.5VA

Electrical life: 10⁵ OPS

Mechanical life: 10⁶ OPS

Operating temperature: -40^oC ~ +70^oC

Mounting ways: outlet

...
