manual gas manifold gas pipeline system

manual gas manifold gas pipeline system

Rated input pressure: 15Mp
Working output pressure: P2: 0.6Mpa ( adjustable from 0 to 0.6 Mpa)

Gas manifold

1. intordiuction

Gas manifold is an important part of medical gas pipeline system. It is mainly used in hospitals and other types of medical or healthcare institutions.

Our company can provide two types of gas manifold: manual and fully automatic.

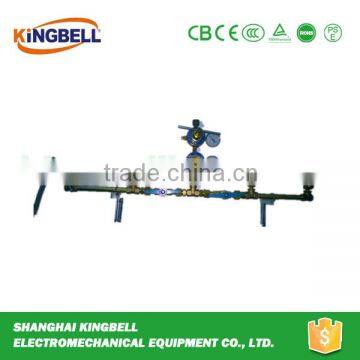

2.Manual Gas Manifold

Model: KB6700M

1. The switch between gas sources on both sides is done manually; It is used for refilling gas.
2. Safety and reliability are ensured as the pipes are made of high-quality copper and the system has successfully undertaken pressure tests.
3. Silver bars are used in the welding process of the pipelines so that leakage is prohibited in use.
4. Easy to install.
5. Each manifold is equipped with device for over pressure situation
6. The safety in use is double ensured by an emergency outlet which opens when the pressure is too high.
7. A filter device in the manifold screens out all the impurities in the gas sources.
8. Different types of manifolds are available for you to choose, including 2*3,2*5,2*10, etc.
9. It can be applied in handling the following gases: 02, N20, N2 and CO2.
