Low Voltage Current Transformer MBO-62/40

Specifications

Dixsen MBO current transformer(VDE, CE, RoHS) in Liushi

1.Description

A range of (9 frames) EURO style long life design plastic case current transformer, enforced terminal makes the CT keep cooling after full load using for a long term, elegant black figure makes the CT perfectly assort with related components in high quality panel board.

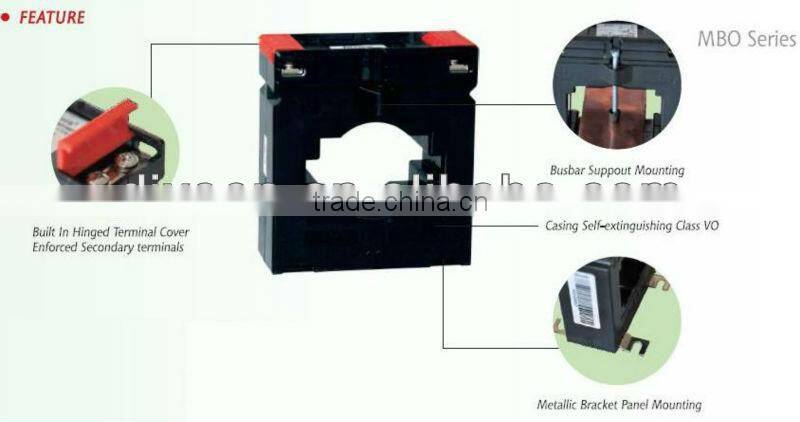

2.Feature
Two built in fixing methods:Side base; Busbar mounting
Built in hinged terminal cover
Enforced terminals
Primary current from 5A to 3000A.

3.Specification

Rated Frequency                                            50/60Hz
Rated test voltage                                          3kV AC. (1 min)
Rated short-time thermal current(Ith)               60In
Rated dynamic current, (Idyn)                         2.5Ith
Rated voltage,(Um)                                        0.72Kv AC.
Continuous overload,(Id)                                1.2In
Operating temperature                                    -10°C~50°C
Housing self-extinguishing class                        VO
Safety factor                                                   FS 5
Secondary current                                           5A/1A

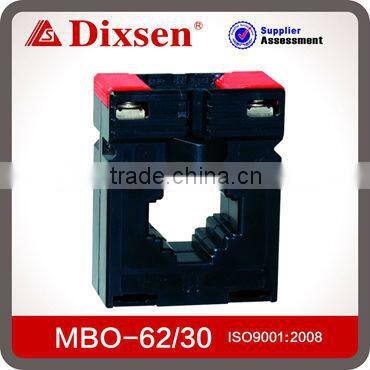

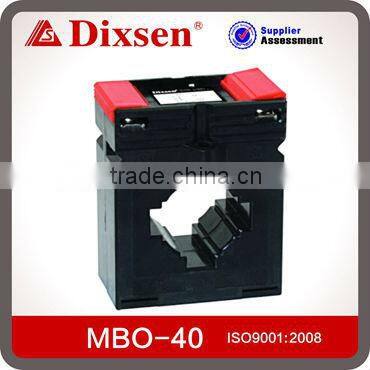

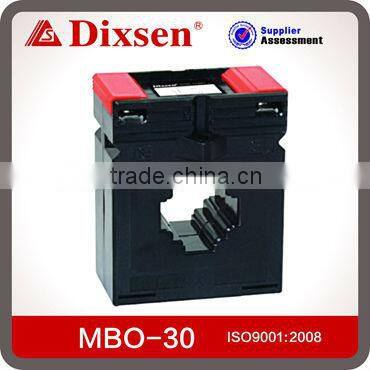

ABO series photos:

MBO-62/B, MBO-62/20,MBO-62/30, MBO-62/40, MBO-30, MBO-40, MBO-60, MBO-70, MBO-100

4. Packing show

5. Company show

6. Production series

....
