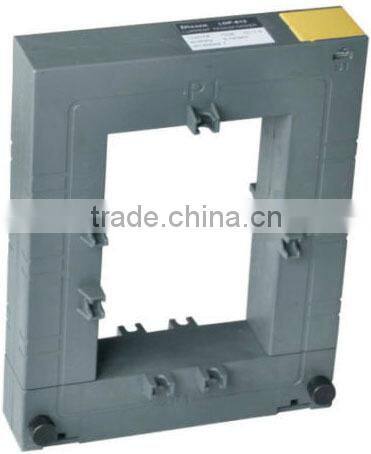

LDP Series split core transformer price
- 100000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIXSEN | |
| Model Number | LDP-812 | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Specifications
1. Class accuracy: Class0.5S; Class1.02. Test voltage: 3KV AC(1min)
3. Burden range: 1.5-30VA

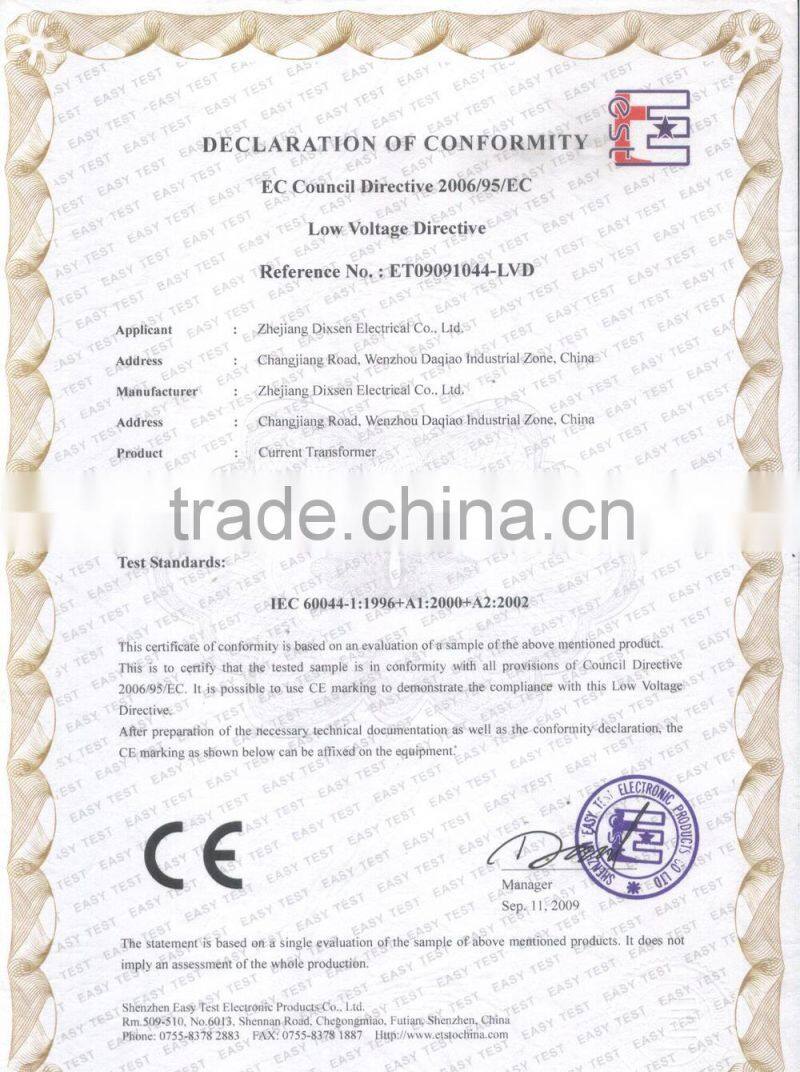

4. CE Certificate
In according with DBP model, we delevop our technique and get LDP type. It has been designed for special installation in circuit system and network. Its casing materials are made from high extinguishing PA66, according to IEC6004-1, BS7626, VDE0414-44-1, UI94.
| Model | Ratio (A) | Burden(VA) | Case Qty.(Pcs) | Item Code | |
| Class: 0.5S | Class: 1.0 | ||||
| LDP-812 | 500/5 | / | 2.5 | 10 | 481205005 |
| LDP-812 | 600/5 | / | 2.5 | 10 | 481206005 |
| LDP-812 | 750/5 | 2.5 | 5 | 10 | 481207505 |
| LDP-812 | 800/5 | 2.5 | 5 | 10 | 481208005 |
| LDP-812 | 1000/5 | 3.75 | 7.5 | 10 | 481210005 |
| LDP-812 | 1200/5 | 5 | 10 | 10 | 481212005 |
| LDP-812 | 1250/5 | 5 | 10 | 10 | 481212505 |
| LDP-812 | 1500/5 | 7.5 | 10 | 10 | 481215005 |
Note: Class/VA rating must be mentioned when ordering.

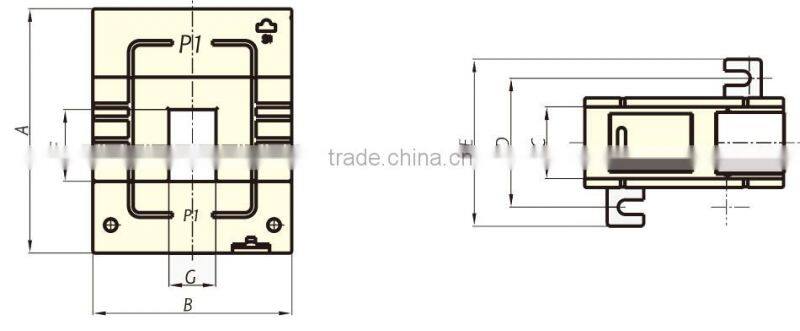

| Model | A | B | C | D | E | F | G |
| LDP-812 | 187.5 | 146 | 32 | 49.5 | 66.5 | 121.5 | 80 |

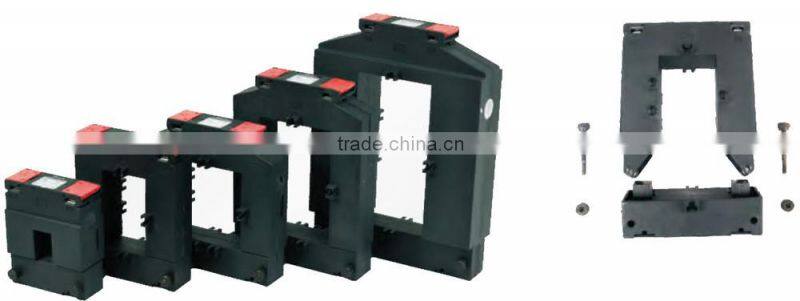

DP series:

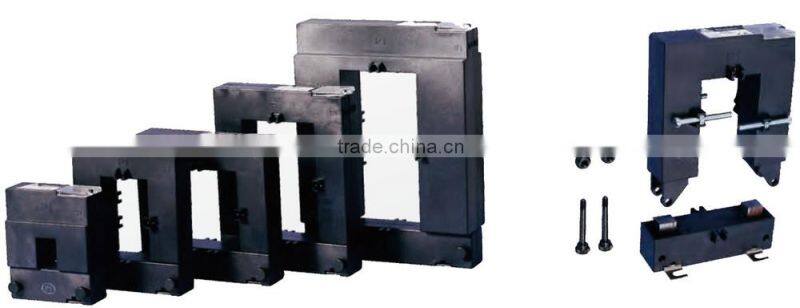

DBP series:

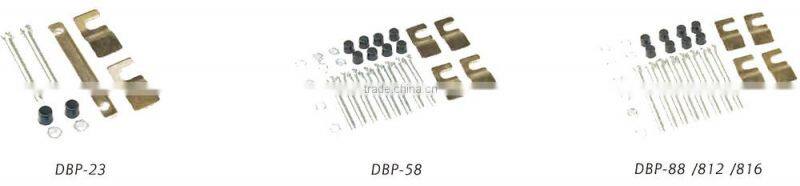

Accessories of DP and LDP model are the same as DBP model
Dixsen was born in 1992, we are a professional manufacturer focuses on low voltage components like Current and voltage Transformers, Transformers, Meters, MCCBs, MCBs, AC Contactors, Fuse and Bases, Relays and sort of things. We locate in Wenzhou city, Zhejiang province, where is quite close to Shanghai and Ningbo port. A 15000 square meter area is divided into workshop zone and office zone, 430 employees are currently making their great efforts in that area for Dixsen brand.
