Home > Products > Fuel Injector Nozzle Tester > Test Opening Pressure,HY-1 Nozzle Tester,For Heavy Duty Injector
Test Opening Pressure,HY-1 Nozzle Tester,For Heavy Duty Injector
- Credit Card PayPal
You May Like
-
Material:Plastic,Engine Control Unit,Common Rail Electronic Injector Tester
-
Material:Plastic,Engine Control Unit,Common Rail Electronic Injector Tester
-
With Nozzle Tester,Engine Control Unit,Common Rail Electronic Injector Tester
-
CRI700 Tester,Engine Control Unit,Bosch Common Rail Electronic Injector Tester
-
Checking Injector Back Leakage and Solenoid Condition,Bosch Common Rail Electronic Injector Tester
-
Checking Nozzle Spray Pattern,Bosch Common Rail Electronic Injector Tester
Product Details
| Type | Engine Analyzer | Voltage | 220v/380v | |
| Certification | ce/iso9001 | Applicable Models | AUTO TESTING MACHINE | |
| Place of Origin | Shandong, China | Brand Name | HAIYU | |
| Model Number | HY-I |
WOOD PACKAGE 23KG
Product Description
Specifications
1.Nozzle Tester2.accurate test
3.adjust and calibrate injector nozzle open pressure
4.test for EuroII injector

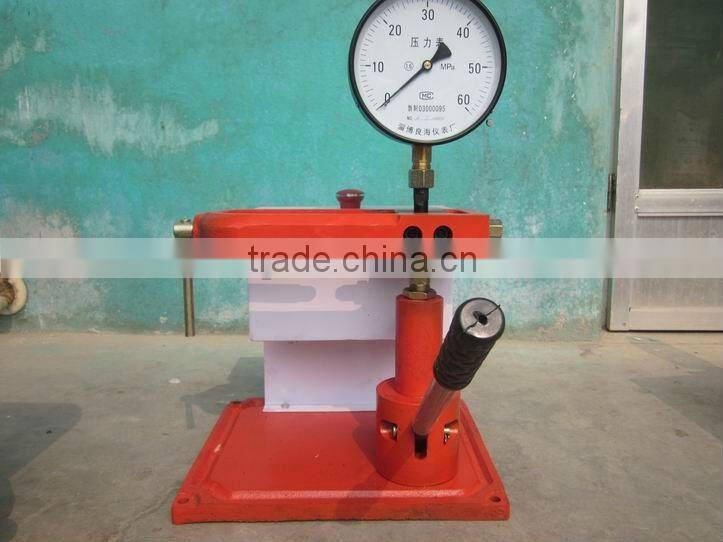

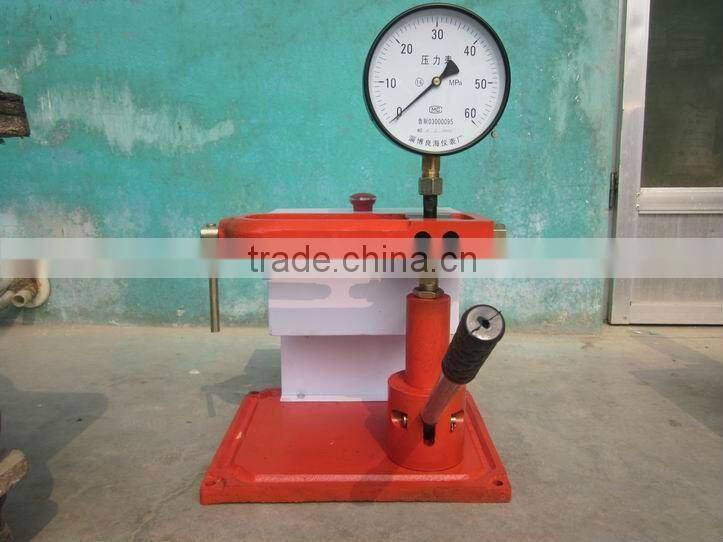

HY-1 Nozzle Tester
1. injecting pressure
2. atomizing quality
3. injecting angle
4. needle valve seals
Main technical parameters
1. diameter of pressure gauge 150mm
2. pressure gauge range 0∼60MPa
3. pressure gauge accuracy rating 0.4
4. largest tested pressure 60MPa
5. capacity of fuel tank 1.6L
6. overall dimension (L×W×H ) 250mm×150mm×480mm
7. net weight 23Kg
Company Profile
Taian Haiyu Machinery Co., Ltd. is located at the foot of famous Mountain Tai in the north development zone of Taian City which is between spring town - Jinan and the hometown of Confucius - Qufu. We enjoy convenient transportation and Taian City is at the junction of Beijing-Fuzhou Highway and Beijing-Shanghai Highway. Taian Haiyu Machinery Co., Ltd. is a modern technological company combing research, production, sale and service. We have a number of engineers working on designing and producing engine testing equipment and some sophisticated staff members specialized in computer software and hardware design. In recent years, we have cooperated with research institutions of universities. Our company succeeds in researching new series of HY injection pump test benches and injector test benches. Functions of the equipment have reached the internationally advanced level. We fully meet the needs of customers. Besides, we can also design particular testing benches according to customers' requests. In order to meet the requirements of lowering exhaust in diesel engine field and achieve European III standard, our company researches and develops common rail system test benches which have excellent functions and high accuracy. Our test benches have been widely used by internal engine industry and are exported to more than 30 countries and regions, including Asia, Africa and America. Our company also has long-term cooperation with Guanghua Gas and imports SMC gas meter boxes, stainless steel meter boxes, cold plates and other metal products. We adhere to the principle of "sincere cooperation" and warmly welcome customers from all over the world to visit us. We hope that you can work together with us for a beautiful future.
Contact Us
- Taian Haiyu Machinery Co., Ltd.
- Contact nameFengjun Zhang Chat Now
- Phone0086-538-6208888
- Address(Inside Yard Of Tongyuan Machinery Co.) Longquan Rd., High-Tech Zone
