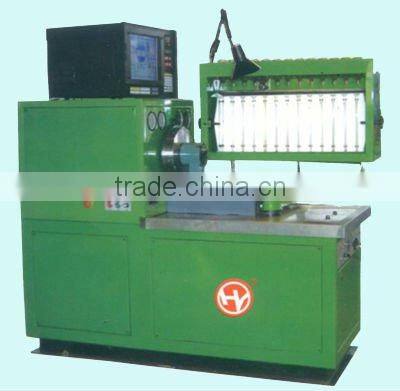

HY-NK Diesel Fuel Injection Pump Testing Equipment,Industrial Computer
- Qingdao
 - T/T Credit Card PayPal

You May Like
-


Measure Test Each Cylinder's Injection Time With Static State,HY-WK Fuel Injection Pump Test Bench
 -


Checking of the Pneumatic Speed GovernorsHY-WK Fuel Injection Pump Test Bench,Digital Display
 -


HY-NK Diesel Fuel Injection Pump Testing Equipment,Industrial Computer
 -


HY-NK Diesel Fuel Injection Pump Testing Equipment,Industrial Computer
 -


Diesel Pump Test Stand(HY-WKD)
 -


Diesel Fuel Injection Pump Test Bench(HY-WK),Verifying the Efficiency of a Fuel Pump

Product Details
| Place of Origin | Shandong, China | Brand Name | Haiyu | |
| Model Number | HY-NK | Power | Electronic | |
| Usage | Auto Testing Machine |
wood package
Product Description
Specifications
Cast iron operation platformStable rail pressures
Secondary filter
Test inline pump and distribution pump
HY-NK Fuel Injection Pump Test Bench
ISO 9001:2008 Certificate and CE Certificate!!
Compacted structure!!!
Reasonable price!!!
1. Adjusting each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Adjusting the performance of different speed regulator.
4. Checking of the sealing of injection pump.
5. Testing of oil return of distributing pump.
6. Checking of the pressure compensatory device of distributing pump.
7. Measuring of the internal pressure of distributor pump.
8. Measuring of the advance angle.
Paramter>>>:
Oil supply pressure of fuel system(MPa)  | Low pressure≥0.4 High pressure≥4.0  |
Supply capacity of fuel system(l/m)  | ≥8  |
Oil measuring frequency  | 0~1000  |
Control temperature of fuel oil(°C)  | 40±2  |
D.C. power source  | 12/24V  |
Power of motor  | 7.5/11/15kw  |
Speed range  | stepless frequency conversion, multi-gear speed overhead  |
speed  | 50-400 rpm or at will  |
adjustable workstation  | 12 cylinders  |
fuel supply  | 0-0.4MPa(low pressure) 0-4MPa(high pressure)  |
Filtering precision  | 10um
  |
Fuel system  | using radiator, air temperature display and automatic control  |
