plain idler

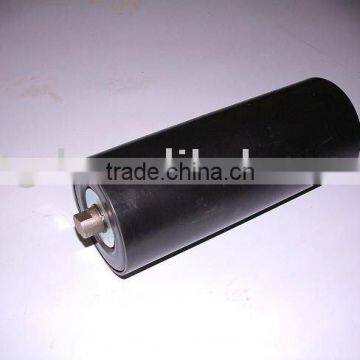

Plain idler

It is the part used to support belt and material loaded on the belt conveyor. There are two types accordance to its shape: standard type and pitch type. The pitch type can be fit on all the line, and it has belt adjust fuction.

Features:

1.    Steady running, reliable quality and reduce maintenance;

2.    Less movement longitudinally, rotating smoothly, extends the life span;

3.    Various bearing housing and sealing structure are available for the customers choice;

4.    Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

5.    Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.

Trough idler plain idler

 conveyor rollers with the following technical data:

- tube material: carbon steel pipe

- tube diameter:57-219 mm

- tube wall thickness: more than 5 mm

- tube length: 180-3350mm

- shaft diameter:20-70 mm or as drawing

- shaft external length: 10-40  mm on each side or as drawing

labyrinth-sealed ball bearings

Trough idler plain idler

 conveyor rollers with the following technical data:

- tube material: carbon steel pipe

- tube diameter:57-219 mm

- tube wall thickness: more than 5 mm

- tube length: 180-3350mm

- shaft diameter:20-70 mm or as drawing

- shaft external length: 10-40  mm on each side or as drawing

labyrinth-sealed ball bearings

Cangzhou Hengxintai Papeline Machinery is an experienced China-based manufacturer of belt conveyor.We provide all kinds of conveying equipments, such as the whole conveyors, serious of conveyor idlers, pulleys,frames with high quality and reasonable price. They are sold well in more than 50 countries and regions, such as Spain, South Africa, Eastern Europe, Australia, Italy and Canada and so on. If you are interested in our products, welcome to contact us and we will do our best to make you satisfied!
