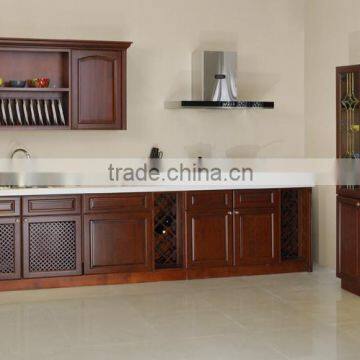

American style framed structure kitchen cabinet

1. American style framed construction cabinets made of 1/2" fine-finished plywood, 3/4" Solid Door and Solid Frame.  ---Plywood can be upgraded to 5/8" or 3/4".

2. 1/2" Tranditional Overlay Type Doors, full-concealled Six-way adjustable hinges.   ---Doors Can be upgraded to 1 1/4" Full Overlay Type,hinges can be upgraded to soft-closed.

3. Finished plywood drawer boxes, Full-extension metal slides. ---Can be upgraded to Hardwood Dovetail boxes, or/and Solf-Closing Runners.

4. All hardware for assembling are included, such as drawer runners hinges, Shelf holders, KD fittings,etc. Handles&Knobs are NOT included.

5. Raised door style,real pacific soft maple,real american red oak,real american cherry,real russian birch according to customized.

6. Customized orders are also welcome, please contact us for further technical details.

Double corrugated carton with pearl wool and PE form inside,then fill into pallets according to customized.

About knock down package schedule from outside to inside:

1. side panels each side

2. bottom and top panles,as well as rail panels

3. shelves and toe kick

4. back panel

5. doors and drawer fronts

6. solid frames

Each layer filled with pearl wool,and use best way to protect every pcs no damage.

American Style Kitchen Selection Guide

General
Based on a design philosophy that adapts the latest trend in style and functionalities to specific customer needs, Fengxiang provides high quality kitchens in various styles, finishes and colors.

Take a look at this guide, and kindly check and advice by return your comments/ requirements.

1       Screws

1.1      All screws are stainless steel

1.2      All stainless steel screws are supplied with kitchen with at least THREE extra screws of each size.

2       Hinges:

2.1      DTC brand 107º hinge for framed American Style Cabinets

3       Drawer runners:

3.1      Full extension runners, stainless steel material

4       Plinths (Kickboard/ Toe kick)

4.1      Usually, plinths are made of the same material and colour as carcass, fixed with screws.

5       Handles

5.1      All holes for mounting handles are predrilled unless customer specified.

5.2      Handles are parallel to the drawer bottom or side, whichever applies, or centred when appropriate.

5.3      All handle screws are supplied with kitchen (See section 1)

6       Counter tops
Counter tops can be Granite, Marble, Man-Made Stone (Polymarble) or Technistone®, Please specify the sizes of countertops you wanted, include the length, width and thickness.
Also, let us know the edge cutting you prefer.

7       Carcass: Board for carcass with construction moisture controlled to 8-12%

7.1       Assembled with quick connect hardware, coffie color

7.2       Carcass Gable Panel: 3/5” Plywood with painting – Can change to be 3/4”

7.3       Carcass Front Frame: 4/5” in Natural Solid Wood, same wood as drawer front

7.4       Carcass Bottom Panel: 3/5” Plywood with painting

7.5       Back Panel: 1/2” Plywood with inside painting (1/8” panel with 3/8” frame)

7.6       Shelves: 5/8” plywood with painting

7.7       Carcass dimensions to be made +/- 1mm

7.8       For hanging wall cabinets, use wall hanging brackets with loading capacity not less than 130 KG.

8       Doors :

8.1      Wood Species: We can supply solid wood as American Oak, Maple, Cherry, Birch, etc. PLS specify the solid wood for frame, door and drawer front.

8.1.1  Oak, Maple, Cherry or Birch in natural finish unless specified by customer, others as demanded by customers

8.1.2  No block-joined Solid Wood frames or small panels. Large panels are made of 2-4 pieces of wood with vertical join and runs the entire length of the panel

8.1.3  No excess glue can be visible

8.1.4  No surface imperfections

8.2      Door Materials Used:

8.2.1  All Natural Solid Wood, 4/5” natural wood Door Frame, with solid wood central panel (Notice: Thickness of Central Panel depends on specific door style, same as bellowing)

8.2.2  Solid Wood Frame with MDF Veneer, 4/5” natural wood Door Frame, MDF centre panel with solid-wood-like veneer (0.3-0.5mm thickly coated).

8.2.3  All MDF veneer, 4/5” MDF Door Frame with 1/2” or 3/5" MDF with solid-wood-like veneer (0.3-0.5mm thickly coated).

8.3      Door Styles: We can supply various solid wood doors in Raised Panel, Flat Panel or Mullion doors.  --PLS check our collection for door styles.

9       Drawers:

9.1      Drawer Front: 4/5” in natural Solid Wood

9.2      Drawer Construction: 4 sided with 3/8” plywood

10    Standard dimensions:

11    Base: 34.5"H*24"D , Wall: 12"Deep, Vanity: 30.5"H*21"D

IMPORTANT:
For we having a better understanding of the cabinets you wanted, please give us some description of the cabinet while listing the cabinet codes. For instance,
B30 Base cabinet, with one drawer and double doors.
SB36 Sink base cabinet, with one false drawer and double doors.
