Home > Products > Common Rail System Tester > (haiyu)PQ1000 Common Rail Injector Test Bench( Including Ultrasonic Cleaning Instrument)

(haiyu)PQ1000 Common Rail Injector Test Bench( Including Ultrasonic Cleaning Instrument)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Haiyu
Model Number	PQ-1000

Packaging Details

wood package

Product Description

Specifications

bosch fuel injector test bench
simple operation
Checking the injection return oil and injection oil

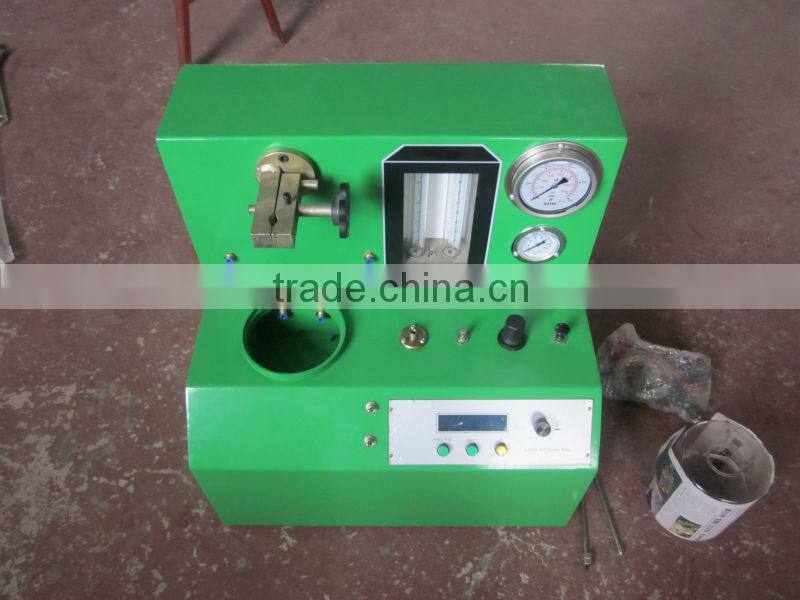

HY-PQ1000 common rail injector test bench 220V

To test if the CR injector is still functioned, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to continuous is injection mode. The CR injectors in normal condition, if it is capable to inject fuel under the driving signals by the tester
To test injector spray atomization, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.
Checking the injection return oil and injection oil.

>>Function:

1.Check the injector starting pressure

2. Assessment of the injector spray fog quality

3. Inspection of the injector spray oil range

4. Check of the injector seal and angel

5. Check of the injector oil flow

6. The machine has fog dissipation convulsion device to improve the work condition.

7. It has the two grade filter to ensure the cleanliness of test.

8. The parameter of common rail injector (fuel spray counts, frequency, pulse width, pressure etc.) can be set willfully.

9. It also can clean the common rail injector by Ultrasonic Cleaning Instrument.

Main function:

1. To test if the CR injector is still function, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to continuous is injection mode. The CR injectors in normal condition, if it is capable to inject fuel under the driving signals by the tester.

2. To test injector spray atomization, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.

3. Checking the injection return oil and injection oil.

4. with ultrasonic cleaning tester to clean the nozzle.

It is used to test the common rail injector also can clean the common rail injector by ultrasonic cleaning Instrument.

Main Voltage(Vac)	220V
Main Frequency(Hz)	50/60
Max Filling Volume per Tank(lit./gal)	2
Input System pressure(bar/psi)	0-10/0-145
System Build-up Pressure(bar/psi)	0-1800bar/0-26100 psi

wood package:
