EPS200 Automatic Common Rail Diagnostic Electrical Equipment Test Benches(Full-automatic)

wood package

Specifications

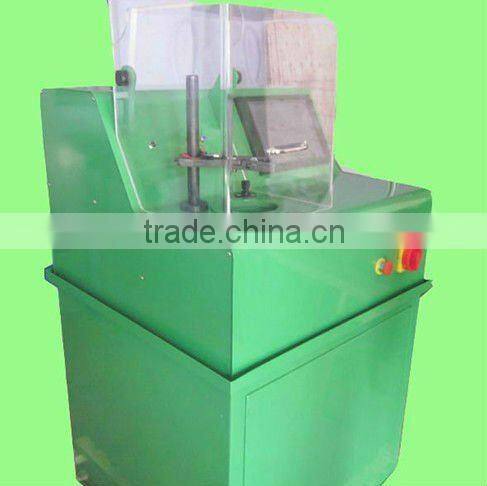

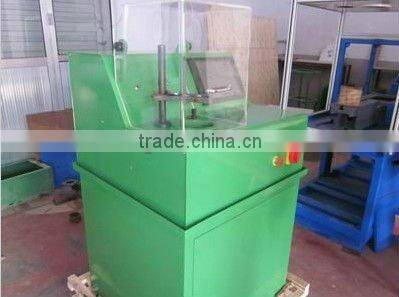

 HY-EPS200 High Pressure Common Rail Injector Test Bench

       HY-EPS200 high pressure common rail injector test bench is the latest detection equipment to check diesel high-pressure common rail injector and have 600 kinds of common rail injector standard data.With high precision flow testing instruments,it can automatically test the oil injection and oil return under the state of full load,idle operation,pre-injection and start-up.

>>>Function:

1. Test data reports can be generated, stored and printed (can be choose).
2. Testing the sealing of the common rail injection pump.
3. Testing the condition under full load.
4. Testing the condition of idling operation.
5. Testing the condition of pre-injection.
6. Testing the condition of the atomization quality

1. test injector brands: BOSCH, SIEMENS, DELPHI, DENSO.

2. test 1piece of injector at a time.

3. test the pre-injection oil quantity of common rail injector.

4. test the max. oil quantity of common rail injector.

5. test the cranking oil quantity of common rail injector.

6. test the backflow oil quantity of common rail  injector.

7. test the average oil quantity of common rail injector.

8. test the seal performance of common rail injector.

9. Data can be searched,  saved and made into database.

>>> Features

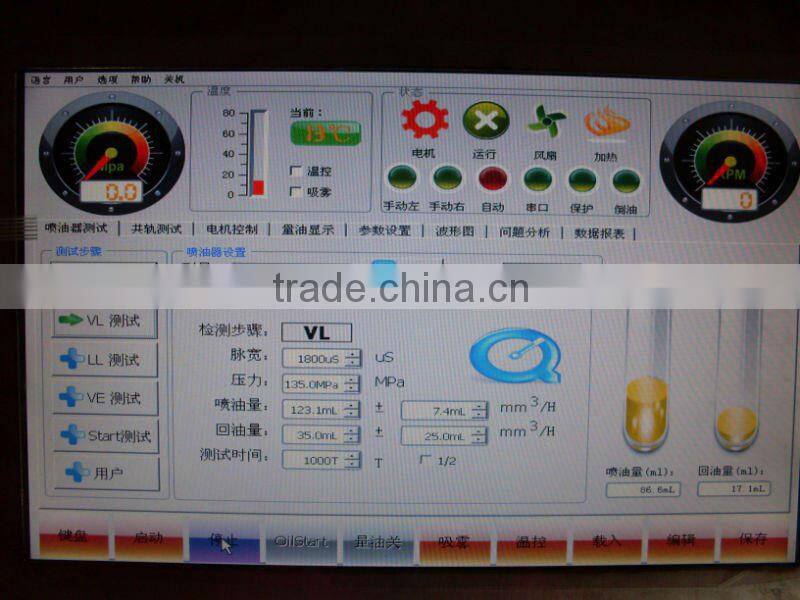

1.Industrial computer control ,WINDOWS OS ,19inch LCD screen display

2.Equipped with original imported high - precision flow sensor and automatic turning over measuring cup to do the testing, these two systems can be standby equipment for each other, also ensure the accuracy and reliability of testing.

3. Industrial PC real-time control and display, WINDOWS OS.

4. Oil quantity sensor test oil quanyity, 19 inch LCD screen display

5. Adopted original BOSCH common rail pump to provide 0~1600 bar rail pressure.

6. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection

7. Adjustable pulse width and frequency of injector’s driving signal

8. Injection times can be set free

9. Preset about 500kinds of injector data, easy to search and compare

10. Short circuit protection

11. Adopted super frequency converter to control rotation speed and insure the testing accuracy

12. Wide operation space, protective plexiglass cover to make sure your safe

>>>Parameter:

1. ISO9001:2008 Certificate, CE Certificate.
2. Power: 2.2kw.
3. Alpha Frequency Converter 7.5KW.
4. High pressure pump: Bosch CP3.3
5. Tertiary filter, filtering precision: 5um.
6. Revolving speed: 0~1000r/min.
7. Display: computer, touch screen
8. More than 600 kinds of standard injector data
9. Testing types: 1): Injectors of Bosch, Denso, Delphi, and Siemens.
