Fast Delivery !! PQ1000 Common Rail Injector Test Bench
- qindao
- Credit Card
You May Like
-
CRI200 Diesel Common Rail Pump & Injection System Tester
-
CRI200 Diesel Common Rail Pump & Injection System Tester
-
CRI200 Diesel Common Rail Pump & Injection System Tester
-
Bosch CP3,CP4 Common Rail Injector Test Bench,HY-CRI200A
-
Provide Special Fixture of Testing Injector,common Rail Injector Tester,HY-CRI200A
-
Continuous Injection Times: 0~1000,provide Special Fixture of Testing Injector,common Rail Injector Tester,HY-CRI200A
Product Details
| Place of Origin | Shandong, China | Brand Name | HAIYU | |
| Model Number | HY-PQ1000 | Power | Electronic | |
| Usage | Auto Testing Machine |
wood package fit for delivery
Product Description
Specifications
1.HY-PQ1000 common injector test bench2.Solenoid valve injector
3.easy operation

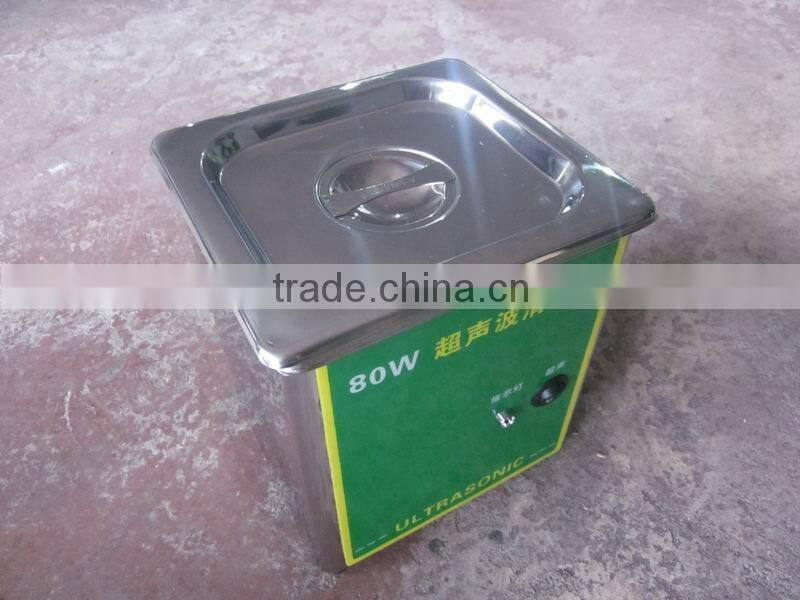

4.including ultrasonic cleaning tester

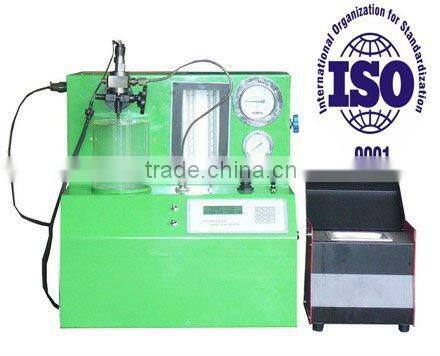

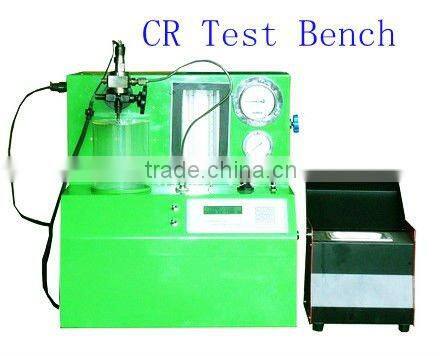

HY-PQ1000 high pressure common injector test bench
certificate: CE ISO9001:2008
bulk order can be given some discount
1. To test if the CR injector is still function, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to continuous is injection mode. The CR injectors in normal condition, if it is capable to inject fuel under the driving signals by the tester.
2. To test injector spray atomization, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.
3. Checking the injection return oil and injection oil.
4. with ultrasonic cleaning tester to clean the nozzle.
Main Voltage(Vac) | 220V |
Main Frequency(Hz) | 50/60 |
Max Filling Volume per Tank(lit./gal) | 2 |
Input System pressure(bar/psi) | 0-10/0-145 |
System Build-up Pressure(bar/psi) | 0-1800bar/0-26100 psi |
It is used to test the common rail injector, and it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
Technical data:
1. High pressure 0-1800bar
2. Check the injector starting pressure
3. Assessment of the injector spray fog quality
4. Inspection of the injector spray oil range
5. Check of the injector seal and angel
6. Check of the injector oil flow
7. The parameter of common rail injector (fuel spray counts, frequency, pulse width, Voltage) can be set willfully.
Company Profile
Taian Haiyu Machinery Co., Ltd. is located at the foot of famous Mountain Tai in the north development zone of Taian City which is between spring town - Jinan and the hometown of Confucius - Qufu. We enjoy convenient transportation and Taian City is at the junction of Beijing-Fuzhou Highway and Beijing-Shanghai Highway. Taian Haiyu Machinery Co., Ltd. is a modern technological company combing research, production, sale and service. We have a number of engineers working on designing and producing engine testing equipment and some sophisticated staff members specialized in computer software and hardware design. In recent years, we have cooperated with research institutions of universities. Our company succeeds in researching new series of HY injection pump test benches and injector test benches. Functions of the equipment have reached the internationally advanced level. We fully meet the needs of customers. Besides, we can also design particular testing benches according to customers' requests. In order to meet the requirements of lowering exhaust in diesel engine field and achieve European III standard, our company researches and develops common rail system test benches which have excellent functions and high accuracy. Our test benches have been widely used by internal engine industry and are exported to more than 30 countries and regions, including Asia, Africa and America. Our company also has long-term cooperation with Guanghua Gas and imports SMC gas meter boxes, stainless steel meter boxes, cold plates and other metal products. We adhere to the principle of "sincere cooperation" and warmly welcome customers from all over the world to visit us. We hope that you can work together with us for a beautiful future.
