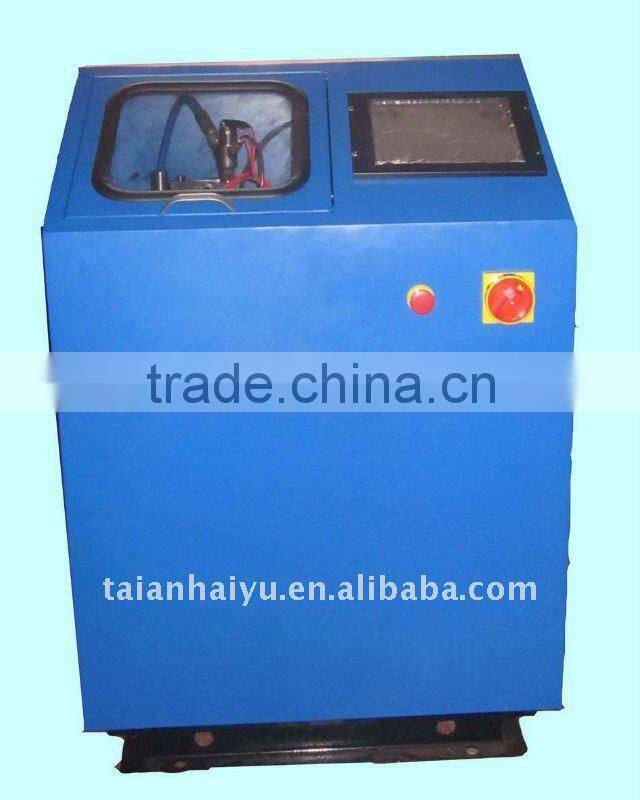

CRI200A High Pressure Common Rail Injector Test Equipment (best Selling )

wood package fit for delivery

Specifications

HY-CRI200A high pressure common rail injector test bench

certificate:CE certificate and ISO9001 certificate

Introduction

HY-CRI200A type high pressure common rail injector test bench.400kinds of standard statistics of common rail injector are built in. with high accuracy flow test detection equipment. It can automatically test the oil injection and oil return under the circumstance of sealing, full load, idle operation, preinjection. The test bench with high compacted structure can transmission smoothly, is reliable and operated simply, small size for easy mobility.

Main function:

1. Variable frequently drive pump serves the common rail BOSCH CP3.3 and the maximum pressure is 200Mpa. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
2. Adjustable inject frequency and time.
3. Built-in standard database of common rail injection pump, data can be update and added freely by users.
4. The standard database contains the waveform control data of all types of injection pump, and it can output the standard waveform control signal to the injection pump.
5. It can test BOSCH, DENSO, DEPHI and SIEMNES.
6. Industrial computer motherboard and embedded operating system Windows XP. It is screen displays basic status such as: the rail pressure, temperature ,host operation, speed, heating, cooling, also has some windows for fuel injection pump test, common rail test, fuel measurement, parameter setting, injection waveform, problem analysis and data reports.
7. Touch screen operation, easy to learn and use

8. Oil injection and oil return are automatically detected and clearly displayed on the large screen

9. Test data reports can be generated, stored and print (can be choose)

10. Testing the sealing of the common rail injection pump

11. Testing the condition of idle speed

12. Testing the condition of pre-injection

13. Testing the condition of the atomization quality

14. Function of high pressure cleaning of the injector

HY-CRI200A high pressure common rail injector test bench

Introduction

HY-CRI200A type high pressure common rail injector test bench.400kinds of standard statistics of common rail injector are built in. with high accuracy flow test detection equipment. It can automatically test the oil injection and oil return under the circumstance of sealing, full load, idle operation, preinjection. The test bench with high compacted structure can transmission smoothly, is reliable and operated simply, small size for easy mobility.

Main function:

1. Variable frequently drive pump serves the common rail BOSCH CP3.3 and the maximum pressure is 200Mpa. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
2. Adjustable inject frequency and time.
3. Built-in standard database of common rail injection pump, data can be update and added freely by users.
4. The standard database contains the waveform control data of all types of injection pump, and it can output the standard waveform control signal to the injection pump.
5. It can test BOSCH, DENSO, DEPHI and SIEMNES.
6. Industrial computer motherboard and embedded operating system Windows XP. It is screen displays basic status such as: the rail pressure, temperature ,host operation, speed, heating, cooling, also has some windows for fuel injection pump test, common rail test, fuel measurement, parameter setting, injection waveform, problem analysis and data reports.
7. Touch screen operation, easy to learn and use

8. Oil injection and oil return are automatically detected and clearly displayed on the large screen

9. Test data reports can be generated, stored and print (can be choose)

10. Testing the sealing of the common rail injection pump

11. Testing the condition of idle speed

12. Testing the condition of pre-injection

13. Testing the condition of the atomization quality

14. Function of high pressure cleaning of the injector
