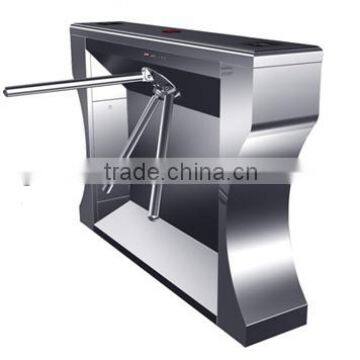

CE Approved Waterproof and Dustproof can Customized Make Turnstile Gate

Specifications

Cabinet:520*280*1000

Arm length:500--580

Diameter of arm: 36-40

Passage width: 550-630

SUS304 stainless steel

thick:1.2 mm

SUS304 stainless steel    thick:1.2 mm
 chanical type: inside switches for  exit, mechanical counter, hydraulic damping device
 B.Semi-automatic type:two-side card reading, direction guide, pole automaticlly fall down when electricity is cut down, hydraulic damping device
C.Fully automatic type:two-side card reading, direction guide, pole automaticlly fall down when power off,and go back to work when power on

Note:The price is based on B.Semi-automatic type,if you need A or C type ,please let us know ,so we can quote you separately.

Specifications:
Outside Housing Material:304 stainless steel
Internal Structure: Steel frame structure
Working Volt:AC220V±10V,50Hz
Working temperture:-30°C ~ 60°C
Maximum Channel Width :600 mm
Passing speed:60 persons/min(IC 13.56MHZ card)
Input Interface: +12V Level signal or pulse width>100ms DC12V pulse singal
Hydraulic shock absorbers can be freely adjusted for the return of the turnstiles
The open or close time of the turnstiles can be set.
Turnstile Life  time: Continuous opening and closing of more than 400 million times.
Driving Current:> 10mA
Working Noise: Below 65 decibels
Waterproof and dustproof : More than IP32
Relative humidity: less than 95%,
non-condensing.
