Single Door Access Control System ,access control system

Specifications

Single Door Access Control System with RFID Card

access control system

Access controller keypad

Touch key, light input, lasting and durable

Induction card to open the door, induction card and password to open the door, open the door    open password three way

A group of open the door button interface; A group of the doorbell interface

A group of relay dry contact output and a set of PUSH (low level) output

A group of WG26 interface, but external WG read head; Or set to WG26 output, the machine when the card reader use

Normally open, normally closed and automatic three backlight model

Has tamper function and safety operation mode

Access controller Features:

1, Low power consumption: standby current be less than 30mA

2, Luminous Keyboard: Can be operating the machine during night.

3, Large User capacity: support for 500 users.

4, Independent password: Can use the password independently to open the door.

5, User Change Password: Users himself can modify the password to open the door.

6, Fast Search speed: From the credit card to open the door in less than 0.1S.

7, Output short circuit protection: when the electric lock or alarm’s output short circuit

Within 100μS, will automatically turns off output

8, Wiegand output: Wiegand interface, support Wg26, Wg34

9, Keyboard can delete the card number directly: if some card is lost, the keyboard can be used to remove the lost card, total elimination of security risks.

10, Tamper alarm: There will be special built-in buzzer alarm sounds when Illegal disassemble issued

11, Support doorbell button and interface: buttons and circuit isolation, you can add any bell.

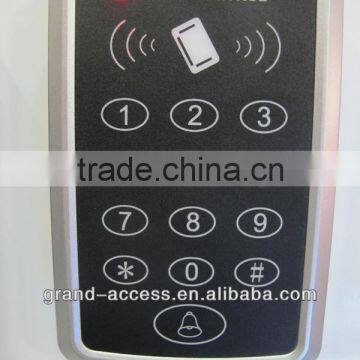

IMAGE:
