Product Description
disc couplings :

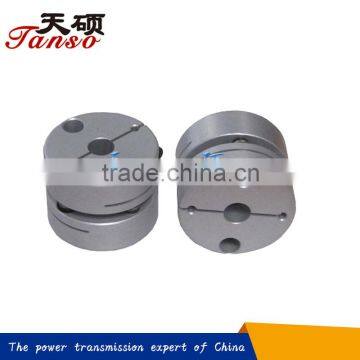

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.
Features of TS3 mini disc coupling:
1.High torque capacity and excellent response
2.Zero backlash
3.Stainless steel discs absorbs parallel ,angular and axial misalignments
4.Identical clockwise and anticlockwise rotational characteristics
5.Clamp type
6.For servomotor,stepmotor connection
Fundamental dimensions
Model | Φ d1Φd2 Bore diameter | ΦD | L | F |
| |||
L1 | M | Wrench Torque |
| |||||
TS3-26 | 5 6 8 | 26 | 25.5 | 2.5 | 11.5 | M3 | 1.5 |
|
TS3-34 | 8 9.525 10 | 34 | 31 | 3.1 | 14.1 | M4 | 1.5 |
|
TS3-39 | 10 11 12 | 39 | 34.1 | 4.1 | 15.0 | M4 | 2.5 |
|
TS3-44 | 11 12 14 | 44 | 34.5 | 4.5 | 15.0 | M4 | 2.5 |
|
TS3-56 | 14 15 16 19 | 56 | 45.0 | 5.0 | 20.0 | M5 | 7.0 |
|
TS3-68 | 19 20 22 | 68 | 54.0 | 6.0 | 24.0 | M6 | 12 |
|
TS3-82 | 24 28 30 | 82 | 68.0 | 8.0 | 30.0 | M8 | 16 |
|
Parameters
Model | Rated Torque | Max Torque | Max Rotational Frequency | Moment of inertia | Static Torsioral Stiffness | Parallel misalignment | Angular misalignment | Mass |
TS3-26 | 1.4 | 2.8 | 10000 | 1.8×10-6 | 690 | 1 | ±0.2 | 24 |
TS3-34 | 2.8 | 5.6 | 10000 | 7.2×10-6 | 1650 | 1 | ±0.2 | 46 |
TS3-39 | 5.8 | 11.6 | 10000 | 1.8×10-5 | 2500 | 1 | ±0.2 | 78 |
TS3-44 | 8.7 | 17.4 | 10000 | 2.5×10-5 | 2900 | 1 | ±0.2 | 96 |
TS3-56 | 25 | 50 | 10000 | 1.0×10-5 | 8400 | 1 | ±0.2 | 206 |
TS3-68 | 55 | 110 | 10000 | 1.9×10-4 | 11500 | 1 | ±0.2 | 366 |
TS3-82 | 80 | 160 | 10000 | 7.0×10-4 | 14550 | 1 | ±0.2 | 710 |
