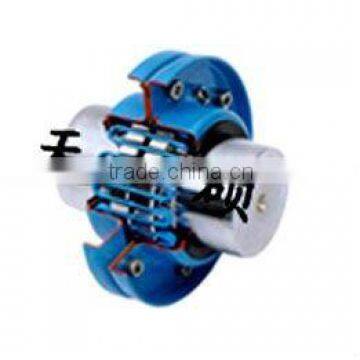

JS type grid coupling

FOB Price

USD $50 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port xingang

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Structure	Other, Grid coupling	Flexible or Rigid	Flexible
Standard or Nonstandard	Standard	Material	Steel
Brand Name	Tanso	Place of Origin	Taiwan, China
Model Number	JSB

Product Description

Specifications

1.JS type Grid coupling,spring coupling
2.ISO 9001:2000 cetificated
3.Customized according to your requirement.

JS type Grid coupling

1.High transfer efficiency and safety starting ,Transfer efficiency can reach to 99.47%,
2.when torque is being transferred; vibration reduction can reach to 36% on average.
3.Simple structure, it is convenient for disassemble.
4.Grid coupling useful life is longer than other no-metal elastic part couplings.

Product characteristics

Our G2000 Series Tapered Grid coupling is fully interchangeable with industry standards
Quick installation and easy maintenance reduces labor and downtime costs
Torsionally flexible and resilient - reduces vibration, plus cushions shock and impact loads
Versatile stock components can be used with either horizontal or vertical covers. Cover fasteners available in either Metric or Imperial sizes
High tensile, shot-peened alloy steel grids and precision machined hubs ensure superior performance and long life

Model	Rated Torque N.m	Maximum Speed rpm	d Bore	L Length Thur Bore	L2	D	D1	C	Weight kg	Mass moment of inertia J Kg.m2	lubricant kg
Model	Rated Torque N.m	Maximum Speed rpm	JS11	12500	2025	90,95,100,110,120,125,130,140	149	192	Weight kg	Mass moment of inertia J Kg.m2	lubricant kg	310	6	81.27	0.514	0.735
JS12	18000	1800	110,120,125,130,140,150,160,170	162	195	346	121	0.989	0.908
JS13	25000	1650	120,125,130,140,150,160,170, 180,190,200	184	201	384	178	1.85	1.135
JS14	35500	1500	140,150,160,170,180,190,200	183	271	450	391	234.26	3.49	1.952
JS15	50000	1350	160,170,180,190,200,220,240	198	279	500	431	316.89	5.82	2.815
JS16	63000	1225	180,190,200,220,240,250,260,280	216	304	566	487	448.1	10.4	3.496
JS17	90000	1100	200,220,240,250,260,280,300	239	322	630	555	619.71	18.3	3.76
JS18	125000	1050	240,250,260,280,300,320	260	356	675	608	776.34	26.1	4.4
