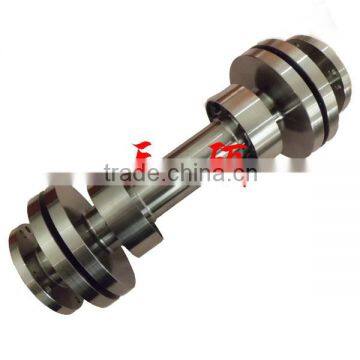

TAHP Series Diaphragm Coupling

FOB Price

US$ 500 - 2,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

TAHP series diaphragm coupling applies to the situation that demands larger axial dispacement and lower rigidity.And it has following features:

Light weight and high torque .
Easy assembly and disassembly.
Due to its light weight ,simple design and superior balance repeatability,the TARR series diaphragm is ideal for every application.
The alloy steel bolts with high strength provide long service life.

Dimensions and performence parameter:

Type	Tightening torque (Nm)	Mass (Kg)	Torsional rigidity KT	Moment of inertia (Kgm^2)	Data of middle section per meter			Angular misalignment		Axial misalignment
Type	Tightening torque (Nm)	Mass (Kg)	Torsional rigidity KT	Moment of inertia (Kgm^2)	Mass (Kg)	Torsional rigidity ΔKT(Nm /radxE+06)	Moment of inertia (Kgm^2)	Max θmax (deg)	Angular rigidity Kθ (Nm/radxE+03)	Max (mm)	Axial force (N)
TAHP150	15	14.34	0.09	0.009	5.3	55.89	0.0058	0.25o	0.65	1.5	491.1
TAHP180	30	21.8	0.209	0.021	7.2	121.76	0.0115	0.25o	1.37	2.5	785.64
TAHP230	45	51.5	0.64	0.048	16.07	383.22	0.0356	0.25o	3.39	3	1498.2
TAHP280	120	81.5	1.43	0.125	21.5	957.97	0.0921	0.25o	7.86	3.5	2514.3
TAHP330	120	134.2	2.65	0.28	32.2	1773.38	0.1718	0.25o	14.88	4	3616.5
TAHP380	160	176.1	3.93	053	35.6	2623.83	0.2516	0.25o	18.25	4	4177.7
TAHP430	160	245.5	5.92	0.93	45.6	4175.75	0.3909	0.25o	28.13	4	7258.9
TAHP560	220	670.7	19.17	4.67	98.1	5653.5	1.568	0.25o	75.11	4	11834

Tips:

In the table,the length L is standard value which is designed according to the performance.And we can supply couplings of other length L.
Each standard coupling selection can be customized for any given application.
Contact Tanso engineer for coupling selections requiring:Higher speed,axial/angular misalignment or torque.
