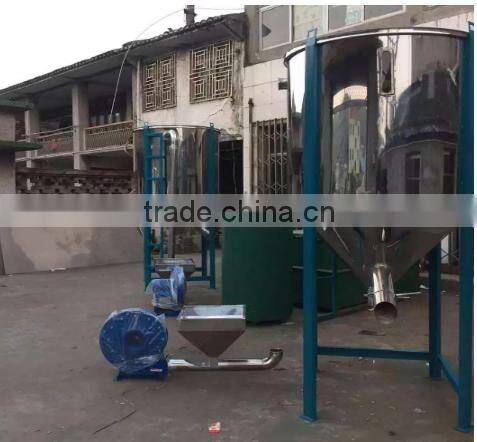

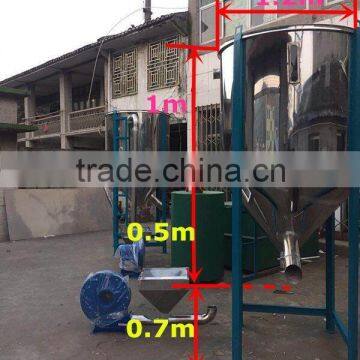

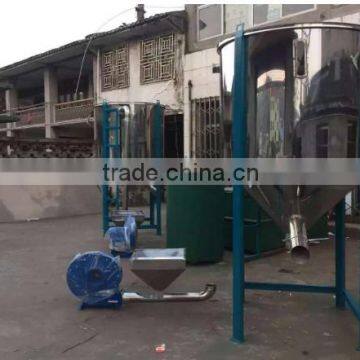

China Factory Make Plastic Granules Storage Tanks

OUR MACHINE HAVE GET CE AND SGS CERTIFICATION!

THE PLASTIC SCRAP:

First stage:

Motor: 55kw-4P, Brand: Weinuo, from Nanjing city.

Control method: by inverter, brand: Pioneer from Shanghai city.

250# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city

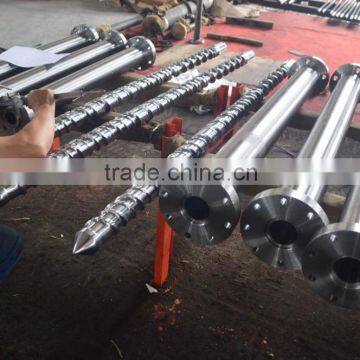

Screw barrel material: 38CrAlA.

Screw Dia.: 140mm; Barrel Dia.:190mm

L/D ratio: 22:1

Screw length: 3000mm

Barrel heater: Ceramic heater

Hydraulic controlled screen changer

Sieve dia.: 250mm

Material Hopper: designed with compulsory feeder to push the crushed scraps into screw barrel more faster.

Feeder motor: 1.5KW-6P with inverter control

Second stage:

Motor: 18.5kw-4P, Brand: Weinuo, from Nanjing city.

Control method: by inverter, brand: Pioneer from Shanghai city.

180# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city

Screw barrel material: 38CrAlA.

Screw Dia.: 117mm; Barrel Dia.:160mm

L/D ratio: 10:1

Screw length: 1200mm

Barrel heater: Stainless steel heater

Hydraulic controlled screen changer

Sieve dia.: 220mm

Water tank: made by thick steel, 2500×500×300MM

Air blowing dryer: 1 set

Fan motor power: 1.5KW

Rotary Normal Speed Cutter: 1set

Adjustable Speed Motor: 3KW,

Electrical Control cabinet: 1 set

Circuit breakers: Schneider
