Raised Storage Area Shelving Mezzanine

Detailed Product Description

Multi-tier Racking-supported Mezzanines

Rack-supported mezzanines are the most economical way to create an additional floor level using standard pallet rack components, which utilize the cubic area of warehouses and maximizes your storage space.

Rack-supported mezzanines can be built over existing equipment and work areas. By improving workflow efficiency and space utilization, rack-supported mezzanines can eliminate downtime and expensive relocation costs.

Heavy (medium) duty racking forms the main parts of the Mezzanine, and cold rolling walkways connect all shelving to build a whole structure of Mezzanine. Special locks are used to fix walkway and catwalk tightly. The walkway has such advantages as good loading capacity, high precision, quite smooth walkway surface, and it’s easy to be fixed. The mezzanine is equipped with lighting system, easy for accessing and management of goods.

Features:

.  With composite racking structure, patented light-steel floor panel structure

.  Floor panel with large load capacity, low cost, quick construction

.  Can be designed into one layer or multi layers according to actual situation

.  Ensures the fullest space utilization

.  Provides direct access to all pallets

.  Surface: Powder coated or galvanized and color optional

.  General ways of transportation from 2ND floor to 3rd floor: Manual, Elevating table, hoisting machine, conveying belt, forklift truck.

.  Can be designed according to clients' requirements.

Loading of the shelving in mezzanine is normally less than 500kg per square meter, level height of mezzanine is between 2200 to 2700mm. Height of shelving on top of mezzanine is around 2000mm, taking loading and unloading of goods into good consideration. This kind of mezzanine is widely used in the fields of automobiles, electronics, light industry and mechanics, etc

Staircase, hydraulic lift table and lift are equipped, combined with forklifts, for moving goods from ground to floor panel. Mezzanine is freely to design to be two-layer of three-layer lased on the requirements from customers, taking full use of the storage space. This kind of mezzanine is widely used in the fields of automobiles, electronics, light industry and mechanics, etc

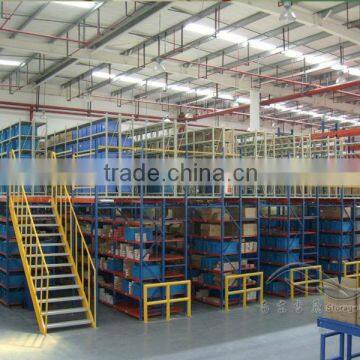

Product showcase :

Required information for quick quotation:

1) The AutoCAD drawing or draft drawing of the warehouse and mezzanine.

2) The size of the warehouse?

3) How many layers?

4) The size of shelving( L*D* H)? Please supply us the size of pallet shelving , height ( goods on the pallet shelving also ) ,and the loading capacity of every pallet you need

5) The loading capacity of each layer?

6) The loading capacity of each square meter of the floor?

8)we need you supply us the goods size details ( Length ,Width , Height ) & weight on Mezzanine .

9) The RAL color?
