LUITON DG-M100 DPMR Digital Mobile Radio
- CHINA
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | LUITON Digital mobile radio | |
| Model Number | DG-M100 Digital mobile radio | Type | Handheld | |
| Dimensions | 150*160*40 mm | Frequency Range | VHF: 136-174MHz UHF: 350-390MHz 400-470 MHz 450-520MHz | |
| Storage Channel | 160 | Talk Range | 3-8KM |
Product Description
Specifications
LUITON DG-M100 DPMR Digital car radioWarranty:1 year
Delivery time: 3days after TT
DPMR Digital Radio
1. VHF:136-174MHz UHF:350-390MHz 400-470 MHz 450-520MHz
2. Better frequency use ratio (6.25KHz)
3. Longer use time of the battery
4. Multi digital codes using for the transceiver
5. Support private call,group call and all call
6. 5 keys can be programmed
7. High/Low voltage alarm
8. Dual-pin for out microphone and earphone
9. Built-in USB interface
10. 160 channels, 50 zones
11. SMS, Noise suppression
12. Manual dialing
13. Remote Kill and revive function
GENERAL | |
Frequency range | VHF: 136-174MHz 400-470 MHz 450-520MHz |
Channels | 160 |
Zones | 50 |
Channel Spacing | 6.25KHz |
Working Voltage | DC13.8V (± 15% ) |
Frequency Stability | ±1ppm |
Antenna Impedance | 50Ω |
Dimension | 150*160*40 mm |
Weight | 1.26kgs |
Transmitter | |
Power output | H:25W / L: 15W |
4FSK modulation | 4K00F1E |
Spurious Emission | -36 dBm≤1GHz/-30 dBm≥1GHz |
Adjacent Channel Power | ≤-70dB |
Vocoder | RALCWI |
Receiver | |
Sensitivity | 3%BER≤0.25uV |
Audio output power | 3W |
Audio Distortion | <5% |
Conduction Radiation | -60dBm |
Environmental Factors | |
Operating Temperature | -20°C—70°C |
Storage Temperature | -40°C—+85°C |
Damp proof | MIL-STD-810C/D/E/F |
Anti Shock &Vibration | MIL-STD-810C/D/E/F |

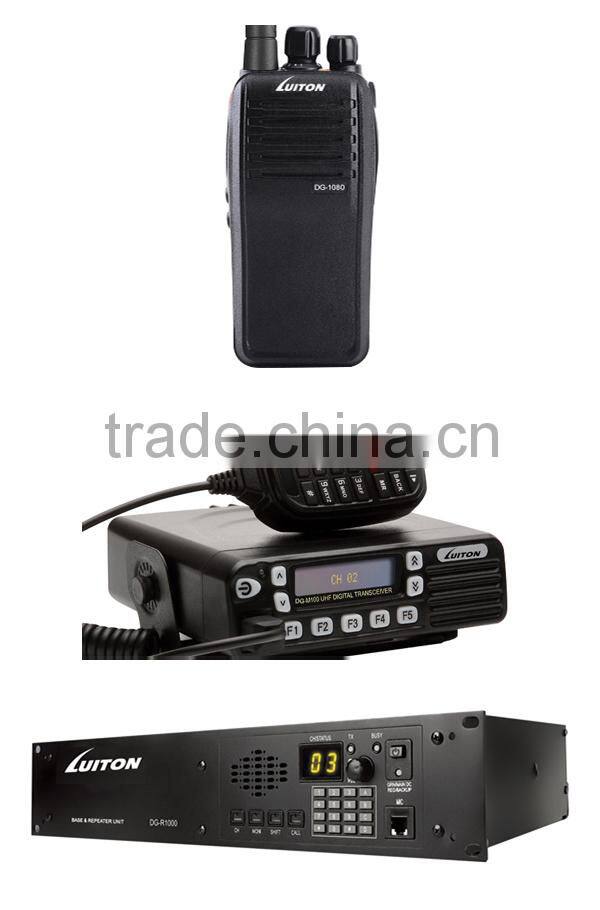

DPMR Digital System DS-001: DG-1080 Handheld radio, DG-M100 Mobile radio, DG-R1000 Repeater.
