Roofing Sheet Double Layer machine popular

Double roller forming machine

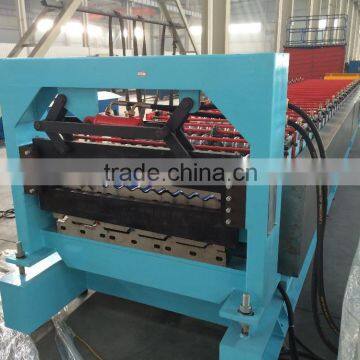

      This  double layer roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, Mitsubishi PLC control system and supporter table.Our company has 10 years experience in making double roller forming machine. we can design different kinds of machine based on customer requirment and  profile .

Profile Drawing: Double roll forming machineTechnical Parameters:

Tile Type:  PPGI/GI /Aluminum coil
Yield stress:  230~300 Mpa
Thickness:  0.3-0.7 mm
Material Width : 1250mm
Quantity of stands :17+25
Max. forming speed (m/min) : 8-12 m/min
Main motor power:  5.5kw+7.5kw
Hydraulic station motor power (KW):  3kw
Voltage : 380V 3 phase 60Hz or buyer's requirement
Controlling system :PLC( Mitsubishi)
Operation Touch : screen and button
Dimension ( Length/Width/Height ) :13000mm*1800mm*1600mm
Container required :2*40inch
Total weight (Kg) about :14 tons

Double roller forming machine Standard Equipment of Machine:

Passive Uncoiler               1pc
Guiding Equipment           1pc
Roll Forming Equipment   1pc
Post Cut Equipment          2pc
Hydraulic Station              1pc
PLC Control Penal           1pc
Supporter Table               2pc

 The double roller forming machine detail :

1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.

2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.

3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

4.Other Elements: from famous suppliers in China

5.Cutter Blade: Cr12 mould steel with quenched treatment.

Process Flow:

Uncoiling -- Sheet Guiding -- Roll Forming -- Pressing --Measuring Length&Shearing -- Sheet to Support Table
