Home > Products > Handheld Radio > BAOFENG Mobile Radio Two Way Radio Uv-5ra Plus

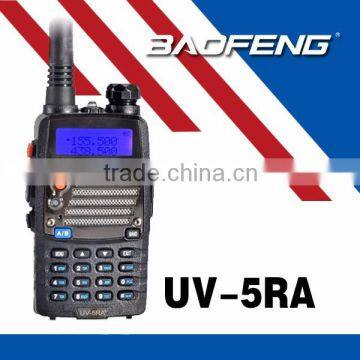

BAOFENG Mobile Radio Two Way Radio Uv-5ra Plus
- FOB XIAMEN
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Baofeng | |
| Model Number | UV-5RA | Type | Handheld | |
| Dimensions | 58*110*35mm | Frequency Range | 136-174 /400-520MHz | |
| Storage Channel | 128 | Talk Range | 3-5Km |
Product Description
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
Dual band handheld transceiver with display function menu on the display “LCD”
-DTMF encoded
-Lithium-ion battery with high capacity
-FM Radio (65MHz-108MHz)
-210 DCS 50 CTCSS
-Alarm function
-Function “VOX”
-Dual Watch Dual reception
-Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz
-Battery Save
-Timer transmission “TOT”programmable
-PC programming
Specification:
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
GENERAL | |
Frequency Range | VHF:136-174 MHz UHF:400-520 MHz |
Channel Capacity | 128 |
Channel Spacing | 2.5/5/6.25/10/12.5/25KHz |
Operated Voltage | 7.4V |
Standard Battery | 1500mAh |
Battery Life | 10 hours |
Frequency Stability | 2.5ppm(-20 º C ~+60 º C ) |
Operated Temperature | -30 º C ~+60 º C |
Antenna Impedance | 50 Ω |
Dimensions | 58*110*35mm |
Weight | About 205g |
TRANSMITTER | |
RF Power Output | 4W/1W |
Modulation | F3E |
Spurious Emission | <-60dB |
FM Noise(N/W) | ≥-45dB≥-40dB |
Audio distortion | Less than10.% |
Adjacent Channel Power | ≤-65dB≤-60dB |
Max Frequency Deviation | 5KHz (N)/ 2.5KHz (W) |
Frequency Error | 500Hz |
Modulation Distortion | 0.1KHz (300-3000KHz) |
Transmitting Current | About1.4A |
RECEIVER | |
Sensitivity (12dB SINAD) | -122dBm |
Spurious Response Rejection | 65dB |
FM Ham & Noise | 40dB(N)/45dB(W) |
Audio Power Output @ 8Ω | 1W |
Audio Distortion | ≤10% |
Receiver Current | ≤380mA |
Photo:
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
Dual Band BAOFENG Mobile radio two way radio uv-5ra plus
