Best quality type steel profile c z purlin roll forming machine for structure
- 10 Set / Sets per Month
- Shanghai or Ningbo
- T/T
You May Like
-
Favorites Compare New style c/z interchangeable Steel Frame & Purlin Machines
-
Favorites Compare New style C100-300/Z100-300 interchangeable Steel Frame & Purlin Machines
-
C100-300/Z100-300 interchangeable Building Materials c shaped purline machine automatically
-
C100-300/Z100-300 interchangeable C Z section steel purlin machine
-
Galvanized steel structure profile c purlin roll forming machine for sale factory price
-
Europea quality metal profile c purlin roll forming machine for sale factory price
Product Details
| Condition | New | Type | Other, Steel Frame & Purlin Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 10-16m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | c z purlin roll forming machine | |
| Power(W) | 24000-27500 | Voltage | at buyer's requirement | |
| Dimension(L*W*H) | 8500*1100*1450mm | Weight | 10,000kg | |
| Certification | CE | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
c z purlin roll forming machineHigh efficiency
Reliable working
Low energy consumption
c z purlin roll forming machine
c channel steel roll forming machine
steel profile c z purlin roll forming machine
C Z purlin roll forming machine are made from hot/ cold rolled steel strips, and straightened, hole punched,
cut to length, and roll formed by WLFM series steel purlin roll forming machine. Through changing
spacing sleeves, the machine can change different types/sizes of purlin.
Technical parameters:
Suitable material | steel strip |
| Main motor power | 30KW |
| Hydraulic station power | 25KW |
| Thickness of material | 1.0-3.2mm |
| Electric tension | at buyer's requirement |
| Material of roller die | GCr15 bearing steel with quenched treatment |
| Material of cutting die | Cr12 mould steel with quenched treatment |
| Working speed | 10,000 - 16,000mm/min |
| Quantity of stands | about 16 groups |
| Fixing dimensions | 8,500 x 1,100 x 1,450mm |
| Weight | about 12,000kg |
| Hydraulic pressure | 18 - 20MPa |
| Controlling system | PLC |
1. Main machine
2. Manual/hydraulic decoiler (3-5 tons)
3. Hydraulic pre-cutting for easy operation(for post-punching&cutting type)
4. Hydraulic system
5. PLC computer controlling system
6. Forming cutter
7. Run out table (2 units)
8. User's manual in English
Working Flow
Uncoiling→Sheet Guiding→Straightening &Levelling→(Hole Punching)→Measuring Length &Shearing→Roll Forming→Sheet to support table.

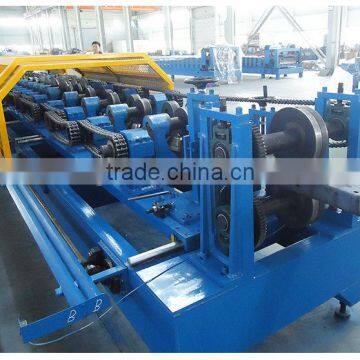

Pictures of machine
PLC computer controlling system
Hydraulic uncoiler
Production and assembly diagram
Package drawing
CE and ISO certification
We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 60 days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 60USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
