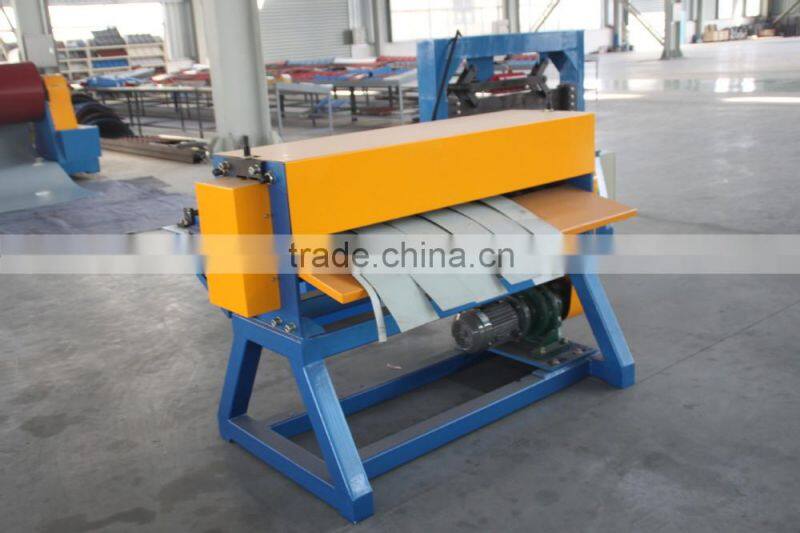

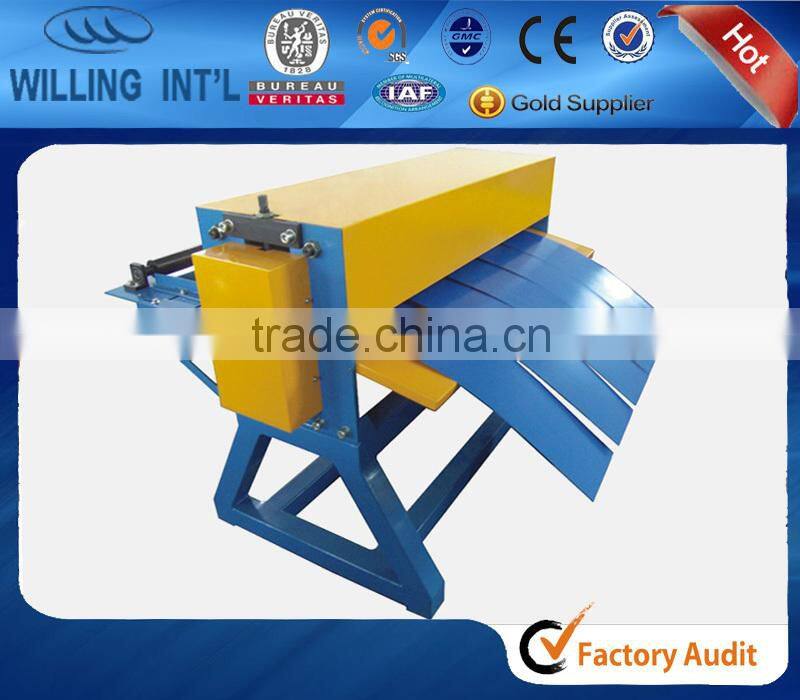

Steel Coil Slitting Machine With Uncoiler

FOB Price

US$ 3,400 - 3,600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	WILLING
Model Number	WLYX41-203-406		After-sales Service Provided	Engineers available to service machinery overseas

Company Information

used steel slitting machines

Technical parameters:

Material Spec	Color-coated/Galvanized,/Alu-zinc steel sheet
Material yield stress	235-345Mpa
Coil thickness	0.25-1.00mm
Coil width	914mm;1000mm;1200mm;1220mm and 1250mm
Working speed	10 ~ 15m/min
Power requirement	Main motor power 3Kw
Decoiler	5 tons hydraulic decoiler with coil dia. 508mm
Slitting blades	max.9 set blades
Max.slitting strips	10 strips

Material of main equipments:

Roller Material

High grade No. 45 forged steel, with digital-controlled

procession, panted with hard chrome

Cutter blade:

Cr12 mould steel with quenched treatment, hardness

HRC55-62

Electric elements:

Control system PLC panel, transducer and touch screen

originally imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Standard equipments of machine:
