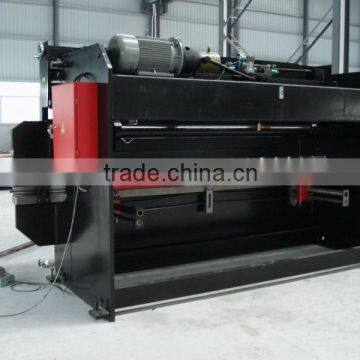

CE Standard Low Price Manual Sheet Metal Bending Machine Export

       manual sheet metal bending machine

The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.

Mechanical stop nuts ensure stable and reliable positioning accuracy.

Torque shaft is designed of rigidity with high solidness, assuring the synchronized movements of ram.

The ram’s stroke and the back gauge’s position can be speedily adjusted by motor and fine adjusted by handle.

Function Characteristics:

1.With full steel welding steel structure,libration frequency eliminate inner-pressure,strong and stable;

2.Wrenched axis force in-phase mechanical block to keep balance with high precise;

3.Intergrated hydraulic system,up-transmission of stroke,broad adjusted range of speed,stable in working station;

4.Backgauge and stroke transmission with electromotion adjustment,manual inching adjust and with

digital display;

5.The adjusting unit of stroke range and oil tank are combined together.But separated in work to

improve sealing quality;

6.Equipped with inserted length compensated unit on upper mould;

7.Bending machine,over than 250T equipped with hydraulic oil or electrity servo in-phase unit,and with upper and down work table of length compensated unit,it can install several sets,

and work together.

Technical Specification

Pressing force:              5000 KN

Worktable Length:        4000

Distance between uprights: 3020

Ram stroke:                 300mm
Opening height             645 mm

Throat depth                400mm

Approach speed:          70 mm/sec.
Working speed:            10 mm/sec.
Return Speed:               35 mm/sec

Main Motor                  37kw

Motor for back gauge        0.55kw

Motor for ram adjust          0.55kw

Overall Dimension          4100×2400×3500 mm

Weight:                          39,900 kg

FAQ

1.  Q: You are Manufacturer or trading company?
     RE: We are 100% manufacturer with 25 year's manufacturing experience.

2.  Q: Can you do OEM service?
    RE: Yes, we can. The color can be customized. Your own logo can be used on the machine.

3.  Q: Do you accept LC payment?
     RE:  Yes. Normally, our payment is 30% +70% TT. LC payment is also acceptable.
