Double Layer IBR Roof Sheet Roll Forming Machine
USD $33,000 - $40,000
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Shanghai or Ningbo
- T/T
You May Like
-
high quality corrugated roof sheet making machine/roof panel roll forming machine
-
Half Round Gutter Roll Forming Machine
-
Hot Sale Africa Durable IBR Used Metal Roof Panel Roll Forming Machine
-
Glazed Tile/ ridge cap/metal roofing roll forming machine
-
high-rib rib lath machine
-
Expanded metal rib lath production line
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 20-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | WLDL | |
| Power(W) | 13KW | Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
| Dimension(L*W*H) | 1.5*1.5*11 M | Weight | about 10000Kg | |
| Certification | CE,ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

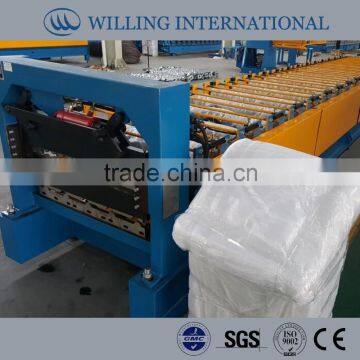

Double Layer IBR Roof Sheet Roll Forming Machine
Product Description
WLDL double Layer IBR Roof Sheet Roll Forming Machine consists of uncoiler and its base, infeed guides,fixed position driven forming stations,
shearing device,hydraulic station,PLC control console and so on.Our company has hundreds of profile modle for this series
roll forming machine,such as WLDL66-77, WLDL50-375, WLDL18-76, and etc.
We can design the machine as your sample or profile
Main Technical Parameters:
| Model | WLDL | |
| Material | Type | Pre-paited steel sheet |
| Thickness | 0.2-0.7 mm | |
| Yield stress | 230-550 Mpa | |
| Max.Forming speed | 8-12 m/min | |
| Roller material | 45#Steel with chrome treatment | |
| Roller driven type | Chain transmission | |
| Controller | PLC | |
| Operation | Touch screen and button | |
| Hydraulic system pressure | 12 Mpa | |
| Hydraulic station motor power | 5.5 KW | |
| Main motor power | 7.5KW | |
| Total power | 13 KW | |
| Total weight | About 10000 Kg | |
| Index error of length | 10m±2mm | |
| Voltage | 380V 3 phase 60Hz or at buyer's requirement | |
Working Flow:
Decoiling the sheet------Sheet guiding------Roll forming------Pressing the panel------Measure length------Cutting the panel------Panels to the supporter
Standard Equipment of Machine:
| 5 tons manual un-coiler | 1 |
| Pre-cutting device (manual)-optional | 1 |
| Guiding equipment | 1 |
| Film covring equipment | 1 |
| Roll forming equipment | 1 |
| Pressing equipment | 1 |
| Post-cut equipment | 1 |
| Hdraulic station | 1 |
| PLC control panel | 1 |
| Support tables | 2 |
Component and Function:
| Coil Feeding Equipment | Consists of one uncoiler with capacity of 5000kgs and its base. The steel sheet is manually fed to the guiding equipment under the function of friction and traction |
| Guiding Equipment | Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment. |
| Mainframe Transmission | Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet. |
| Roll forming system | The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool. |
| Pressing equipment | After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful. |
| Post Cut Equipment | The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. |
| Hydraulic Station | Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power. |
| PLC Control Panel | The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically. |
Profile Drawings :
Material of Main Equipment:
| Roller Material | High grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm |
Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
| Oil tank | model of hydraulic system:CB-E310 |
Packaging & Shipping
Main body of machine nake loaded into container, covered with plastic film, spare parts in wooden box.
