RIB LATH MACHINE

Rib lath is ideal for refurbishing those damaged or aged masonry walls.When a key for rendering is not certain,due to disintegration or softening of the wall face,the lath should be fixed with apexes of ribs against the wall,and edge ribs of sheets connected each other;it should be wire-tied every 15cm and ends of sheets be lapped which not less than 2.5mm,and nesting ribs are securely tied together.Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.

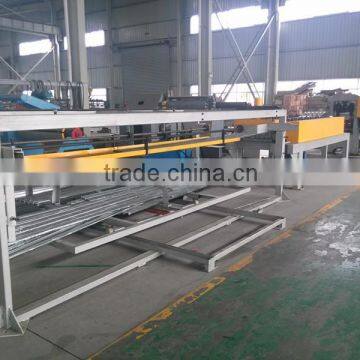

The full production line includes as follow:

1.one of the sample decoiler or automatic hydraulic decoiler.

2.one set of punch machine .

3.two pieces of pinching moulds.

4.one set of expanded and forming machine.

5.one set of cutting device.

6. one set of automatic stacker or simple run out support table.

7.one set og PLC console.

8.one set of hydraulic station.

worlk flow:

De-coiling--punching--feeding--Expand&Forming--shearing the rib lath to cut to length--Run out table

1.Decoiler Parameter

1.Inner diameter: 508/610mm.

2.Outer diameter: 1250mm.

3.Material width: as per requirements.
4.Material thickness: 0.25-0.65mm.
5.Loading weight: 50000 kgs.
6.Servo motor: 1.5 kw.
7.Machine size: 1120*600*1500mm.
8.Weight: 1000 kgs.

2.Main Punching Machine Parameter

1.Working speed: 450-500 strokes/minute.
2.Feeding distance: 17mm.
3.Width: 500mm or as per requirements.
4.Thickness: 0.25-0.65mm.
5.Material: galvanized steel.
6.Eccentricity: 6mm.
7.Motor: 5.5kw
8.Mold: one set,upper side and lower side.
9.Machine size: 1750*900*1127mm
10.Weight: 1200 kgs.
11.Lubricating: center control
12.Punching mould material: TC53
13.Main shaft: 100mm

3.Automatic Controller for The Production Line Parameter

1.Control method: cut to length by PLC
2.Electric element: Mitsubishi,Japan.

4.Rib Lath Forming and Cutting Machine Paramater

1.Forming speed: 10-20m/minute.
2.Drive mode: chain and gear.
3.Rolling stations: 9 stations.
4.Rolling thickness: 0.25-0.65mm.
5.Feeding width: 500mm or as per requirements.
6.Motor power: 5.5 kw.
7.Forming mold material: 45# steel.
8.Machine size: 2200*705*760mm.
9.Weight: 2000 kg
10.Hydraulic cut: 7MPA 40L Tank.
11.Post-cut mode: cut to length.

5.Automatic Stacker Table Paramete

1.Collectomg table: dual heads.
2.Cut length: 3m.
3.Width: 500-1250mm.
4.Loading weight: 2000 kgs.
5.Machine size: 3500*2900*300mm.
6.Machine weight: 800kgs.
