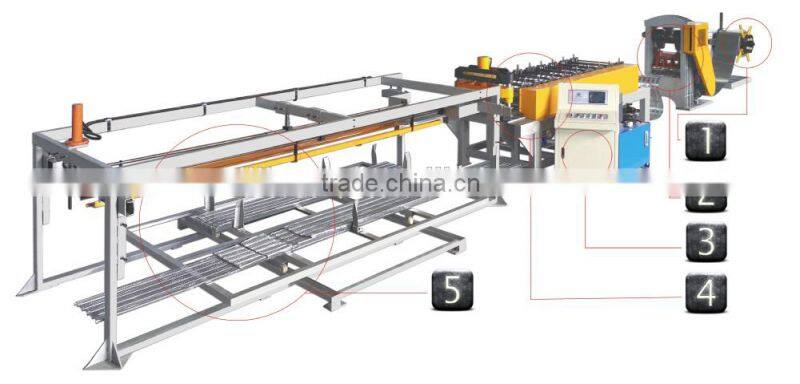

Good Quality Rib Lath Machine Line

RIB LATH MACHINE

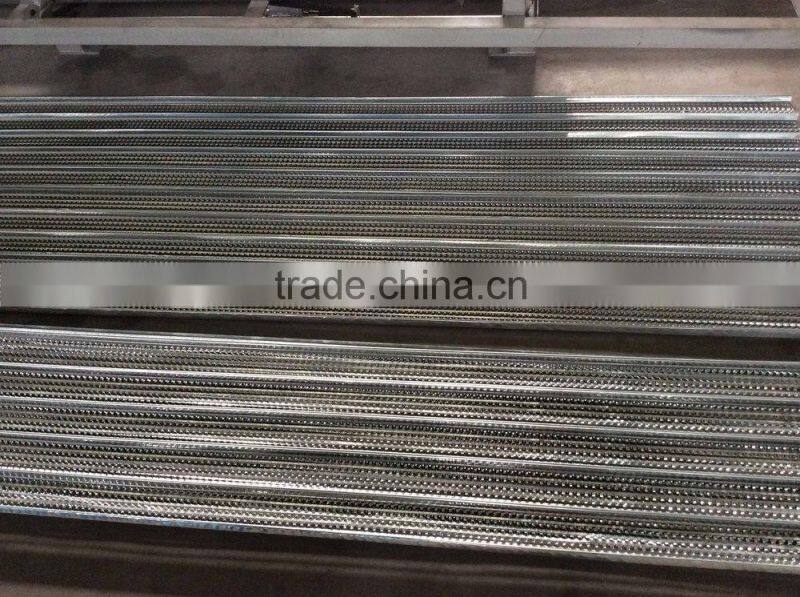

Rib lath is a kind of expanded metal lath stiffened with longitudinal ribs.The furring design of the mesh provides efficient

background plaster for construction of partition,suspended ceilings and refurbishment works.The advantage of ribbed lath

over metal lathing,that is supporting centers,which can be increased or widened.
Rib lath is ideal for refurbishing those damaged or aged masonry walls.When a key for rendering is not certain,due to

disintegration or softening of the wall face,the lath should be fixed with apexes of ribs against the wall,and edge ribs of

sheets connected each other;it should be wire-tied every 15cm and ends of sheets be lapped which not less than 2.5mm,

and nesting ribs are securely tied together.Stainless steel fixings should be used at sufficient intervals to hold the lath

firmly in position.

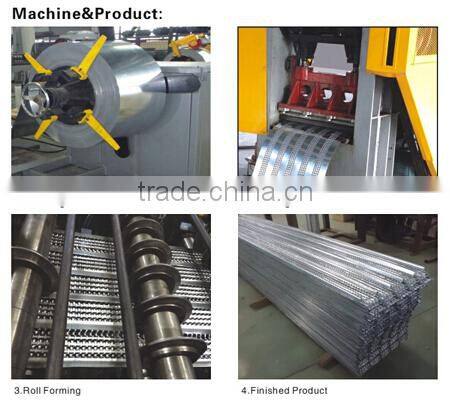

1.Decoiler Parameter

1.Inner diameter: 508/610mm.

2.Outer diameter: 1250mm.

3.Material width: as per requirements.
4.Material thickness: 0.25-0.65mm.
5.Loading weight: 50000 kgs.
6.Servo motor: 1.5 kw.
7.Machine size: 1120*600*1500mm.
8.Weight: 1000 kgs.

2.Main Punching Machine Parameter

1.Working speed: 450-500 strokes/minute.
2.Feeding distance: 17mm.
3.Width: 500mm or as per requirements.
4.Thickness: 0.25-0.65mm.
5.Material: galvanized steel.
6.Eccentricity: 6mm.
7.Motor: 5.5kw
8.Mold: one set,upper side and lower side.
9.Machine size: 1750*900*1127mm
10.Weight: 1200 kgs.
11.Lubricating: center control
12.Punching mould material: TC53
13.Main shaft: 100mm

3.Automatic Controller for The Production Line Parameter

1.Control method: cut to length by PLC
2.Electric element: Mitsubishi,Japan.

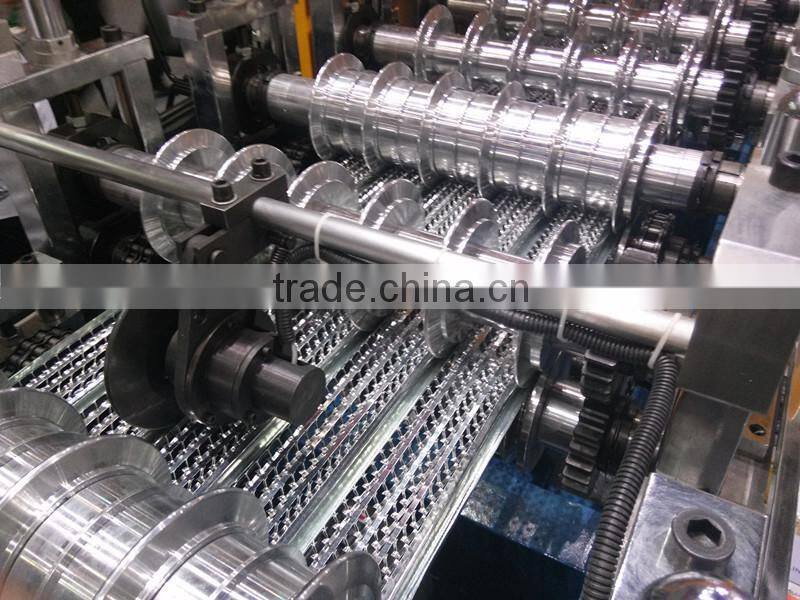

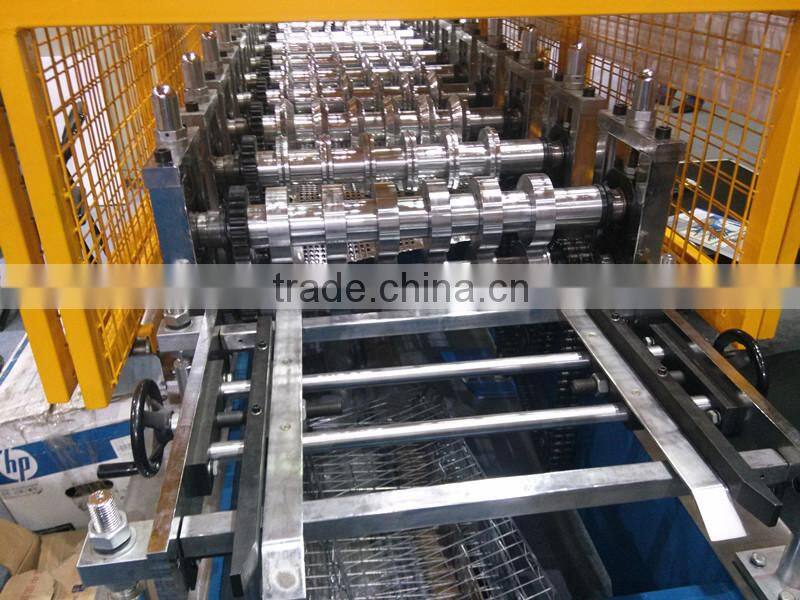

4.Rib Lath Forming and Cutting Machine Paramater

1.Forming speed: 10-20m/minute.
2.Drive mode: chain and gear.
3.Rolling stations: 9 stations.
4.Rolling thickness: 0.25-0.65mm.
5.Feeding width: 500mm or as per requirements.
6.Motor power: 5.5 kw.
7.Forming mold material: 45# steel.
8.Machine size: 2200*705*760mm.
9.Weight: 2000 kg
10.Hydraulic cut: 7MPA 40L Tank.
11.Post-cut mode: cut to length.

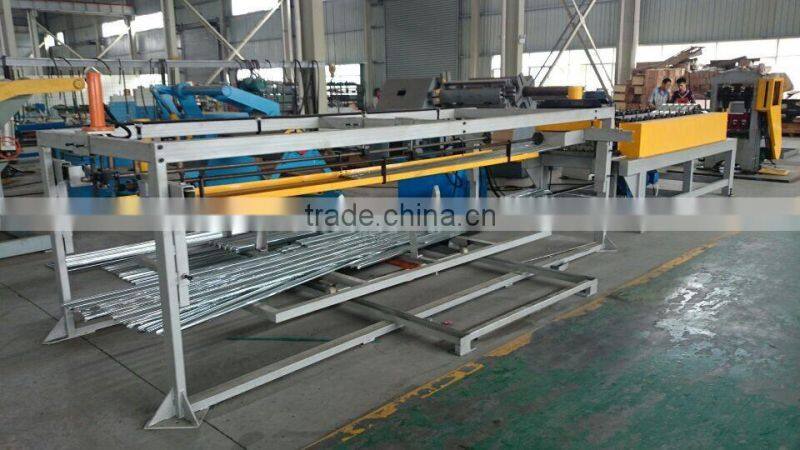

5.Automatic Stacker Table Parameter

1.Collectomg table: dual heads.
2.Cut length: 3m.
3.Width: 500-1250mm.
4.Loading weight: 2000 kgs.
5.Machine size: 3500*2900*300mm.
6.Machine weight: 800kgs.
