30kva/24kw LOVOL 1003G Diesel Generator Sets Price
- Xiamen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | LOVOL | |
| Model Number | DL56GF | Output Type | AC Three Phase | |
| Speed | 1500/1800RPM | Frequency | 50/60HZ | |
| Rated Power | 24KW/30KVA | Rated Voltage | 220/380V,230/400V;220/440V,240/480V | |
| Rated Current | 55AMP |
Product Description
Specifications
1. For industry2. Low oil consumption
3. Convenient to operate
4. High reliability, easy maintenance
30kva Lovol Diesel Generator Set data
| Manufacturer: | Disaier Electrical Equipment Co., Ltd |
|---|---|
| Prime Power | 24kw/70kva |
| Frequency/Speed | 50hz/1500rmp |
| Dimension (L*W*H) | 1620×610×1380mm |
| Net weight | 610kg |
| Engine Model | 1003G |
| Alternator Model | Leroy-somer |
| Controller model | Smartgen HGM6120K |
Fuel consumption of 100% load | 6.3 Litres/h |
Fuel consumption of 75% load | 4.7 Litres/h |
Voltage regulation rate | ≤±1% |
Random voltage variation | ≤±1% |
Random frequency variation |
≤±0.5% |
Lovol Engine data
| Brand / Model: | LOVOL, 1003G, 4-cycle |
| Air Intake System: | Natural Aspirated |
| Fuel System: | Direct type fuel pump |
| Cylinder Arrangement: | " L" type, 3-cylinder |
| Delivery Capacity: | 3L |
| Bore and Stroke: | 100*127(mm) |
| Compression Ratio: | 16.5: 1 |
| Rated Hz/RPM: | 50Hz/1500rpm |
| Max. Standby Power at Rated: | 30.8KW/41.9HP |
| Governor Type: | E |
| > Exhaust System | |
| Exhaust Gas flow: | 4.27m 3 /min |
| Exhaust Temperature: | 410 centigrade |
| Max Back Pressure: | 10 kPa |
| > Air Intake System | |
| Max Intake Pressure: | 6.25kPa |
| Consumption: | 1.98 m3/min |
| Air Flow: | 136 m3/min |
| > Fuel System | |
| 100%( Prime Power) Load: | 6.3 L/h |
| 75%( Prime Power) Load: | 4.7 L/h |
| 50%( Prime Power) Load: | 3.2 L/h |
| > Oil System | |
| Total Oil Capacity: | 11 L |
| Oil Consumption: | ≤ 4 g/kw. h |
| Engine Oil Tank Capacity: | 9L |
| oil Min-Pressure at Rated RPM: | 350kPa |
| > Cooling System | |
| Total Cool fluid Capacity: | 20 L |
| Thermostat Temperature: | 82-93centigrade |
| Max Water Temperature: | 104 centigrade |
Alternator data
| Brand / Model: | Leroy somer, Stamford or Marathon |
| Number of Phase: | 3 |
| Connecting Type: | 3 Phase and 4 Wires, “ Y” type connecting |
| Amount of Bearing: | 1 |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Altitude: | ≤ 1000m |
| Rated Hz/RPM: | 50Hz/1500rpm |
| Exciter Type: | Brushless, self-exciting |
| Voltage control mode: | AVR(Automatic Voltage Regulator) |
| Insulation Class, Temperature Rise: | H/H |
| Radio interference: | Meet the BS800 and VDE G, N |
| Telephone Influence Factor (TIF): | < 50 |
| Telephone harmonic Factor (THF): | < 2% |
| Steady Voltage adjustment rate: | ≤ ± 1% |
| Generator Capacity: | 25KW/31KVA |
| Generator Efficiencies: | 86.20% |
| Standard Temperature Rise: | 125 -163° C Continuous |
| Cooling method: | Direct drive centrifugal blower fan |
| Air Cooling Flow: | 0.15 m³ /s |
Generator Supply Scope
1.Engine, alternator, radiator, auto control panel.
2.Base frame, base fuel tank,Flexible pipes, flange, exhaust silencer .
3.Battery, battery charger, battery wires, internal cables, circuit breaker.
4.Manual books of engine, alternator, genset, control panel, wires diagram
Controller :Smartgen brand HGM6120K (standard)
Feature:
- protection: Automatic start/stop, load transfer and alarming of generator;
- Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select “user defined” sensor via entering 8 point curves;
- Display of generator cumulated electric energy;
- Security password-protected programming levels.
- Several crank success conditions are optional;
- Power supply range is wide, accommodating to different starting battery voltage environments;
- All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;
- Built-in watch dog can never be dead halt, ensuring smooth program execution
Parameter:
Generator Volts, Amps, Frequency, active power, apparent power , power factor, Engine Oil Pressure, battery volt, Engine speed, engine temperature, Engine Hours Run, fuel level.
Protection:
1.Low Oil Pressure 2.High voltage and low voltage 3. Volt adjuster and frequency adjuster
4.Overspeed 5. Emergency stop 6.Fail to start 7. High Engine Temperature

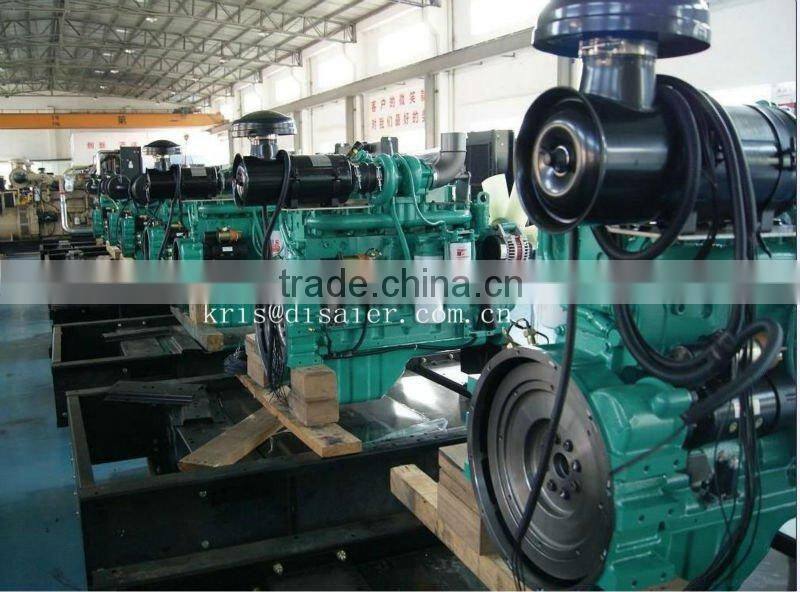

cummins diesel genset

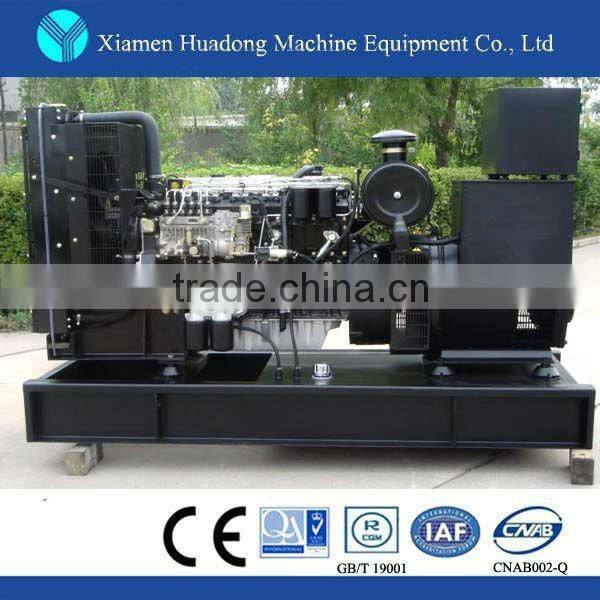

Lovol genset
Genset in stock

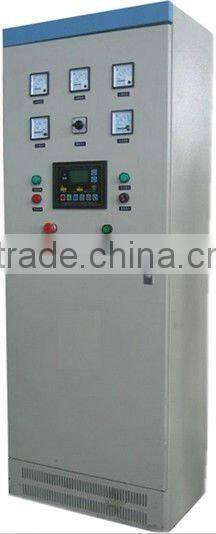

ATS FOR OPTION

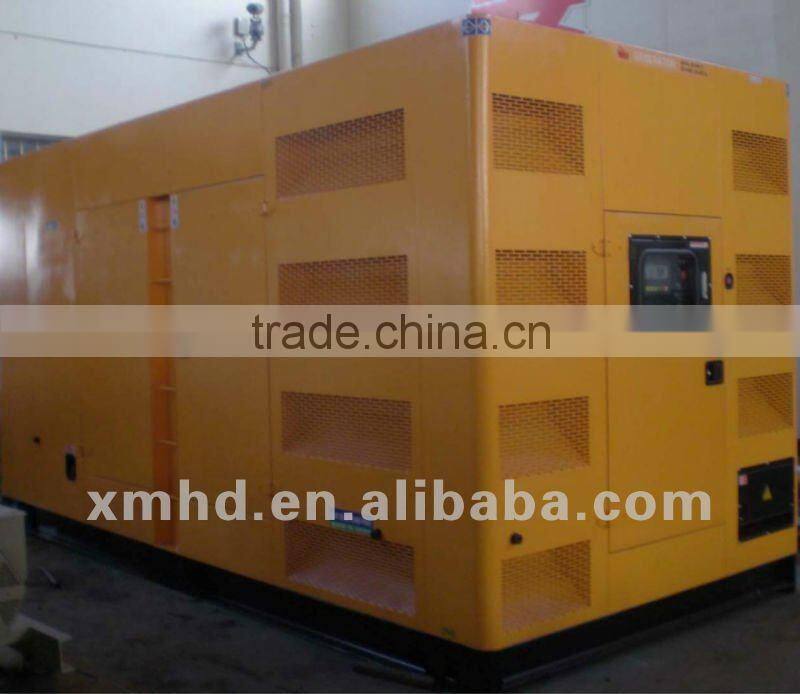

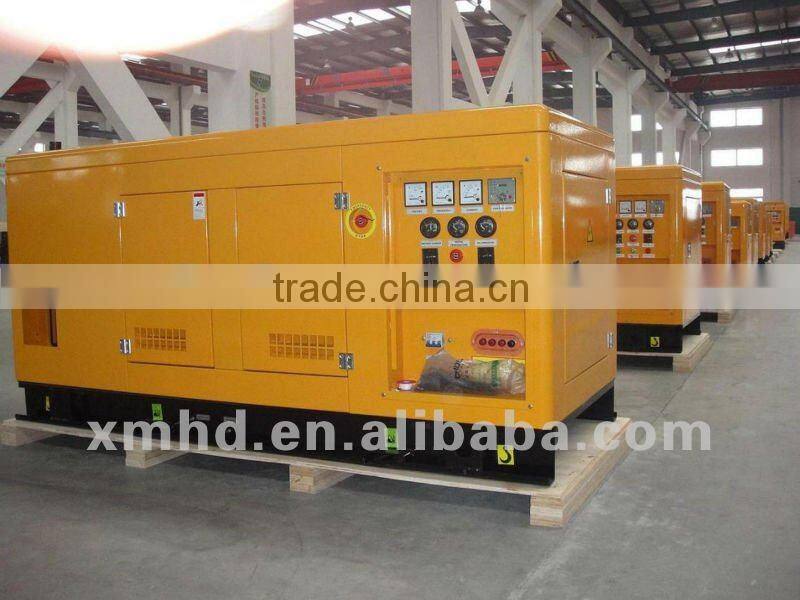

canopy for option (soundproof ,weatherproof)

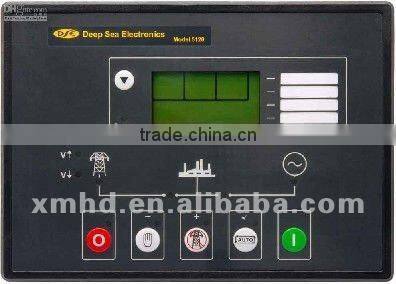

DSE controller for option

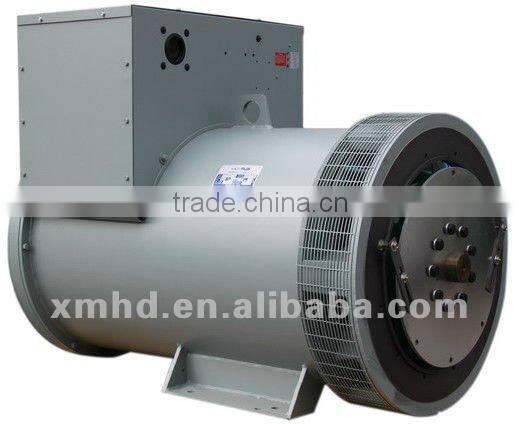

Marathon alternator
CE certificate approved
ISO9001 Approved
ISO1004 Approved
Leroy-somer OEM
ENGGA OEM
CE and IAF
Our promise
Pre-sales guidance:
Disaier Company professional technician responsible for users’ technical advisor question, make sure the configuration, features, optional items etc.
After-sales service:
Customers supreme, service-oriented
1 year or 1,500 running hours Quality Warranty, whichever comes first.
24 hours after-sales service telephone helpline. Within guarantee period if parts impaired, Cost offer parts (within factory standard parts) and technical.
