2015 tabletop stamping machine made in china

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Pneumatic	Place of Origin	Guangdong, China
Brand Name	YOUYI	Model Number	TUP-10T
Voltage	380V	Weight	300KG
Dimension(LWH)	850550850mm	Certification	ISO9001-2008
Warranty	1 years	After-sales Service Provided	Engineers available to service machinery overseas

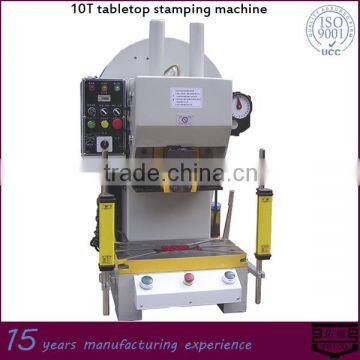

10T tabletop stamping machine

Product Description

Features

1.Body: Adopt the cast iron with high intensity so that they are of strong rigidity,steady and shockproof after annealing treatment.

2.Smart working stroke: Advanced CAD system makes adjustable stroke possible and it can meet muti-purpose.

3.The high torque dry clutch can lower noise,vibrationa nd ensure the precision, long service life and balance;

4.Independent controlling box with liquid crystal screen from Korea, its easy to operate and has versatile functions. It's safe and reliable.

5.Use the TACO TOKOOI solenoid valve from Japan and the FRL are imported.

Optional

Electric Safety Device

Inverter

Specifications

Model	TUP-5T	TUP-10T
Capacity	5T	10T
Slide stroke	2-40mm	50mm
No. of Stroke	200Spm	200Spm
Max. die set Height	180mm	230mm
Load Height Adjustment	50mm	50mm
Table size	*240340mm**	*300500mm**
Bedplate opening	*80110mm**	*230120mm**
Basal area of the sliding block	*12585mm**	*225130mm**
DIA of recess in slide	25.4mm	38.1mm
Motor	1HP	1HP
Weight	300Kg	600Kg
Dimension	*850550850*	*9002001200*
